Security lock for armored door
Mottura 89.4766MA/Q MASTER
Triple with 1/2 turn
double, prepared for European cylinder

Lock with double cylinder; the locks are independent

Triple with reversible half turn operated by the handle square and the lower cylinder

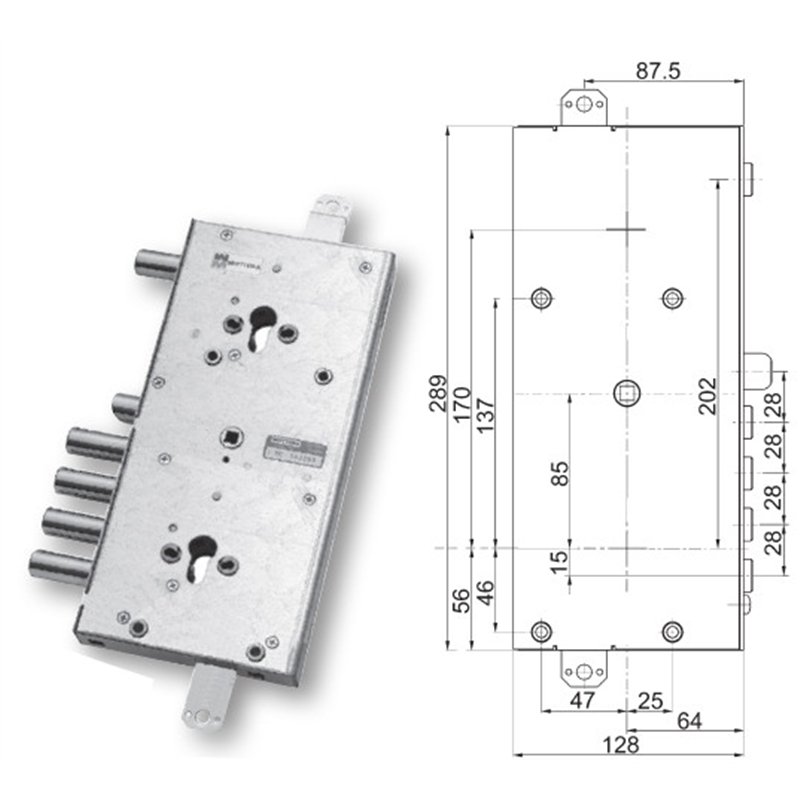

Box size 128x289mm

Key entry mm.63
GEAR movement
Bolt centre distance mm.28
Rod stroke mm.20
Bolt stroke mm.29

The lock is equipped with a reinforcement lever on the bolts and a blocking system against forced extraction of the cylinder

RIGHT OR LEFT hand version

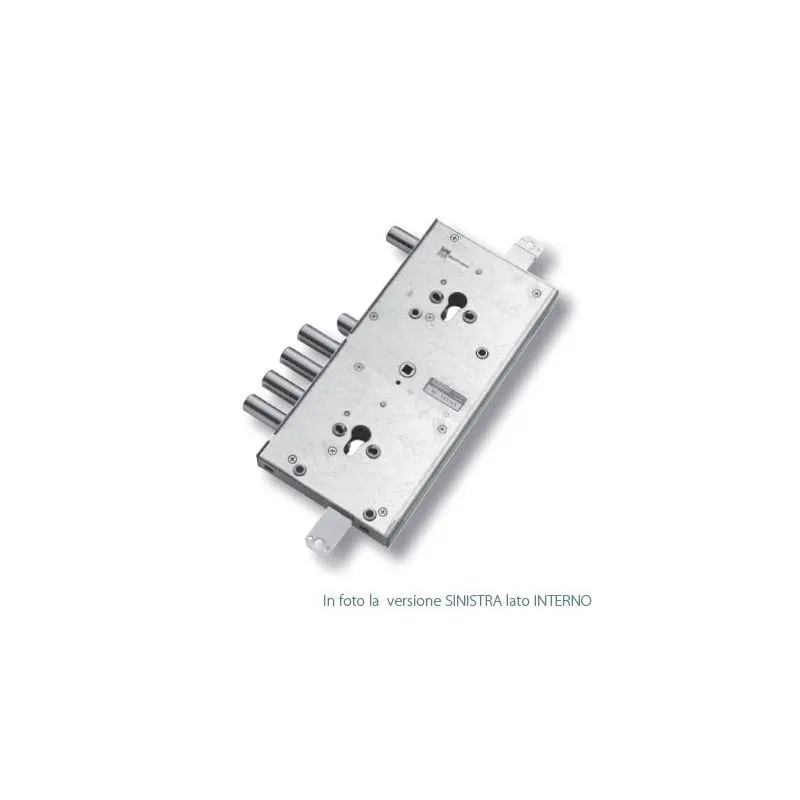

(the photograph refers to the LEFT version)

Important note:

The 'SPARE PART' armoured door locks are SPECIAL items that are produced TO ORDER
Therefore, delivery may take longer than the standard terms
We ask customers to carefully CHECK the dimensions and version of the lock before placing the order as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you with the product choice
Withdrawal is NOT possible on this product
