Description

Security lock for armored door
Mottura 89.671FE/B FEDELI
Triple with 1/2 turn
prepared for 'FICHET' type cylinder


Triple with reversible half turn operated by key and handle

  • Box size 136x206mm
  • Key entry mm.63
  • 2 Throws
  • Deadbolt center distance mm.28
  • Rod stroke mm.20
  • Bolt stroke mm.40+10mm
  • Bushings diam.6mm

THE LOCK IS SUPPLIED WITHOUT CYLINDER

COMPATIBLE WITH MOTTURA CYLINDERS WITH 'FICHET' CONNECTION 103.20.F28D

RIGHT OR LEFT HAND version

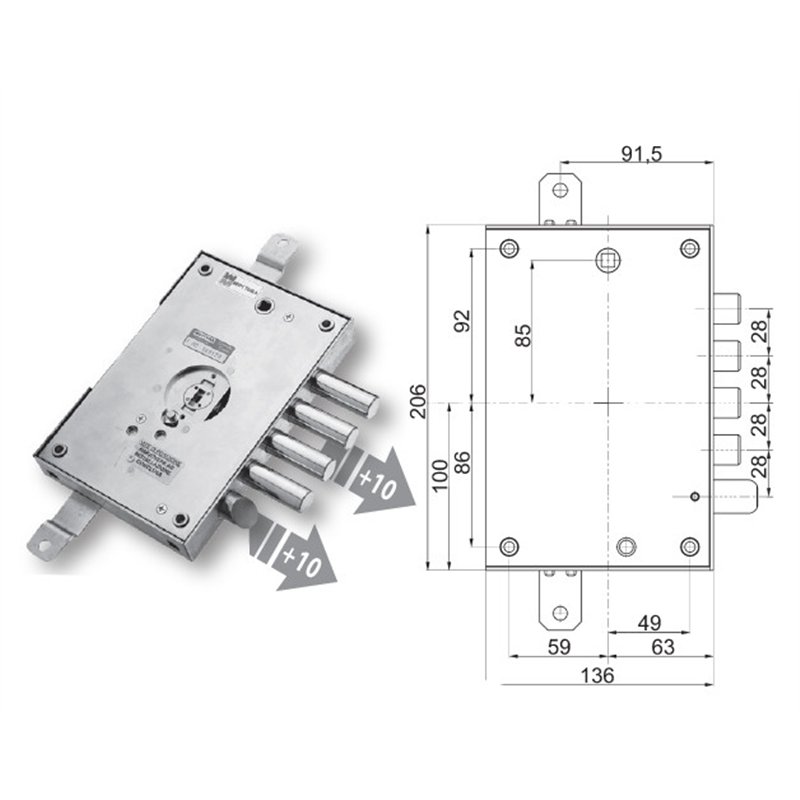

(the photograph refers to the LEFT version)

Important note:
'SPARE PART' armored door locks are SPECIAL items that are produced ON ORDERING
Therefore, delivery may take longer than standard terms
We ask customers to carefully CHECK the dimensions and version of the lock before proceeding with the order as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you choose the product
Withdrawal CANNOT be requested on this product

Product Details
103.89.671FED/B
