Security lock for armored door
Mottura 89.859G/1Q GREG
Triple with 1/2 turn
double, prepared for European cylinder

Lock with double cylinder; the lower one controls the half turn, the upper lock block and the latch

Triple with reversible half turn operated by the handle square and the upper cylinder

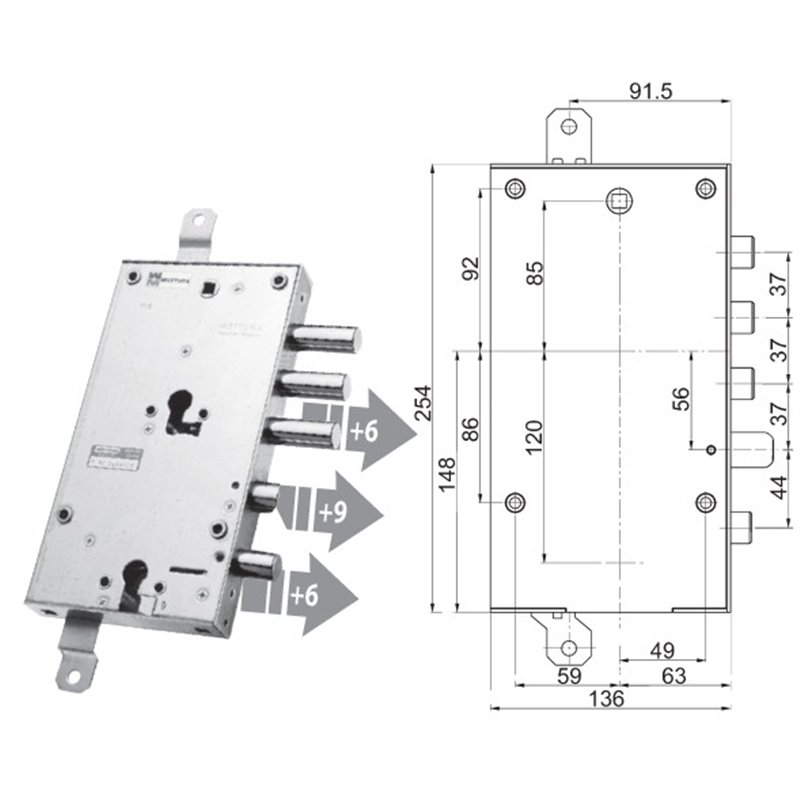

Box size 162x254mm

Key entry mm.63
Bolt centre distance mm.37
Rod stroke mm.20
Bolt stroke mm.29 (+6mm)

The lock is equipped with a reinforcement lever on the bolts and a blocking system against forced extraction of the cylinder

RIGHT OR LEFT hand version

(the photograph refers to the RIGHT version)

Important note:

The 'SPARE PART' armoured door locks are SPECIAL items that are produced TO ORDER
Therefore, delivery may take longer than the standard terms
We ask customers to carefully CHECK the dimensions and version of the lock before placing the order as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you choose the product
Withdrawal CANNOT be requested on this product
