Security lock for armored door
Mottura 89.8571 ALLMET
Triple with 1/2 turn
prepared for European cylinder

Triple with half turn activated by the follower and the key

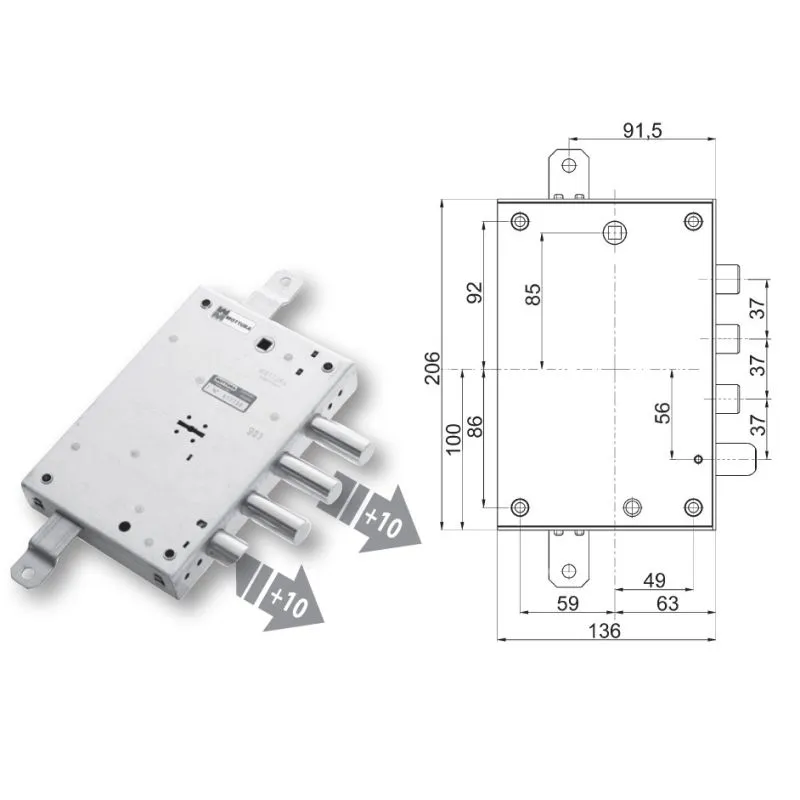

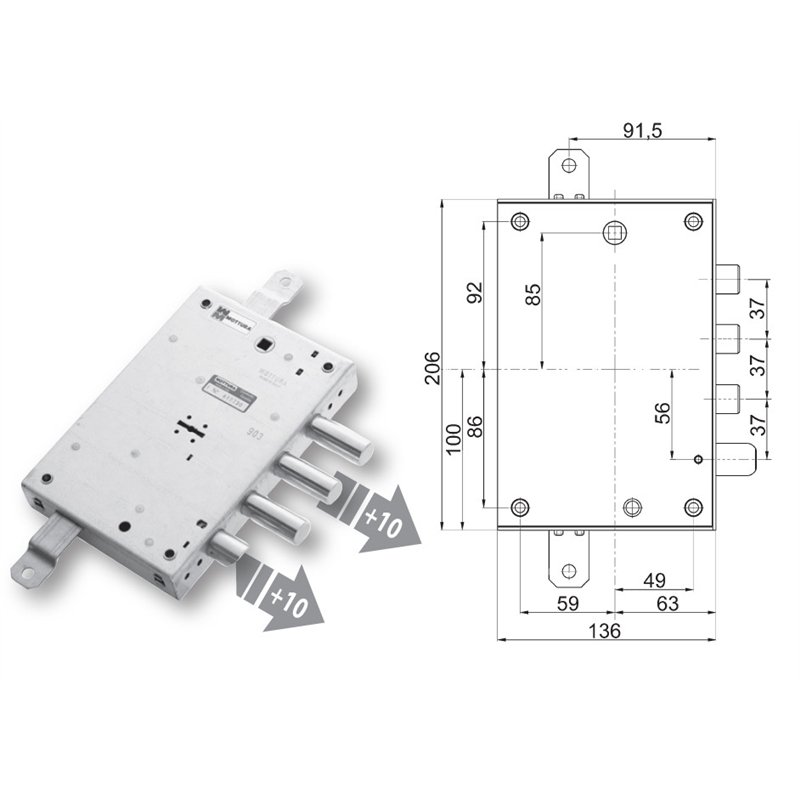

Box size 136x206mm
Keyset mm.63
2 send
Distance between bolts mm.37
Rod stroke mm.20
Bolt travel mm.40 (+10mm)
Reversible 1/2 turn

The lock is equipped with a reinforcing lever on the bolts and a locking system for forced extraction of the cylinder

LEFT OR RIGHT hand version

(the photograph refers to the RIGHT version)

Important note:
'SPARE PARTS' armored door locks are SPECIAL items that are produced TO ORDER
Therefore delivery may take longer than the standard terms
We ask customers to carefully CHECK the dimensions and version of the lock before proceeding with the order as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you choose the product
The WITHDRAWAL cannot be requested on this product
