Security lock for armored door
Mottura 89.4388D/S7MB
Triple with 1/2 turn
prepared for European cylinder

• Triple with half turn
• Half turn operated by handle, upper and lower cylinder
• Lower lock with independent night stop and semi-opening
• Gear movement
• Box size 136x254mm
• Key backset 63 mm
• 2 sends
• 21mm stroke (adjustable projection) with upper lock block
• Deadbolt center distance 37 mm
• Rod travel mm.20
• Bolt travel mm.29

The lock is provided with a reinforcing lever on the bolts

RIGHT OR LEFT hand version

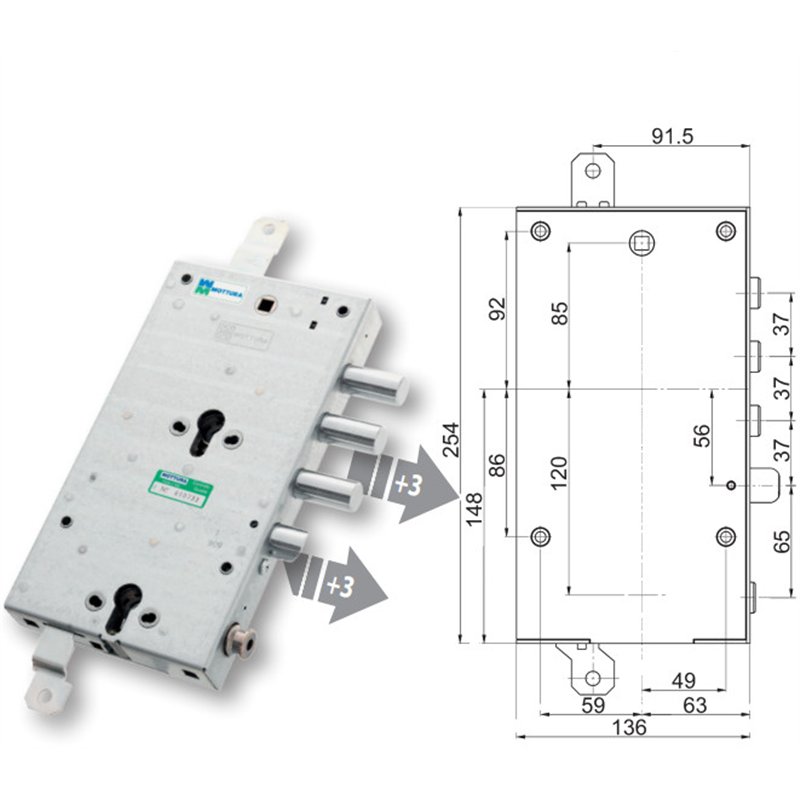

(the photograph refers to the RIGHT version)

Important note:
The 'SPARE' armored door locks are SPECIAL items that are produced TO ORDER
Therefore delivery may take longer than standard terms
We ask customers to carefully CHECK the dimensions and version of the lock before proceeding with the order as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you choose the product
WITHDRAWAL CANNOT be requested on this product
