Security lock for armored door
Mottura 89Y916MAS MASTER
Triple with 1/2 turn

Multi-system

Multi-system lock with service lock by means of a European cylinder that controls the half turn and the lower bolt

The two systems are independent

Triple with extended reversible half turn operated by the handle square and the key

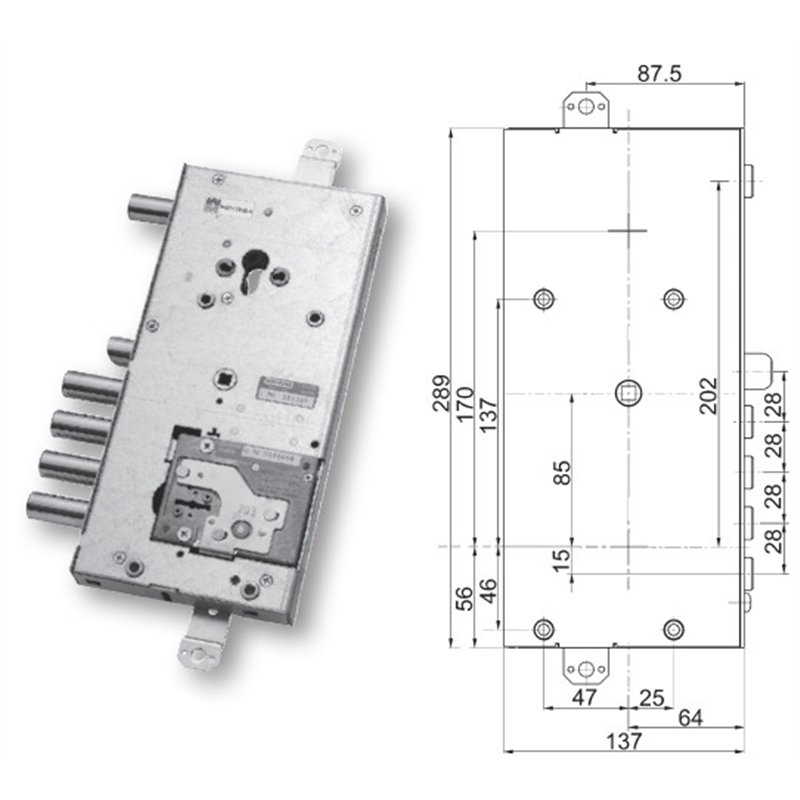

Box size 137x289
GEAR movement
Key entry mm.64
Deadbolt center distance mm.28
Rod stroke mm.20
Bolt stroke mm36
Upper bolt stroke mm. 22
Complete with REPLAY Nucleus
3 double-bit 50mm keys
ANTIDECODUE system against attacks with lock picks and Bulgarian key

The lock does not include the cylinder and the defender

RIGHT OR LEFT hand version

(the photograph refers to the LEFT version)

Important note:
The 'SPARE PART' armored door locks are SPECIAL items that are produced TO ORDER
Therefore, delivery may take longer than the standard terms
We ask customers to carefully CHECK the dimensions and version of the lock before proceeding with the order as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you choose the product
Withdrawal CANNOT be requested on this product
