Security lock for armored door
Mottura 89.8589/PAQ PAN
Triple with 1/2 turn
double, prepared for European cylinder
Lock with double cylinder; the two locks are independent
Triple with reversible half turn operated by the handle square and the upper cylinder

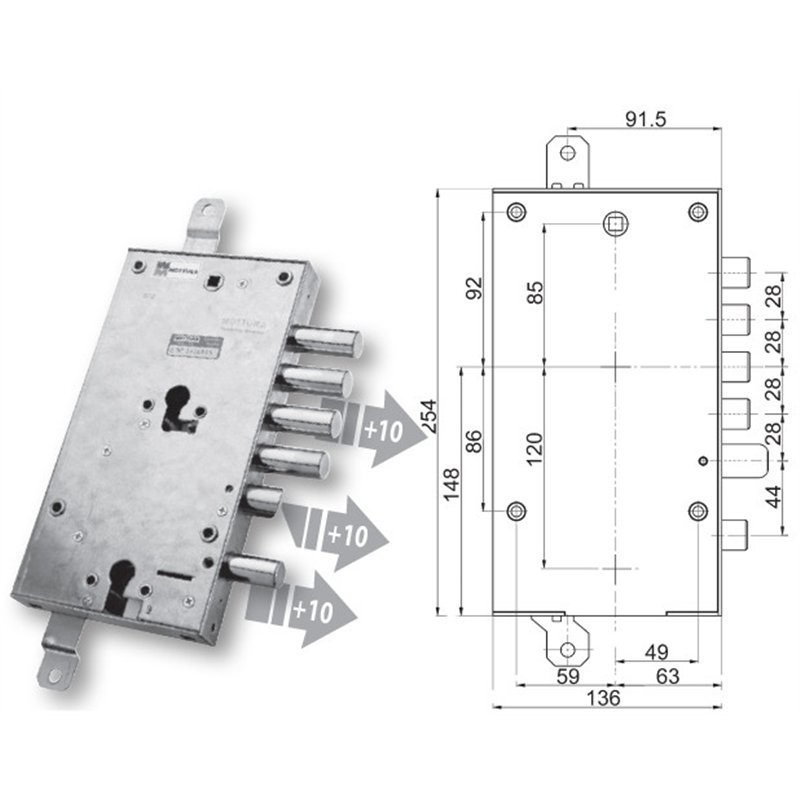

Box size 136x254mm
Key entry mm.63
Bolt centre distance mm.28
Rod stroke mm.20
Bolt stroke mm.29 (+10mm)
RIGHT OR LEFT VERSION

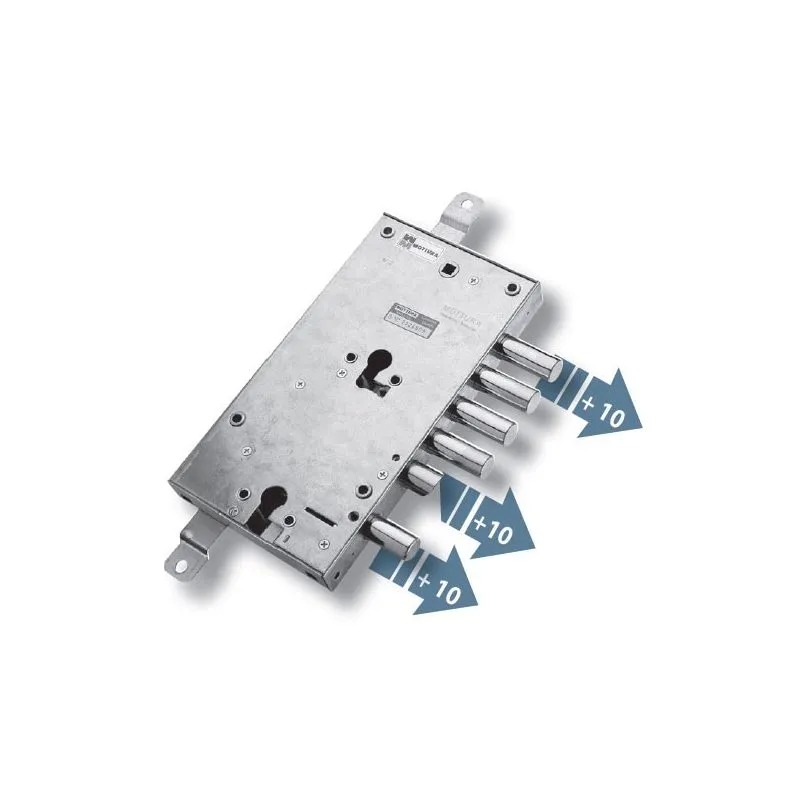

(the photograph refers to the RIGHT version)
Important note:
The 'SPARE PART' armoured door locks are SPECIAL items that are produced TO ORDER
Therefore, delivery may take longer than the standard terms
We ask customers to carefully CHECK the dimensions and version of the lock before proceeding with the order as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you choose the product
Withdrawal CANNOT be requested on this product
