Security lock for armored door
Mottura 89.587 CPC
Triple with 1/2 turn
Multisystem

Multi-system lock with service lock by means of a European cylinder which controls the latchbolt and the lower bolt
The two systems are independent

Triple with extended reversible half turn (+6mm) activated by the follower and key

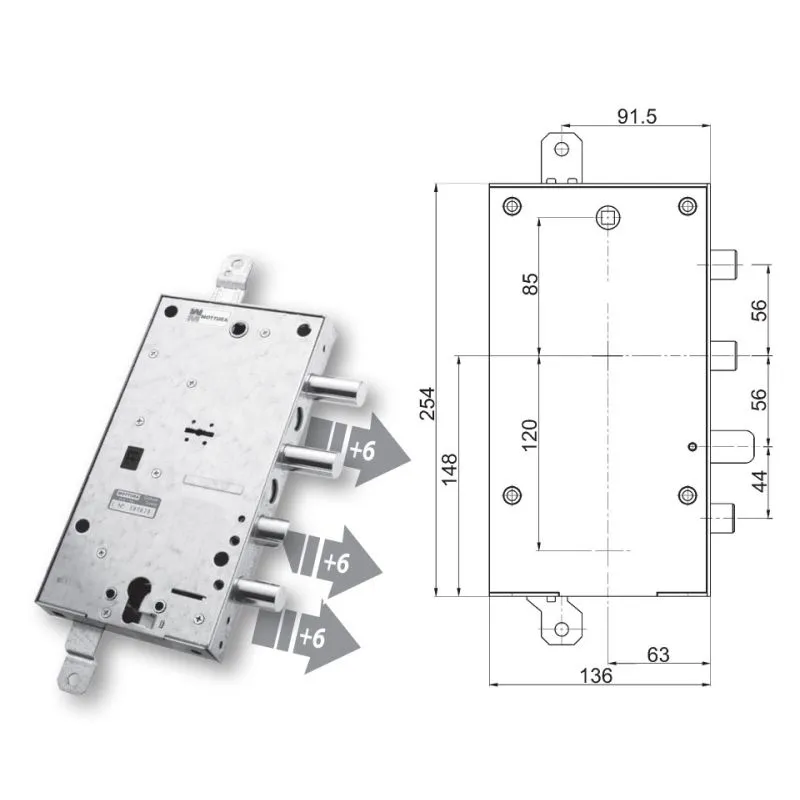

Box size 136x254
Keyset mm.63
Distance between bolts mm.56
Rod stroke mm.20
Bolt travel mm.40 (+6mm)
Lower bolt travel mm. 22 (+6mm)
Fixing with 4 side attachments
3 double bit 50mm wrenches
ANTIDECODUE system against attack with lock picks and Bulgarian key

The lock does not include the cylinder and the defender

RIGHT OR LEFT hand version

(the photograph refers to the RIGHT version)

Important note:
'SPARE PARTS' armored door locks are SPECIAL items that are produced TO ORDER
Therefore delivery may take longer than the standard terms
We ask customers to carefully CHECK the dimensions and version of the lock before proceeding with the order as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you choose the product
The WITHDRAWAL cannot be requested on this product
