Security lock for armored door
Mottura 89.8571L7 CALABRO'
Triple with 1/2 turn
prepared for European cylinder
Triple with half turn activated by the follower and the key

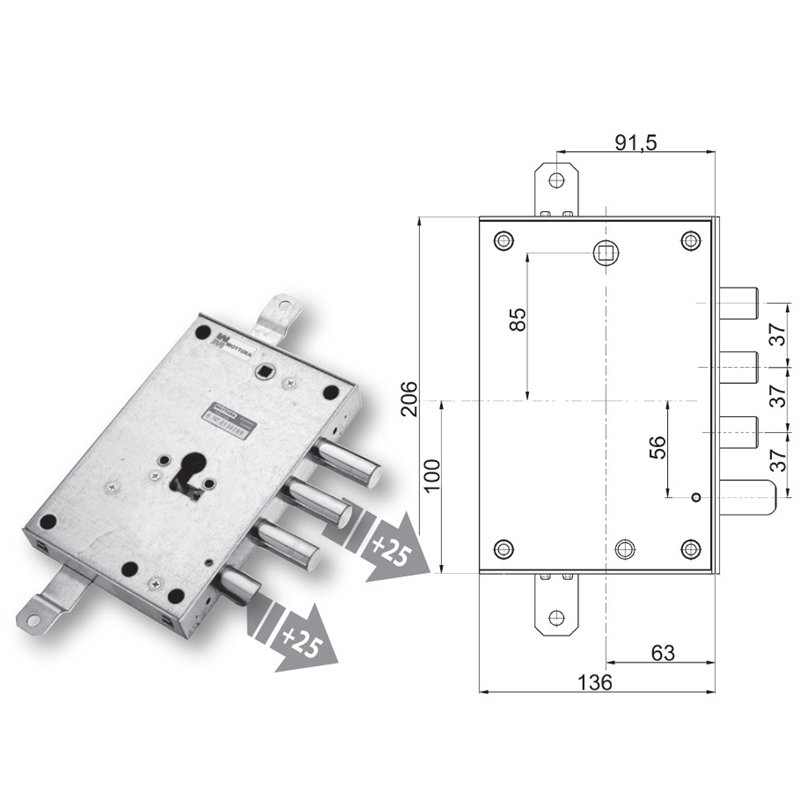

Box size 136x206mm
Keyset mm.63
2 send
Distance between bolts mm.37
Rod stroke mm.20
Bolt travel mm.29 (+25mm)
Reversible 1/2 turn
The lock is equipped with a reinforcing lever on the bolts and a locking system for forced extraction of the cylinder
RIGHT OR LEFT hand version
(the photograph refers to the RIGHT version)
Important note:
'SPARE PARTS' armored door locks are SPECIAL items that are produced TO ORDER
Therefore delivery may take longer than the standard terms
We ask customers to carefully CHECK the dimensions and version of the lock before proceeding with the order as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you choose the product
The WITHDRAWAL cannot be requested on this product
