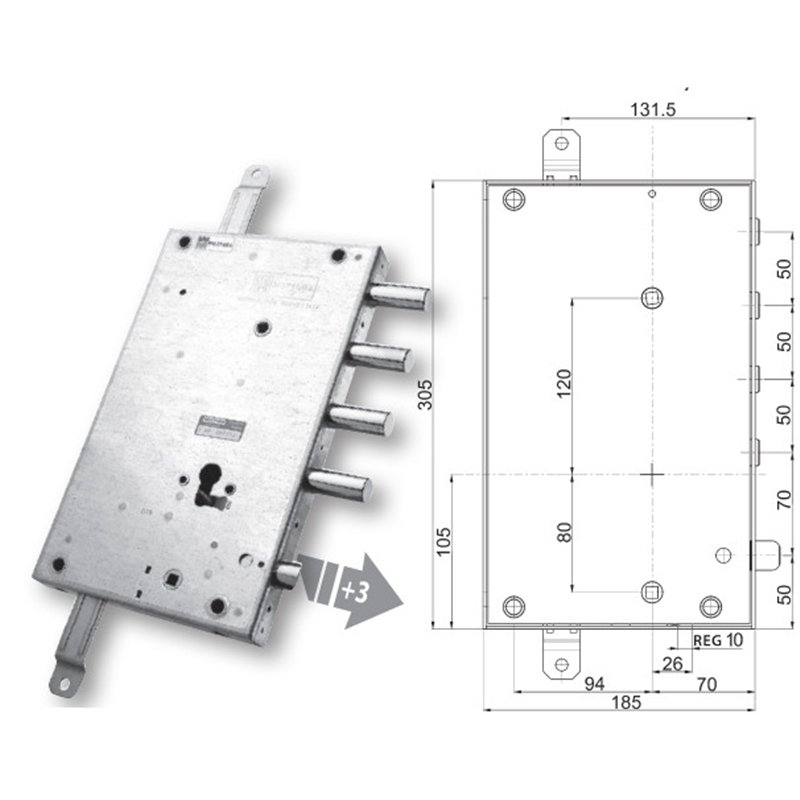

Security lock for armored door
Mottura 89.8461ME/Q METALNOVA
Triple with 1/2 turn
Predisposition for European cylinder
Triple with half turn operated by the handle square and the key
Bolt control by means of a frictioned knob
Box size 185x305
Key entry mm.70
Bolt distance 50mm
2 Throws
Rod stroke mm.20
Bolt stroke mm.40
Latch extended by 3mm
RIGHT OR LEFT hand version
(the photograph refers to the RIGHT version)
Important note:
The 'SPARE PART' armored door locks are SPECIAL items that are produced TO ORDER
Therefore, delivery may take longer than the standard terms
We ask customers to carefully CHECK the dimensions and version of the lock before placing the order as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you choose the product
Withdrawal CANNOT be requested on this product
