Security lock for armored door
Mottura 89.588DB
Triple with 1/2 turn
Multisystem

Multi-system lock with service locking via European cylinder with NIGHT STOP function and semi-independent opening that controls half a turn and latch with upper key entry closure

• Triple with extended half-turn (+3mm) operated by the handle square and the key
• Box size 136x254
• Key backset 63mm
• Deadbolt center distance 37 mm
• Rod travel mm.20
• Bolt travel mm.40 (+3mm)
• 3 40mm double bit keys

ANTIDECODUE system against attack with lock picks and Bulgarian keys

The lock does not include the cylinder and defender

RIGHT OR LEFT hand version

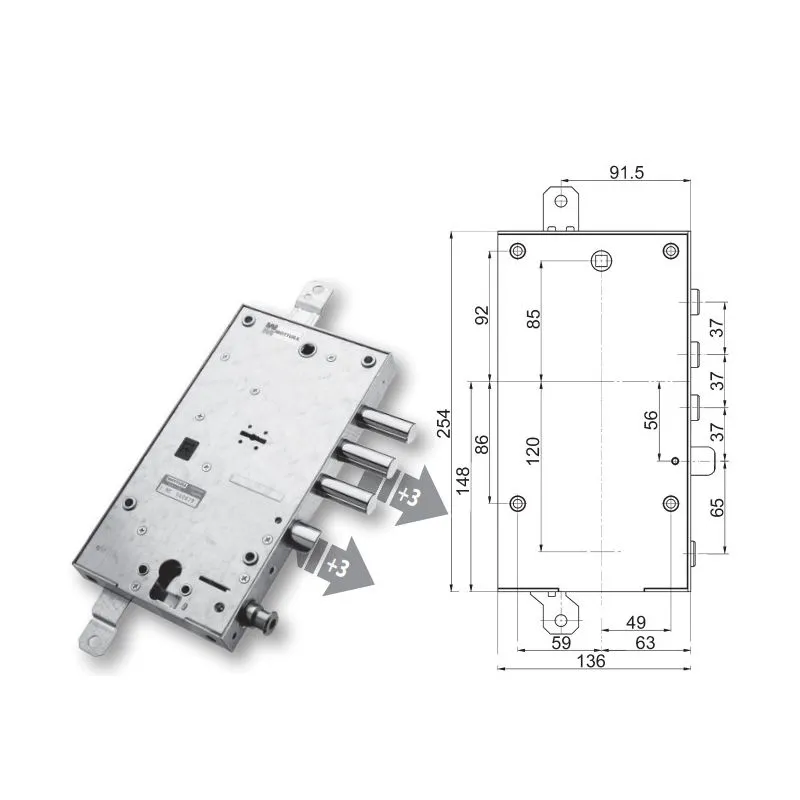

(the photograph refers to the RIGHT version)

Important note:
The 'SPARE' armored door locks are SPECIAL items that are produced TO ORDER
Therefore delivery may take longer than standard terms
We ask customers to carefully CHECK the dimensions and version of the lock before proceeding with the order as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you choose the product
WITHDRAWAL CANNOT be requested on this product
