Reference: 103.89.571EF3D
Brand: Mottura
Security door lock Mottura 89.571EF3 for EFFEPI
Security door lock Mottura 89.571EF3 for EFFEPI
Security door lock Mottura 89.571GRD for GREG
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)

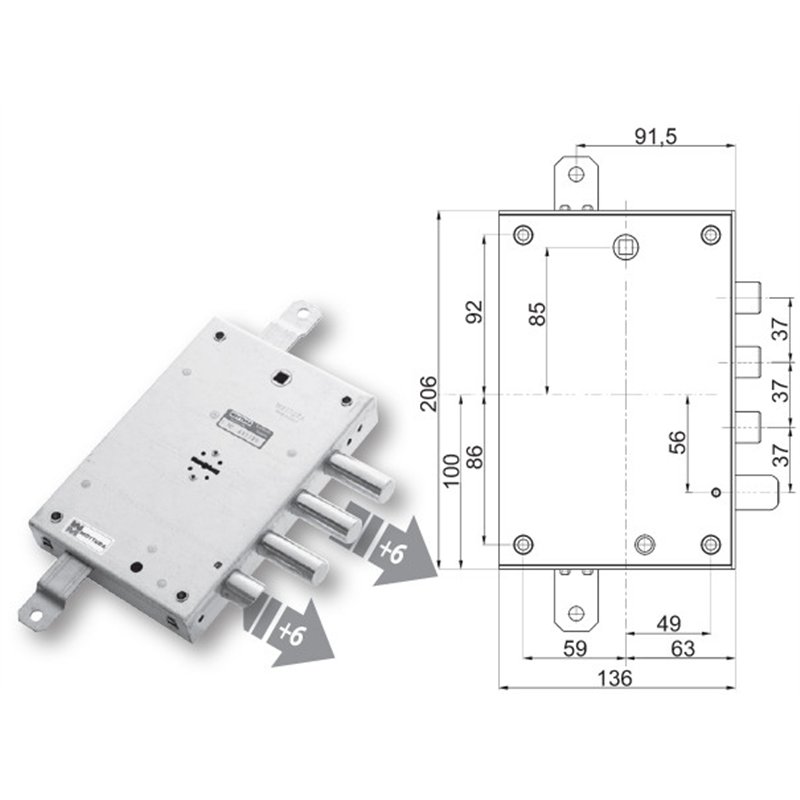

Security lock for armored door
Mottura 89.571GRG GREG
Triple with 1/2 turn
double bit key
Triple with extended half turn operated by the handle square and the key
Box size 136x206
Key entry mm.63
Bolt center distance mm.37
Rod stroke mm.20
Bolt stroke mm.40 (+6mm)
3 double bit keys 40mm supplied
1/2 turn reversible
RIGHT OR LEFT hand version
(the photo refers to the RIGHT version)
Important note:
The 'SPARE' armored door locks are SPECIAL items that are produced TO ORDER
Therefore, delivery may take longer than the standard terms
We ask customers to carefully CHECK the dimensions and version of the lock before placing the order as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you choose the product
Withdrawal CANNOT be requested on this product
