Security door lock Mottura 89.8571MR/Q for EURODOOR
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
(edit with the Customer Reassurance module)

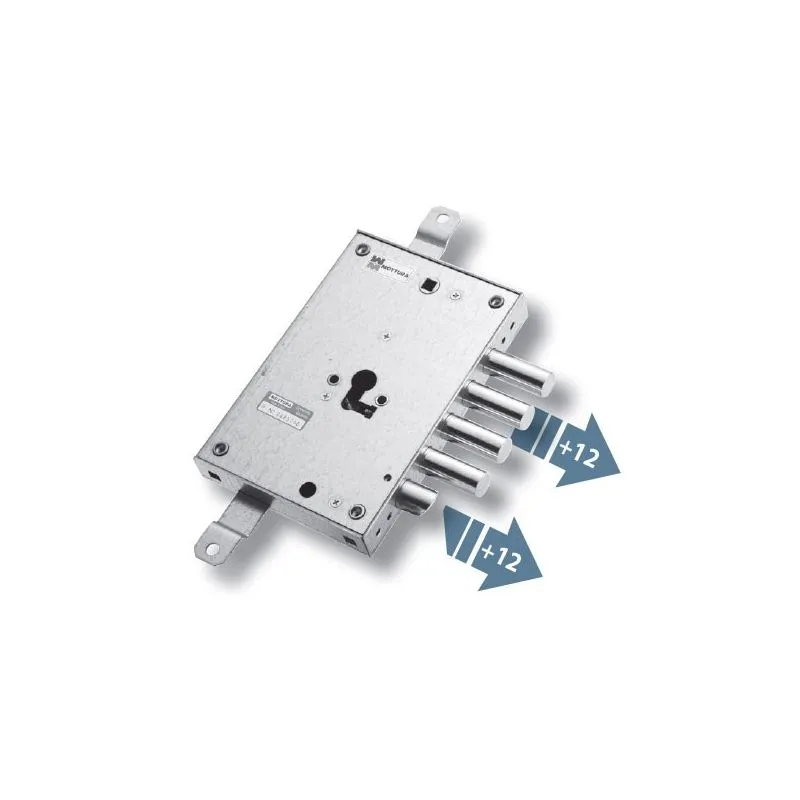

Security lock for armored door
Mottura 89.8571MR/Q
Triple with 1/2 turn
prepared for European cylinder
Triple with reversible half turn operated by the handle square and the key

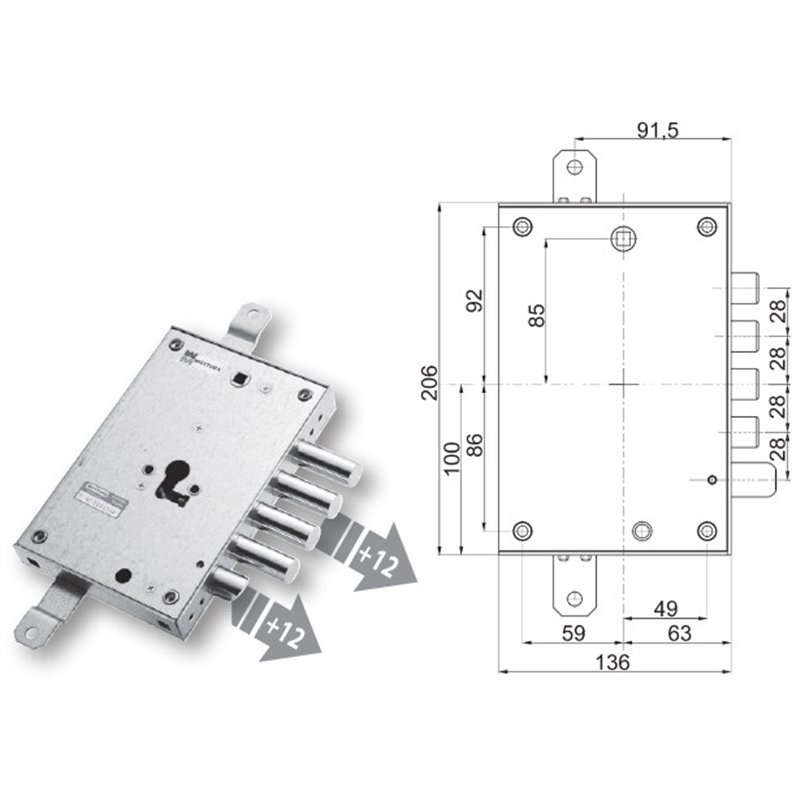

Box size 136x206mm
Key entry mm.63
2 Throws
Deadbolt center distance mm.28
Rod stroke mm.20
Bolt stroke mm.29 (+12mm)
The lock is equipped with a reinforcement lever on the bolts and a blocking system against forced extraction of the cylinder
RIGHT OR LEFT hand version
(the photo refers to the RIGHT version)
THE HEADBOARD AND THE OVERHOLDS MUST BE RECOVERED FROM THE LOCK TO BE REPLACED
Important note:
The 'SPARE PART' armored door locks are SPECIAL items that are produced ON ORDERING
Therefore, delivery may take longer than standard terms
We ask customers to carefully CHECK the dimensions and version of the lock before proceeding with the order as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you choose the product
Withdrawal CANNOT be requested on this product
