Security lock for armored door
Mottura 89.8589AL2 ALLMET
Triple with 1/2 turn
double, prepared for European cylinder

Lock with double cylinder; the two locks are independent

Triple with reversible half-turn activated by the handle follower and by the upper and lower cylinder
Bolts diam.18mm
29mm stroke
Rod stroke 20mm
Cylinder operates half turn and lower bolt diam.18mm stroke 22mm
Cylinder fixing with "Mottura" connection
RIGHT OR LEFT VERSION

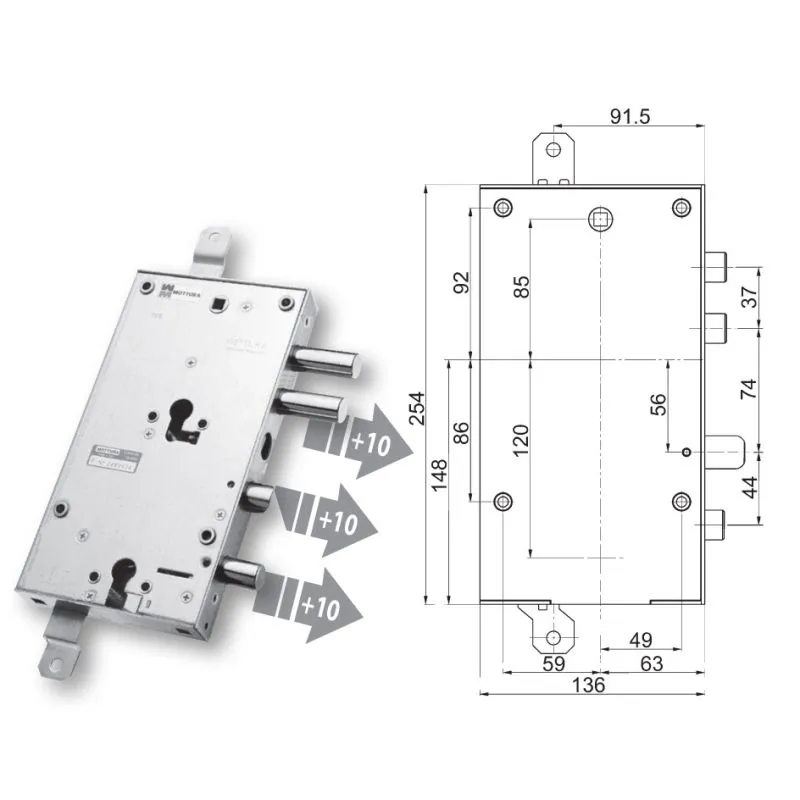

(the photograph refers to the RIGHT version)

Important note:
'SPARE PARTS' armored door locks are SPECIAL items that are produced TO ORDER
Therefore delivery may take longer than the standard terms
We ask customers to carefully CHECK the dimensions and version of the lock before proceeding with the order as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you choose the product
The WITHDRAWAL cannot be requested on this product
