Security lock for armored door
Mottura 89.8571IS/Q ISALL
Triple with 1/2 turn
prepared for European cylinder

Triple with reversible half turn operated by the handle square and the key

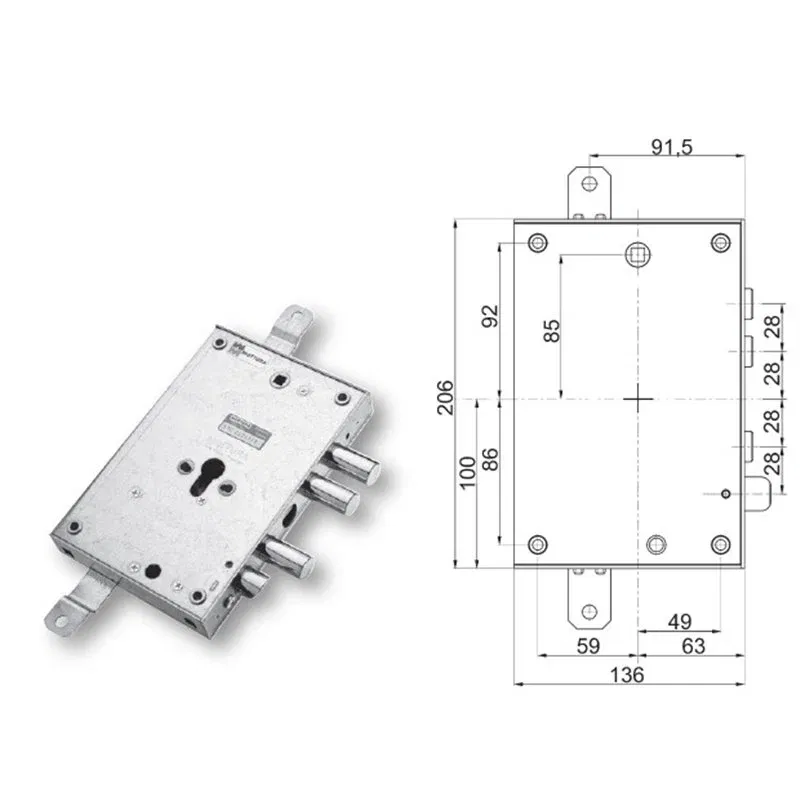

Box size 136x206mm

Key entry mm.63
2 Throws
Bolt center distance mm.28
Rod stroke mm.20
Bolt stroke mm.29

The lock is equipped with a reinforcement lever on the bolts and a blocking system against forced extraction of the cylinder

RIGHT OR LEFT hand version

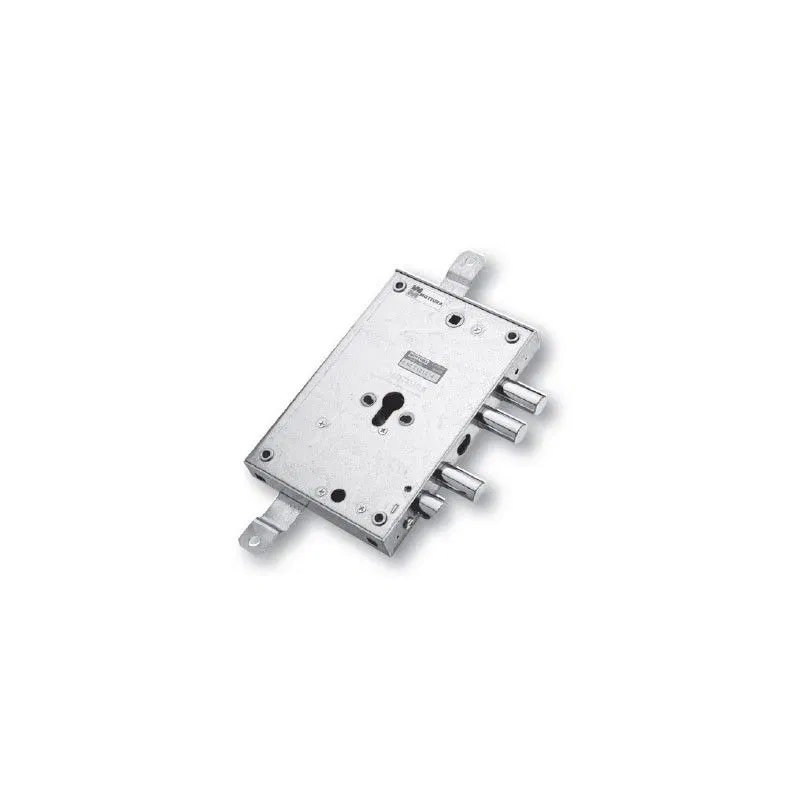

(the photo refers to the RIGHT version)

Important note:
The 'SPARE' armored door locks are SPECIAL items that are produced TO ORDER
Therefore, delivery may take longer than the standard terms
We ask customers to carefully CHECK the dimensions and version of the lock before proceeding to the order as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you choose the product
Withdrawal CANNOT be requested on this product
