CISA panic exit device
Fast Push series
59011.10 - modular (possibility for triple) (EX 59010.10)
DESIGN RESEARCH
• The harmony between dimensions, lines and weight, due to careful research
of design, makes "FAST PUSH" adaptable to any environment.
EASY INSTALLATION
• Special constructive features make the handle
"FAST PUSH" simple and quick to install, on wooden doors,
iron and aluminum.
RELIABILITY
• "FAST PUSH" is made with quality materials and mechanisms
reliable operation to ensure efficiency and durability
time.
CERTIFICATIONS AND MARKINGS
• The materials and technical solutions adopted allow for compliance with
more stringent requirements of the standards, this allowed CISA to obtain
brands and certifications including:
- CE marking according to DIRECTIVE 89/106 / EEC issued by
AENOR:
certificate n ° 0099CPD / A44 / 003 - use on standard doors,
certificate n ° 0099CPD / A44 / 004 - use on fire doors
- Certification of a voluntary product issued by a third party ICIM
required by the same UNI EN 1125 standard.
• All CISA handles of the “New EUROPA” series starting from
June 2002 are CE marked and are ICIM certified since March 2002.
MODULAR VERSION
• Self-locking side latch with possibility of exclusion
• SUPPLIED:
- Jets art. 1.07072.20.0 and 1.07072.21.0
• Possibility of matching with:
- Pair of latch high / low
• ON REQUEST (not included in the basic kit):
- External commands
- Oval Bar

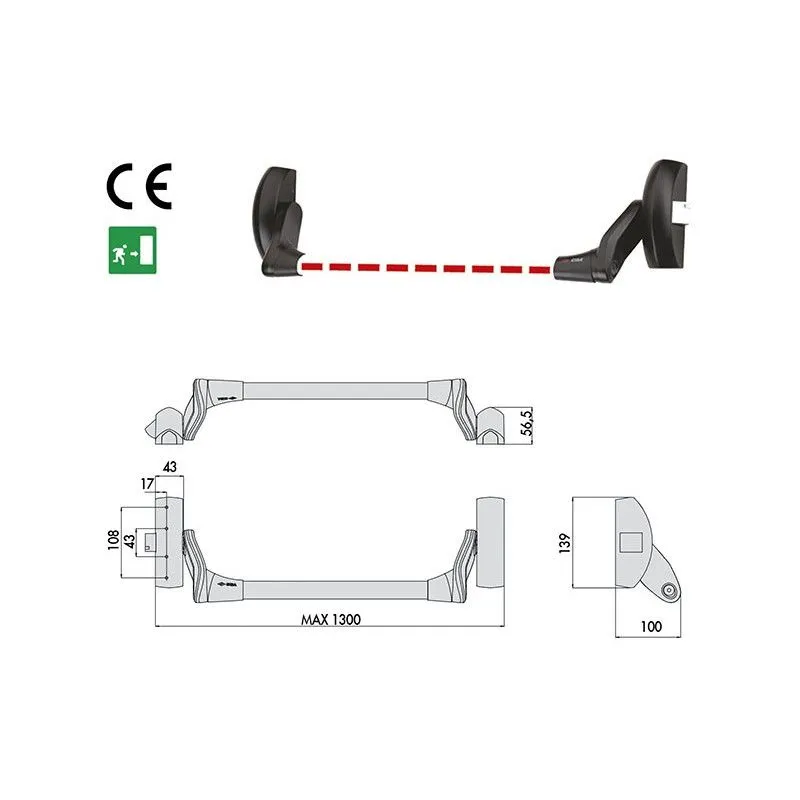

Disegni e quote : clicca qui
