Colombo Design DUE CC413Y – Pair of Lift-and-Slide Door Handles | Mood Collection

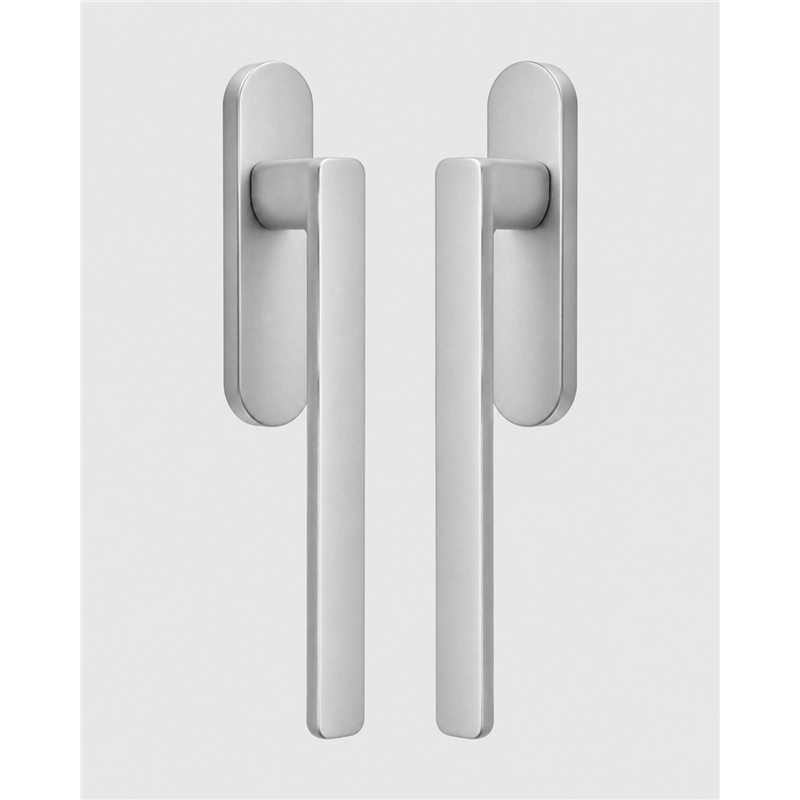

The Colombo Design CC413Y is a set of two brass operating handles for lift-and-slide door systems from the Mood Collection, designed by Studio Pang. Both handles feature Euro-profile cylinder cut-outs. Two configurations are offered: DUE with rounded mounting supports and DUE Q with square supports.
DUE and DUE Q configurations
The Colombo Design catalogue identifies two versions:
- DUE CC413Y: pair of handles with rounded mounting supports, coordinated with the DUE range.
- DUE Q CC413Y Q: pair of handles with square mounting supports, coordinated with DUE Q hardware.
Both use a 10 × 10 × 145 mm operating spindle and feature Euro-profile cylinder cut-outs. The CC413Y must be distinguished from the CC313 configuration, which combines a single operating handle with a recessed handle.
Technical specifications
| Specification | DUE CC413Y | DUE Q CC413Y Q |
|---|
| Manufacturer | Colombo Design |
|---|
| Collection | Mood Collection |
|---|
| Designer | Studio Pang |
|---|
| Product type | Pair of lift-and-slide operating handles |
|---|
| Material | Brass |
|---|
| Mounting supports | Rounded | Square |
|---|
| Handle height | 290 mm | 290 mm |
|---|
| Front width shown | 34 mm | 34 mm |
|---|
| Vertical mounting support dimension | 153 mm | 153 mm |
|---|
| Projection shown in drawing | 65 mm | 65 mm |
|---|
| Operating spindle | 10 × 10 × 145 mm | 10 × 10 × 145 mm |
|---|
| Catalogue door thickness | Up to 87 mm | Up to 87 mm |
|---|
| Cylinder preparation | Euro-profile cylinder cut-outs |
|---|
| Finishes | 12 Mood colours, C01–C12 |
|---|
| Origin | Made in Italy |
|---|
Mood Collection finishes
The CC413Y set can be ordered in twelve colours: White, Black, Bronze, Silver, Titan, Ocean Blue, Strawberry Red, Sunset Orange, Lemon Yellow, Claret Violet, Lime Green and Capri Blue.
These finishes allow the lift-and-slide handles to coordinate with DUE and DUE Q door hardware in a consistent colour scheme.
Important – Check lift-and-slide compatibilityThe CC413Y is manufactured on request. Before ordering, check mounting dimensions, door thickness, cylinder type and compatibility with the lift-and-slide mechanism. The lock and any additional components must be verified separately. Contact Matteoda customer service for technical assistance and estimated ordering lead times.
