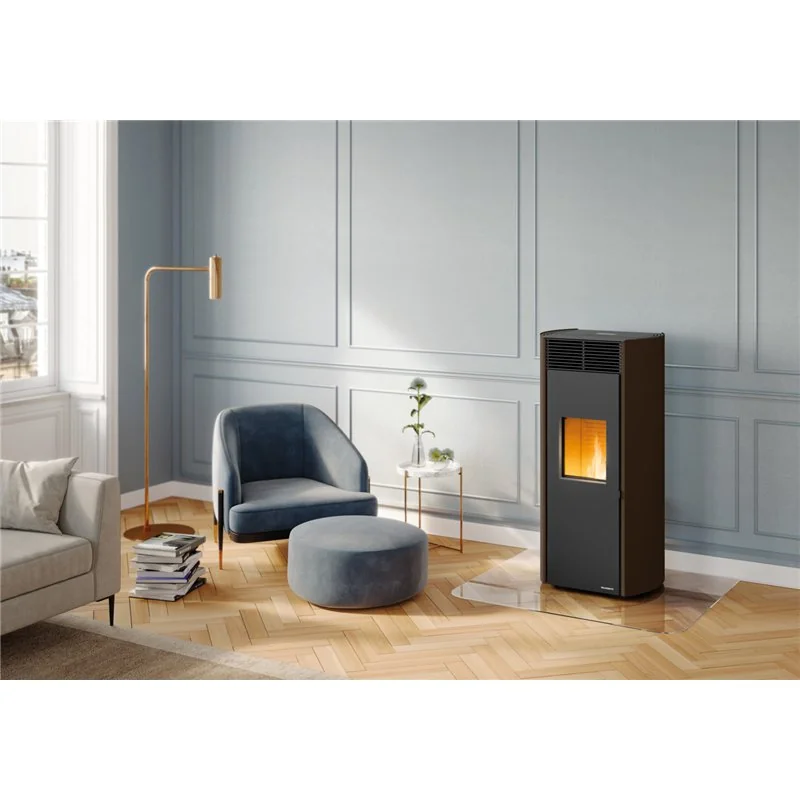

Palazzetti Ecofire Clelia TC 9: 9.3 kW sealed pellet stove

Palazzetti Ecofire Clelia TC 9 is a 9.3 kW sealed pellet stove designed to combine high heating performance, acoustic comfort and simplified maintenance.

Its rounded painted-steel cladding is combined with self-cleaning ceramic glass designed to provide an enhanced view of the flame.

Why choose Palazzetti Clelia TC 9

• 9.3 kW nominal heat output.
• Modulation down to approximately 2.8 kW.
• CC50 sealed combustion.
• Direct outdoor combustion-air intake capability.
• Rounded painted-steel cladding.
• Self-cleaning ceramic glass.
• Up to 37% wider flame view according to Palazzetti.
• Balanced Door.
• Front hot-air outlet.
• Zero Speed Fan.
• Digital touch control panel.
• Daily and weekly programming.
• Optional Universal Gateway.
• Self Cleaning System.
• Complete Burning System.
• Speedy Clean.
• Quick Start.
• Star pellet-feed system.
• Optional Pro2 hot-air ducting.
• 18 kg pellet hopper.
• A+ energy class.
• Italian 5-star environmental rating.

CC50 sealed combustion: what does it mean?

Clelia TC 9 is a CC50 certified sealed pellet stove.

CC50 means that combustion-chamber airtightness is verified at a pressure difference of up to 50 Pa according to EN 16510.

Combustion air can therefore be supplied directly from outdoors rather than being taken from the installation room.

This is particularly relevant in modern well-insulated buildings, low-energy homes and properties with controlled mechanical ventilation. Installation compatibility must always be assessed by a qualified installer.

Self-cleaning ceramic glass

Clelia TC 9 features ceramic glass with an air-wash cleaning system, helping to maintain a clearer view of the fire during operation.

Palazzetti states that the design provides up to 37% greater flame visibility.

Zero Speed Fan

The variable-speed room fan features Zero Speed Fan, allowing forced ventilation to be completely switched off when operating conditions permit.

Self Cleaning System

The Self Cleaning System automatically cleans the pellet burn pot by periodically discharging combustion residues.

Complete Burning System

The Complete Burning System promotes more complete pellet combustion and helps minimise residual ash production.

Speedy Clean

The latest-generation Speedy Clean system provides front access to the flue-gas circuit, simplifying routine maintenance.

Quick Start

Quick Start is designed to reduce pellet ignition time and allow the stove to reach operating conditions more quickly.

Optional Pro2 hot-air ducting

Clelia TC 9 can be equipped with the optional Pro2 ducting kit, allowing warm air to be distributed to another room.

Performance and pellet consumption

Clelia TC 9 delivers a 9.3 kW nominal heat output and can modulate down to approximately 2.8 kW.

Nominal efficiency is approximately 91%.

Pellet consumption ranges from approximately 0.64 to 2.11 kg/h, while the hopper has a capacity of 18 kg.

Palazzetti Ecofire Clelia TC 9 technical specifications

Installation and chimney system

Palazzetti Clelia TC 9 uses an Ø80 mm flue outlet and can draw combustion air directly from outdoors.

The chimney and any hot-air ducting system must be correctly designed and installed by qualified personnel in accordance with current regulations and Palazzetti's technical instructions.
