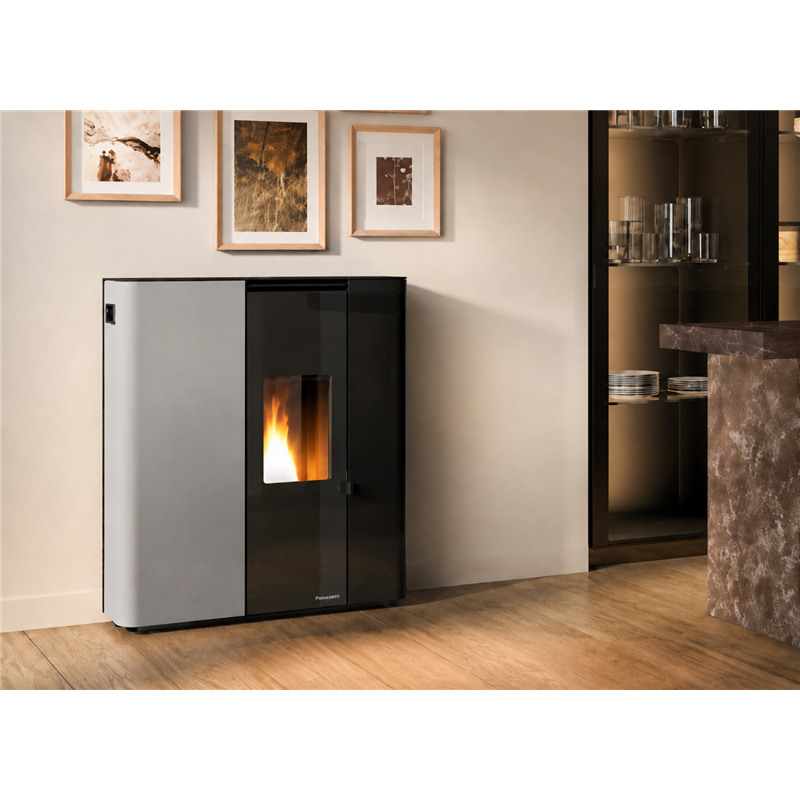

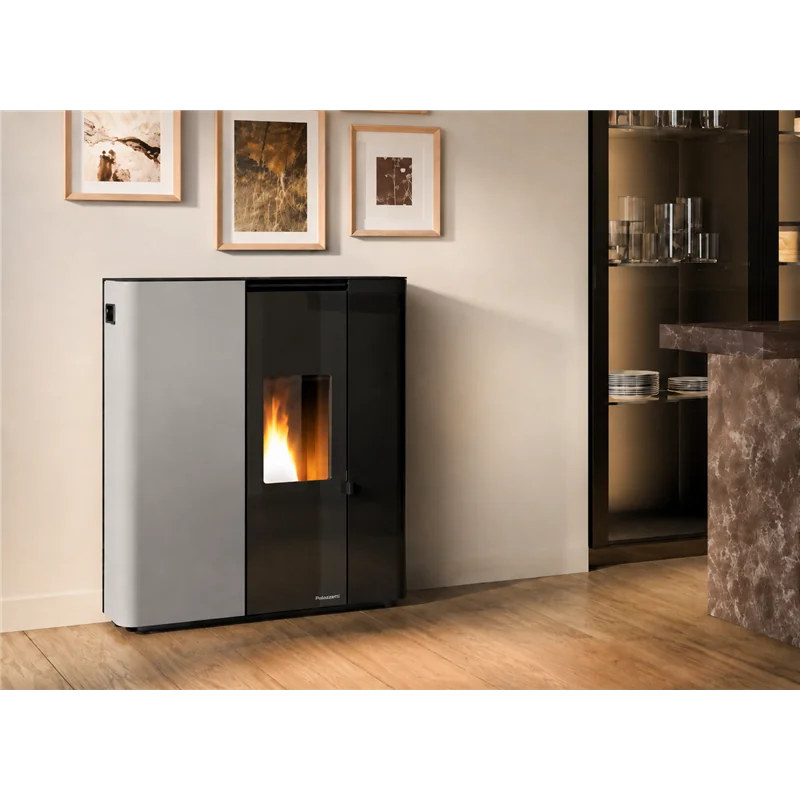

Palazzetti Ecofire Scarlet Lux TC 9 is a 9 kW slim sealed pellet stove, only 29 cm deep and designed for flush-to-wall installation. The Lux version features a more refined design with a glass door, glossy black right side and left side available in different finishes. It includes Zero Speed Fan, Self Cleaning System, Complete Burning System, Speedy Clean and Quick Start. Optional Pro2 ducting, Universal Gateway compatibility, CC50, A+ energy class and Italian 5-star environmental rating.
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care
Palazzetti Ecofire Scarlet Lux TC 9 is a 9 kW slim sealed pellet stove designed to provide substantial heating output while requiring very little installation depth.
At only 29 cm deep, it can be installed flush against a wall, making it particularly suitable for corridors, narrow living rooms and passage areas.
Compared with the standard Scarlet, the Scarlet Lux version features a more refined exterior with a glass door, glossy black right side and left side available in different finishes.
Scarlet Lux combines the compact structure and advanced technology of the Scarlet range with a more sophisticated exterior.
The glass door gives the front a cleaner appearance, while the glossy black right side contrasts with the left side, available in different finishes.
Scarlet Lux TC 9 is specifically designed as a space-saving pellet stove.
Its depth of only 29 cm makes it suitable for corridors, narrow rooms and passage areas where a conventional pellet stove could occupy too much space.
Scarlet Lux TC 9 is a CC50 certified sealed pellet stove.
CC50 indicates that combustion chamber airtightness has been tested at a pressure difference of up to 50 Pa according to EN 16510.
Combustion air can therefore be supplied directly from outdoors rather than being taken from the installation room.
This is particularly useful in modern well-insulated buildings, low-energy homes and properties with controlled mechanical ventilation.
The stove features a variable-speed room-air fan.
Zero Speed Fan allows forced ventilation to be completely disabled under the operating conditions specified by Palazzetti, providing quieter operation and more natural heat distribution.
Scarlet Lux TC 9 can be equipped with the optional Pro2 ducting kit.
Warm air can be distributed to another room through an Ø80 mm duct, with either a top or rear connection.
The Self Cleaning System automatically cleans the pellet burn pot by periodically discharging combustion residues.
The Complete Burning System promotes more complete pellet combustion and helps minimise residual ash production.
The latest-generation Speedy Clean system provides front access to the flue-gas circuit, simplifying routine maintenance.
Quick Start is designed to reduce pellet ignition time and help the stove reach operating conditions more quickly.
Scarlet Lux TC 9 is compatible with the optional Universal Gateway, allowing integration with Palazzetti's connected ecosystem and compatible smartphone control functions.
Scarlet Lux TC 9 delivers 9 kW nominal heat output.
Nominal efficiency is approximately 89%.
Pellet consumption ranges from approximately 0.63 to 2.06 kg/h, while the hopper has a capacity of 20 kg.
| Brand | Palazzetti |
| Range | Ecofire |
| Model | Scarlet Lux TC 9 |
| Type | Slim sealed ventilated pellet stove |
| Fuel | Pellet |
| Nominal heat output | 9 kW |
| Minimum heat output | 2.8 kW |
| Nominal efficiency | 89% |
| Pellet consumption | 0.63 - 2.06 kg/h |
| Pellet hopper capacity | 20 kg |
| Flue gas temperature at nominal output | 252 °C |
| Flue gas flow at nominal output | 5.2 g/s |
| CO at nominal output, 13% O₂ | 100 mg/Nm³ |
| Dust at nominal output, 13% O₂ | 5 mg/Nm³ |
| OGC at nominal output, 13% O₂ | 2 mg/Nm³ |
| Flue outlet | Ø80 mm |
| Required chimney draught | 12 Pa (±2) |
| Width | 89 cm |
| Depth | 29 cm |
| Height | 104 cm |
| Weight | 120 kg |
| Cladding | Painted steel and glass |
| Right side | Glossy black |
| Zero Speed Fan | Yes |
| Self Cleaning System | Yes |
| Complete Burning System | Yes |
| Speedy Clean | Yes |
| Quick Start | Yes |
| Balanced Door | Yes |
| Optional hot-air ducting | Pro2, Ø80 mm |
| Duct position | Top or rear |
| Universal Gateway | Optional / pre-arranged |
| Sealed combustion | Yes |
| Airtightness | CC50 – certified at 50 Pa according to EN 16510 |
| Energy class | A+ |
| Italian environmental rating | 5 stars D.M. 186 |
Palazzetti Scarlet Lux TC 9 uses an Ø80 mm flue outlet.
Palazzetti specifies a chimney draught of 12 Pa (±2 Pa).
The chimney system must be correctly designed according to the actual installation, building characteristics and Palazzetti's technical instructions.
Installation must be carried out by qualified personnel in accordance with current regulations.
International Shipping & Warranty
Please check product compatibility with a local installer before purchasing. For any further information, please contact our customer service. |
