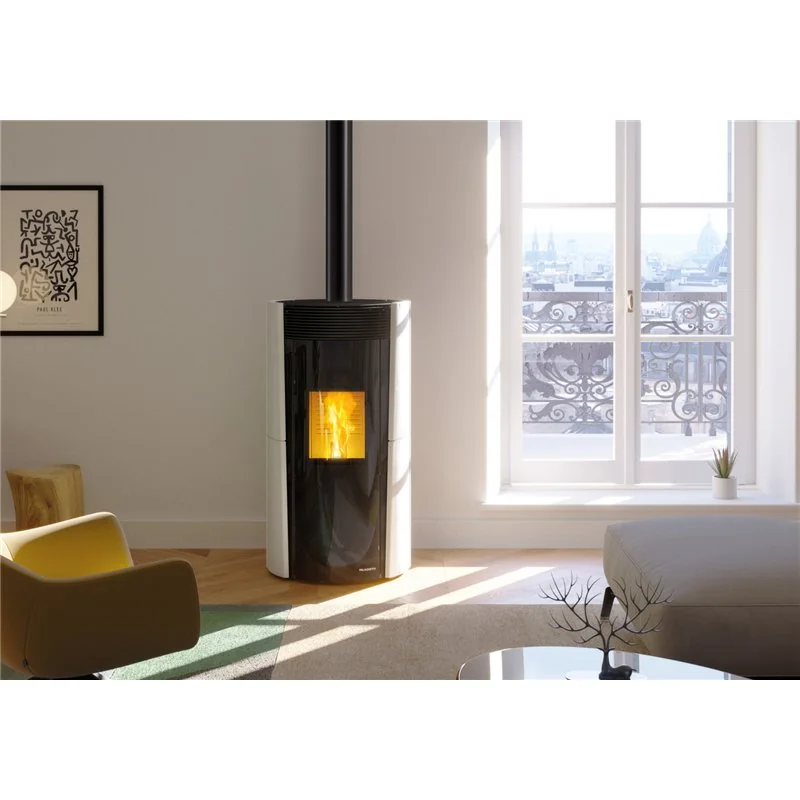

Palazzetti Ecofire Lilibet TC 9 US Pro2 is a 9.3 kW sealed ductable pellet stove with a top coaxial flue connection, elegant ceramic cladding and a Total Black double-glazed door. The Pro2 system uses two independent fans, one for the main room and one for the rear Ø80 mm hot-air duct. It features Zero Speed Fan, Balanced Door, T3 technology, Self Cleaning System, Complete Burning System, Speedy Clean and Quick Start. CC50, A+ energy class and Italian 5-star environmental rating.
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
Palazzetti Ecofire Lilibet TC 9 US Pro2 is a 9.3 kW sealed ductable pellet stove combining elegant ceramic styling, independent hot-air ducting and a top coaxial flue connection.
The US – Upper Smoke configuration combines flue-gas evacuation and combustion-air intake through the top connection, while the Pro2 system adds a dedicated fan for the rear Ø80 mm hot-air duct.
The Pro2 system uses two independent fans.
One fan heats the main installation room, while the second fan is dedicated to the rear Ø80 mm hot-air duct.
This allows part of the stove's heat output to be distributed to an additional room while maintaining independent management of the main-room ventilation.
The US – Upper Smoke configuration provides a top connection for the chimney system.
The coaxial arrangement combines flue-gas evacuation and combustion-air intake in the same connection.
The system uses an Ø80/130 mm configuration, with the inner Ø80 mm duct used for flue gases and the outer section used for combustion air.
Lilibet TC 9 US Pro2 is a CC50 certified sealed pellet stove.
CC50 means that combustion-chamber airtightness is verified at a pressure difference of up to 50 Pa according to EN 16510.
Combustion air can therefore be supplied directly from outdoors rather than being taken from the installation room.
This is particularly relevant in modern well-insulated buildings, low-energy homes and properties with controlled mechanical ventilation. Installation compatibility must always be assessed by a qualified installer.
Lilibet TC 9 US Pro2 features elegant ceramic cladding and a rounded body.
The external aesthetic glass panel is made from black tempered glass and becomes transparent when the fire is burning.
The main-room fan features Zero Speed Fan, allowing forced ventilation to be completely switched off when operating conditions permit.
Lilibet TC 9 US Pro2 uses Palazzetti's T3 technology, based on four enlarged flue-gas tubes designed for efficient heat exchange and simplified cleaning.
The Self Cleaning System automatically cleans the pellet burn pot by periodically discharging combustion residues.
The Complete Burning System promotes more complete pellet combustion and helps minimise residual ash production.
The Speedy Clean system provides front access to the flue-gas circuit, simplifying routine cleaning and maintenance.
Quick Start is designed to reduce ignition time and allow the stove to reach normal operating conditions more quickly.
Lilibet TC 9 US Pro2 delivers a 9.3 kW nominal heat output and can modulate down to approximately 3.2 kW.
Current Palazzetti technical documentation specifies approximately 91% efficiency at nominal output and 89% at partial load.
Pellet consumption ranges from approximately 0.64 to 2.11 kg/h, while the hopper has a capacity of 15 kg.
| Brand | Palazzetti |
| Range | Ecofire |
| Model | Lilibet TC 9 US Pro2 |
| Type | Sealed ductable pellet stove |
| Version | US – Upper Smoke / Pro2 |
| Fuel | Pellet |
| Heat output range | 3.2 - 9.3 kW |
| Nominal heat output | 9.3 kW |
| Efficiency at nominal output | 91% |
| Efficiency at partial load | 89% |
| Pellet consumption | 0.64 - 2.11 kg/h |
| Pellet hopper capacity | 15 kg |
| Flue gas temperature at nominal output | 201 °C |
| Flue gas temperature at partial load | 131 °C |
| Flue gas mass flow at nominal output | 5.5 g/s |
| Flue gas mass flow at partial load | 3.8 g/s |
| CO at nominal output, 13% O₂ | 50 mg/Nm³ |
| CO at partial load, 13% O₂ | 298 mg/Nm³ |
| OGC at nominal output, 13% O₂ | 2 mg/Nm³ |
| OGC at partial load, 13% O₂ | 4 mg/Nm³ |
| Flue outlet | Ø80 mm |
| Top coaxial connection | Ø80/130 mm – flue + combustion air |
| External air intake | Ø100 mm |
| Nominal chimney draught | 12 Pa |
| Partial-load chimney draught | 10 Pa |
| Permitted chimney draught | 6 - 20 Pa |
| Width | 65 cm |
| Depth | 66 cm |
| Height | 122 cm |
| Weight | 195 kg |
| Cladding | Ceramic |
| Door | Total Black double glazing |
| Airtightness | CC50 – certified at 50 Pa according to EN 16510 |
| Zero Speed Fan | Yes |
| Balanced Door | Yes |
| T3 technology | Yes |
| Self Cleaning System | Yes |
| Complete Burning System | Yes |
| Speedy Clean | Yes |
| Quick Start | Yes |
| Hot-air ducting | Pro2 |
| Fans | 2 independent: room + ducting |
| Duct diameter | Ø80 mm |
| Universal Gateway | Optional / pre-arranged |
| Energy class | A+ |
| Italian environmental rating | 5 stars D.M. 186 |
Lilibet TC 9 US Pro2 is designed for an Ø80/130 mm top coaxial connection, combining flue-gas evacuation and combustion-air intake.
The Pro2 rear hot-air duct uses an Ø80 mm connection.
The chimney and ducting system must be correctly designed and installed by qualified personnel in accordance with current regulations and Palazzetti's technical instructions.
Palazzetti Ecofire Lilibet TC 9 US Pro2 is rated A+ for energy efficiency and achieves the Italian 5-star environmental rating under D.M. 186.
Palazzetti documentation refers to incentives for qualifying biomass heating installations. Eligibility for Conto Termico 3.0 depends on the type of project, the appliance being replaced and compliance with all applicable technical and administrative requirements.
For further information, see our guide to Conto Termico 3.0 and incentives for biomass heating appliances.
International Shipping & Warranty
Please check product compatibility with a local installer before purchasing. For any further information, please contact our customer service. |
