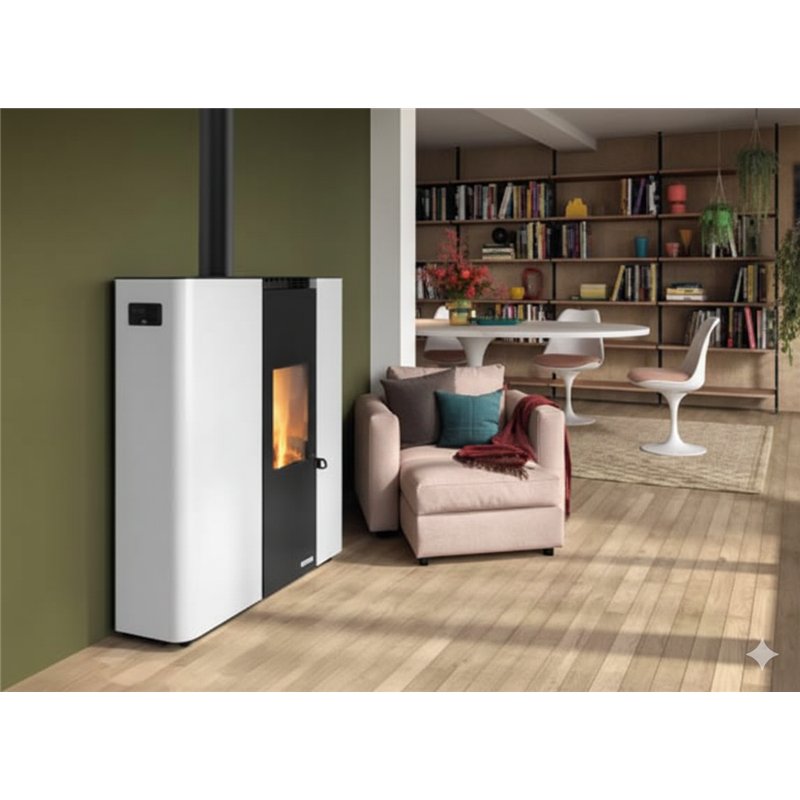

Palazzetti Ecofire Scarlet TC 9 US: 9 kW slim sealed pellet stove with top coaxial outlet

Palazzetti Ecofire Scarlet TC 9 US is a 9 kW slim sealed pellet stove designed to provide substantial heating output while requiring very little installation depth.

At only 29 cm deep, it can be installed flush against a wall, making it particularly suitable for corridors, passage areas and narrow living spaces.

The US – Upper Smoke version is specifically designed for a top coaxial flue and combustion-air connection.

Why choose Palazzetti Scarlet TC 9 US

• 9 kW nominal heat output.
• Only 29 cm deep.
• Flush-to-wall installation.
• US – Upper Smoke configuration.
• Ø80/130 mm top coaxial flue and combustion-air connection.
• Sealed combustion technology.
• CC50 – certified airtightness at 50 Pa according to EN 16510.
• Zero Speed Fan.
• Self Cleaning System.
• Complete Burning System.
• Speedy Clean.
• Quick Start.
• Balanced Door.
• Daily and weekly programming.
• Compatible with optional Universal Gateway.
• Optional Pro2 Ø80 mm hot-air ducting.
• Top or rear hot-air duct configuration.
• 20 kg pellet hopper.
• Maximum indicative autonomy up to 32 hours.
• A+ energy class.
• Italian 5-star environmental rating.

US – Upper Smoke: top coaxial flue and air connection

The US – Upper Smoke configuration distinguishes this model from the standard Scarlet TC 9.

It is designed to combine flue-gas evacuation and combustion-air intake in a top coaxial connection.

The connection uses an Ø80/130 mm coaxial system and can be completed with dedicated Palazzetti adapters.

This layout is particularly useful for flush-to-wall installations because it can reduce the amount of space required behind the stove.

Only 29 cm deep

Scarlet TC 9 US is a genuine space-saving pellet stove.

Its depth of only 29 cm, combined with the top flue connection, makes it particularly suitable where available floor space is limited.

CC50 sealed combustion: what does it mean?

Scarlet TC 9 US is a CC50 certified sealed pellet stove.

CC50 means that combustion chamber airtightness has been tested at a pressure difference of up to 50 Pa according to EN 16510.

Combustion air can therefore be supplied directly from outdoors rather than taken from the installation room.

This is particularly useful in modern well-insulated buildings, low-energy homes and properties with controlled mechanical ventilation.

Zero Speed Fan

The variable-speed room-air fan features Zero Speed Fan, allowing forced ventilation to be completely disabled under the operating conditions specified by Palazzetti.

This provides quieter operation and allows heat to spread more naturally through convection and radiation.

Optional Pro2 hot-air ducting

Scarlet TC 9 US can be equipped with the optional Pro2 ducting kit.

Warm air can be distributed to another room through an Ø80 mm duct, with a top or rear connection.

Self Cleaning System

The Self Cleaning System automatically cleans the pellet burn pot by periodically discharging combustion residues.

Complete Burning System

The Complete Burning System promotes more complete pellet combustion and helps minimise residual ash production.

Speedy Clean

The latest-generation Speedy Clean system provides front access to the flue-gas circuit, simplifying routine maintenance.

Quick Start

Quick Start is designed to reduce pellet ignition time and allow the stove to reach operating conditions more quickly.

Universal Gateway

Scarlet TC 9 US is compatible with the optional Universal Gateway, allowing integration with Palazzetti's connected ecosystem and compatible smartphone control functions.

20 kg pellet hopper

The pellet hopper has a capacity of 20 kg.

Palazzetti specifies pellet consumption from approximately 0.63 to 2.06 kg/h, with maximum indicative autonomy of up to approximately 32 hours.

Palazzetti Ecofire Scarlet TC 9 US technical specifications

Installation and chimney system

Scarlet TC 9 US features an Ø80/130 mm top coaxial connection combining flue-gas evacuation and combustion-air intake.

Dedicated Palazzetti coaxial adapters are available according to the required installation layout.

The chimney system must be correctly designed and installed by qualified personnel in accordance with current regulations and Palazzetti's technical instructions.
