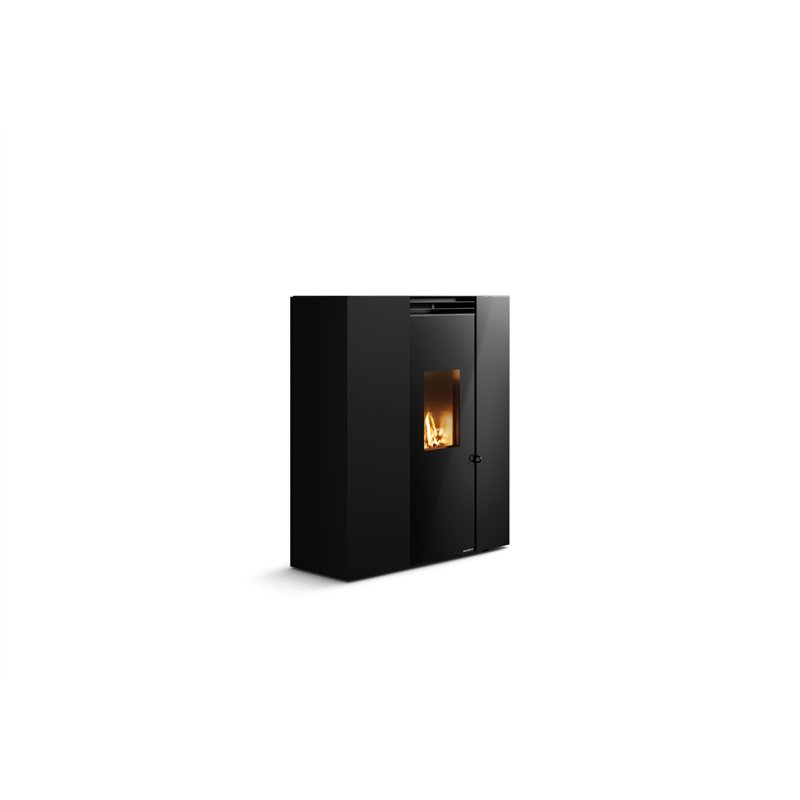

Palazzetti Ecofire Tiffany Air 10: 10.2 kW slim sealed ductable pellet stove

Palazzetti Ecofire Tiffany Air 10 is a 10.2 kW slim sealed pellet stove designed to provide substantial heating output while requiring limited installation depth.

At only 34 cm deep, Tiffany can be installed flush against a wall and is particularly suitable for living rooms, corridors and passage areas where preserving usable space is important.

One of its key features is the option to configure the appliance with Air Pro System 2 or Air Pro System 3, allowing warm air to be distributed to one or two additional rooms.

Why choose Palazzetti Tiffany Air 10

• 10.2 kW maximum nominal heat output.
• Modulation down to approximately 3.4 kW.
• Only 34 cm deep.
• Flush-to-wall installation.
• Sealed combustion technology.
• CC50 – certified airtightness at 50 Pa according to EN 16510.
• Zero Speed Fan.
• Self Cleaning System.
• Complete Burning System.
• Speedy Clean.
• Quick Start.
• Balanced Door.
• Digital touch-sensitive control panel.
• Daily and weekly programming.
• Compatible with optional Universal Gateway and Palazzetti App.
• Optional Air Pro System 2 for one ducted branch.
• Optional Air Pro System 3 for two independent ducted branches.
• Ø80 mm hot-air ducts.
• Top or rear ducting connection.
• 19 kg pellet hopper.
• Maximum indicative autonomy up to approximately 25 hours.
• A+ energy class.
• Italian 5-star environmental rating.

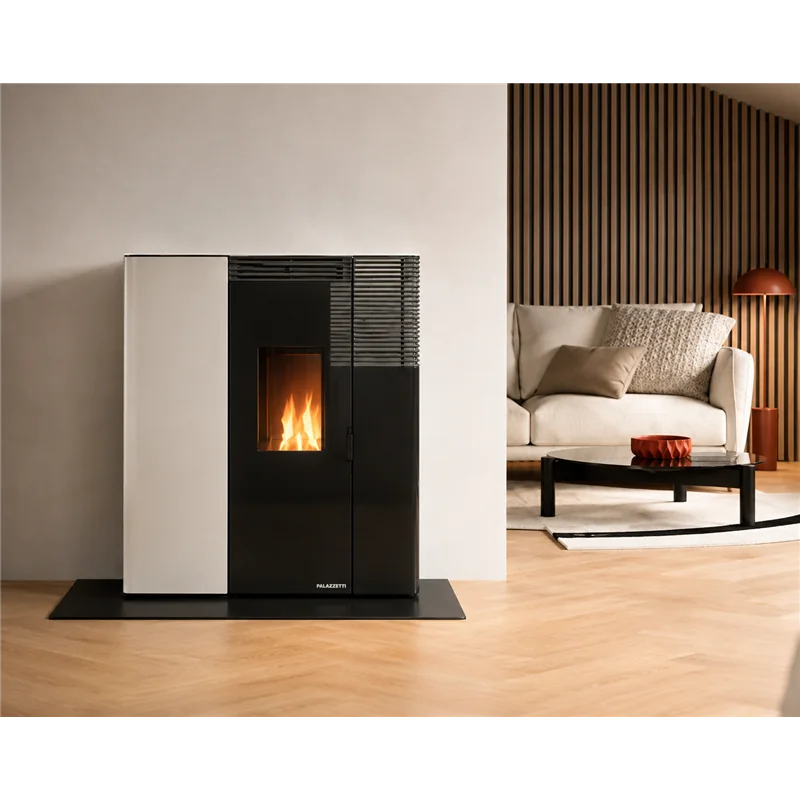

Slim design with glass door

Tiffany Air 10 combines a space-saving structure with contemporary styling.

The stove features a glass door and painted-steel cladding. The right side is glossy black, while the left side is available in different finishes.

Only 34 cm deep

Tiffany Air 10 is designed as a genuine space-saving pellet stove.

Its depth of only 34 cm and flush-to-wall installation help reduce its impact on usable floor space.

CC50 sealed combustion: what does it mean?

Tiffany Air 10 is a CC50 certified sealed pellet stove.

CC50 indicates that combustion chamber airtightness has been tested at a pressure difference of up to 50 Pa according to EN 16510.

Combustion air can therefore be supplied directly from outdoors rather than being taken from the installation room.

This is particularly useful in modern well-insulated buildings, low-energy homes and properties with controlled mechanical ventilation.

Zero Speed Fan

The variable-speed room-air fan features Zero Speed Fan, allowing forced ventilation to be completely disabled under the operating conditions specified by Palazzetti.

Heat can then be distributed mainly through natural convection and radiation for quieter operation.

Air Pro System 2

With the dedicated Pro2 kit for Tiffany, the stove can be configured with Air Pro System 2.

The system uses two independent fans: one for the installation room and one for ducted hot-air distribution.

Palazzetti specifies ducting runs of up to approximately 14 linear metres with an Ø80 mm duct, subject to correct system design.

Air Pro System 3

Tiffany can also be equipped with the dedicated Pro3 kit.

Air Pro System 3 uses three independent fans: one for the main room and two for separate ducted branches.

Palazzetti specifies up to approximately 28 metres of straight Ø80 mm ducting in total, corresponding to an equivalent length of approximately 14 metres for each branch, subject to correct installation design.

Self Cleaning System

The Self Cleaning System automatically cleans the pellet burn pot by periodically discharging combustion residues.

Complete Burning System

The Complete Burning System promotes more complete combustion and helps reduce residual ash production.

Speedy Clean

The latest-generation Speedy Clean system provides front access to the flue-gas circuit, simplifying routine maintenance.

Quick Start

Quick Start optimises the ignition stage. Palazzetti uses a ceramic igniter designed for faster pellet ignition, increased durability and improved resistance to oxidation and corrosion compared with conventional metal igniters.

Universal Gateway

Tiffany Air 10 is compatible with the optional Universal Gateway.

The system allows the main stove operating parameters and compatible BLE accessories to be managed from a smartphone using the Palazzetti App.

Pellet performance

Tiffany Air 10 delivers up to 10.2 kW nominal heat output and can modulate down to approximately 3.4 kW.

Efficiency reaches 89.3% at nominal output and approximately 91% at partial load.

Pellet consumption ranges from approximately 0.77 to 2.34 kg/h, while the hopper has a capacity of 19 kg. Maximum indicative autonomy is up to approximately 25 hours.

Palazzetti Ecofire Tiffany Air 10 technical specifications

Installation and chimney system

Palazzetti Tiffany Air 10 uses an Ø80 mm flue outlet and an Ø60 mm combustion-air inlet.

Palazzetti specifies a chimney draught of 12 Pa (±2 Pa).

The chimney and any hot-air ducting system must be correctly designed and installed by qualified personnel in accordance with current regulations and Palazzetti's technical instructions.
