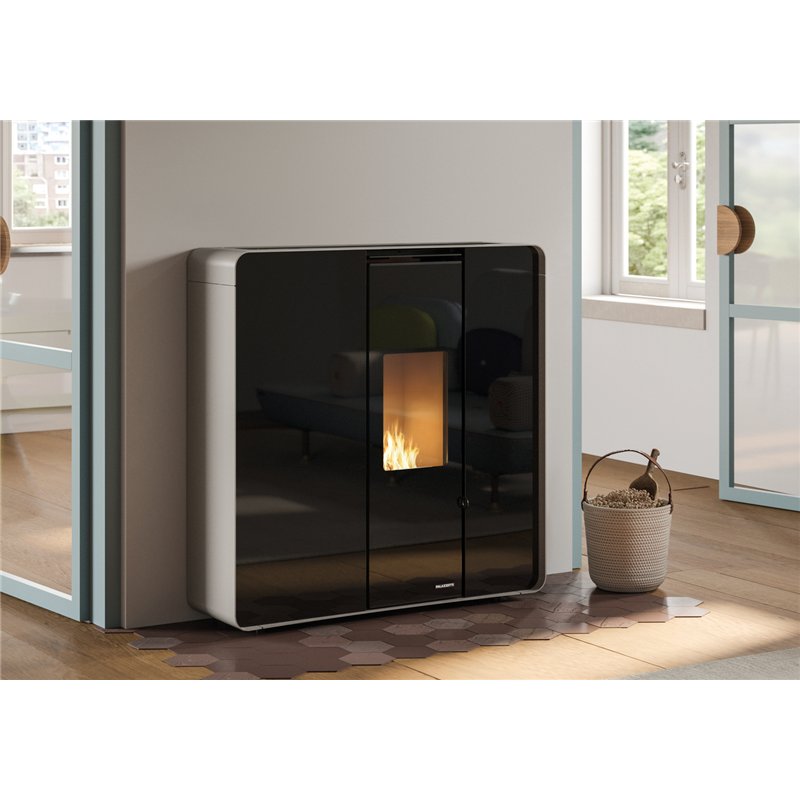

Palazzetti Ecofire Margot TC 6: 6.1 kW slim sealed pellet stove with Wi-Fi
Palazzetti Ecofire Margot TC 6 is a 6.1 kW slim sealed pellet stove designed to combine a very shallow installation depth with refined styling and advanced heating technology.
At only 30 cm deep, Margot can be installed flush against a wall and is particularly suitable for corridors, passage areas, narrow living rooms and other spaces where a conventional pellet stove could project too far into the room.
Standard equipment includes MyDisplay+ with built-in Wi-Fi, Zero Speed Fan, Self Cleaning System, Complete Burning System, Speedy Clean and Quick Start.
Why choose Palazzetti Margot TC 6
- 6.1 kW nominal heat output.
- Only 30 cm deep.
- Flush-to-wall installation.
- CC50 sealed combustion.
- MyDisplay+ with built-in Wi-Fi.
- Glass fire door.
- Glossy black painted-metal front.
- Thick steel surround available in different finishes.
- Balanced Door.
- Zero Speed Fan.
- Self Cleaning System.
- Complete Burning System.
- Speedy Clean.
- Quick Start.
- Daily and weekly programming.
- Optional Pro2 Ø80 mm hot-air ducting.
- Top or rear ducting connection.
- 20 kg pellet hopper.
- Maximum indicative autonomy up to 32 hours.
- A+ energy class.
- Italian 5-star environmental rating.
Slim design with glass door
Margot combines a space-saving structure with a more refined exterior than a conventional slim pellet stove.
The glass door, glossy black front and thick steel surround give the stove a contemporary appearance suitable for modern interiors.
Only 30 cm deep
With a depth of only 30 cm, Margot TC 6 is designed for installation in corridors, passage areas and other rooms where preserving usable space is important.
Its flush-to-wall design further reduces the overall installation footprint.
CC50 sealed combustion: what does it mean?
Margot TC 6 is a CC50 certified sealed pellet stove.
CC50 indicates that combustion chamber airtightness has been tested at a pressure difference of up to 50 Pa according to EN 16510.
Combustion air can therefore be supplied directly from outdoors rather than being taken from the installation room.
This is particularly useful in modern well-insulated buildings, low-energy homes and properties with controlled mechanical ventilation.
MyDisplay+ with built-in Wi-Fi
Margot TC 6 features MyDisplay+, Palazzetti's colour graphic display with built-in Wi-Fi as standard.
The system provides intuitive control of the stove and access to compatible connected functions within the Palazzetti ecosystem.
Zero Speed Fan and Silent operation
The variable-speed room-air fan features Zero Speed Fan.
Under suitable operating conditions, forced ventilation can be completely disabled and heat is distributed primarily through natural convection and radiation.
Palazzetti also describes this capability as Silent technology, designed to maximise acoustic comfort and reduce fan electricity consumption.
Optional Pro2 hot-air ducting
Margot TC 6 can be equipped with the optional Pro2 ducting kit.
The system allows warm air to be distributed to another room through an Ø80 mm duct, with either a top or rear connection.
When the appropriate kit is installed, Palazzetti's Air Pro System 2 uses independent fans for room heating and ducted air distribution. The manufacturer indicates ducting runs of up to 14 linear metres with an Ø80 mm duct, subject to correct system design and installation conditions.
Self Cleaning System
The Self Cleaning System automatically cleans the pellet burn pot by periodically discharging combustion residues.
Complete Burning System
The Complete Burning System promotes more complete pellet combustion and helps minimise residual ash production.
Speedy Clean
The latest-generation Speedy Clean system provides front access to the flue-gas circuit, simplifying routine maintenance.
Quick Start
Quick Start is designed to reduce pellet ignition time and help the stove reach operating conditions more quickly.
Pellet performance
Margot TC 6 delivers up to 6.1 kW nominal heat output and can modulate down to approximately 2.8 kW.
Nominal efficiency reaches 90.3%.
Pellet consumption ranges from approximately 0.63 to 1.38 kg/h, while the hopper has a capacity of 20 kg. Maximum indicative autonomy is up to approximately 32 hours.
Palazzetti Ecofire Margot TC 6 technical specifications
| Brand | Palazzetti |
| Range | Ecofire |
| Model | Margot TC 6 |
| Type | Slim sealed ventilated pellet stove |
| Fuel | Pellet |
| Nominal heat output | 6.1 kW |
| Minimum heat output | 2.8 kW |
| Nominal efficiency | 90.3% |
| Pellet consumption | 0.63 - 1.38 kg/h |
| Pellet hopper capacity | 20 kg |
| Maximum indicative autonomy | 32 h |
| Flue gas temperature at nominal output | 185 °C |
| Flue gas flow at nominal output | 4.6 g/s |
| CO at nominal output, 13% O₂ | 150 mg/Nm³ |
| Dust at nominal output, 13% O₂ | 10 mg/Nm³ |
| OGC at nominal output, 13% O₂ | 2 mg/Nm³ |
| Flue outlet | Ø80 mm |
| Combustion air inlet | Ø60 mm |
| Required chimney draught | 12 Pa (±2) |
| Width | 101 cm |
| Depth | 30 cm |
| Height | 104 cm |
| Weight | 125 kg |
| Cladding | Glass door, glossy black front and steel surround |
| MyDisplay+ | Standard |
| Wi-Fi | Standard |
| Zero Speed Fan / Silent | Yes |
| Self Cleaning System | Yes |
| Complete Burning System | Yes |
| Speedy Clean | Yes |
| Quick Start | Yes |
| Balanced Door | Yes |
| Optional hot-air ducting | Pro2, Ø80 mm |
| Duct position | Top or rear |
| Airtightness | CC50 – certified at 50 Pa according to EN 16510 |
| Energy class | A+ |
| Italian environmental rating | 5 stars D.M. 186 |
Installation and chimney system
Palazzetti Margot TC 6 uses an Ø80 mm flue outlet and an Ø60 mm combustion-air connection.
Palazzetti specifies a chimney draught of 12 Pa (±2 Pa).
The chimney system must be correctly designed and installation must be carried out by qualified personnel in accordance with current regulations and Palazzetti's technical instructions.
