Palazzetti Ecofire Vivi TC 6 US is a 6 kW sealed pellet stove with a top coaxial flue and combustion-air connection, circular painted-steel body, Total Black double-glazed door, cast-iron burn pot and Magnofix® firebox lining. It features MyDisplay+ with built-in Wi-Fi, Zero Speed Fan, T3 technology, Self Cleaning System, Complete Burning System, Speedy Clean and Quick Start. Optional Pro2 hot-air ducting. CC50, A+ energy class and Italian 5-star environmental rating.
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
Palazzetti Ecofire Vivi TC 6 US is a 6 kW sealed pellet stove combining an elegant circular design with a top coaxial flue and combustion-air connection.
The US – Upper Smoke configuration combines flue-gas evacuation and combustion-air intake in one coaxial system, reducing rear installation space.
The 2027 version is equipped with MyDisplay+ and built-in Wi-Fi, Total Black double glazing, T3 technology, a cast-iron burn pot, Magnofix® firebox lining, Self Cleaning System, Complete Burning System, Speedy Clean, Quick Start and Zero Speed Fan.
The US – Upper Smoke configuration provides a top connection for the chimney system.
The coaxial system combines flue-gas evacuation and combustion-air intake in a single connection.
The configuration is Ø80/130 mm, with the inner Ø80 mm duct used for flue gases and the outer section used for combustion air.
Vivi TC 6 US is a CC50 certified sealed pellet stove.
CC50 means that combustion-chamber airtightness is verified at a pressure difference of up to 50 Pa according to EN 16510.
Combustion air can therefore be supplied directly from outdoors rather than being taken from the installation room.
This is particularly relevant in modern well-insulated buildings, low-energy homes and properties with controlled mechanical ventilation. Installation compatibility must always be assessed by a qualified installer.

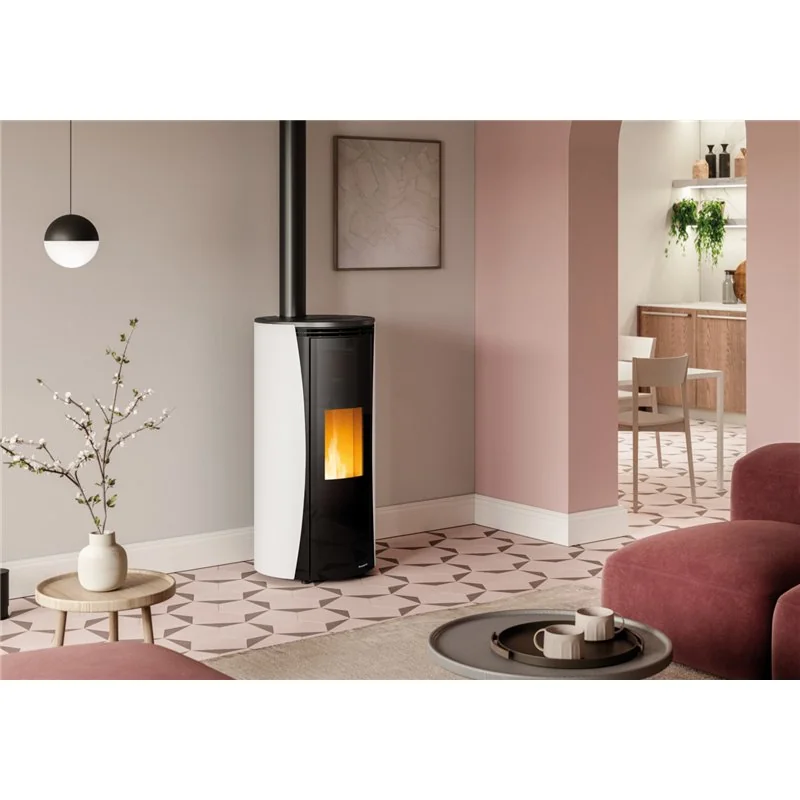

Vivi TC 6 US features an elegant circular painted-steel body and a double-glazed door.
The external aesthetic panel is made from black tempered glass that becomes transparent when the fire is burning.
The 2027 Vivi TC 6 US is supplied with MyDisplay+, Palazzetti's colour graphic display with Wi-Fi connectivity as standard.
The variable-speed room fan features Zero Speed Fan. At low and medium output levels, when operating conditions allow, forced ventilation can be completely switched off for quieter and more natural heat distribution.
Vivi TC 6 US uses Palazzetti's T3 technology, with four enlarged flue-gas tubes designed for efficient heat exchange and simplified cleaning.
The firebox features a cast-iron burn pot and Magnofix® internal lining.
The Self Cleaning System automatically cleans the pellet burn pot by periodically discharging combustion residues.
The Complete Burning System continuously reburns combustion residues, helping improve fuel utilisation while reducing residual ash and cleaning frequency.
The latest-generation Speedy Clean system provides front access to the flue-gas circuit, simplifying routine maintenance.
Quick Start is designed to reduce pellet ignition time and allow the stove to reach operating conditions more quickly.
Vivi TC 6 US can be equipped with the optional Pro2 ducting kit, allowing warm air to be distributed to another room through an Ø80 mm duct.
Vivi TC 6 US delivers a 6 kW nominal heat output and can modulate down to 2.5 kW.
Efficiency reaches approximately 90.5% at nominal output and 91% at partial load.
Pellet consumption ranges from approximately 0.57 to 1.38 kg/h. The hopper has a capacity of 16 kg, providing a maximum indicative burn time of approximately 28 hours.
| Brand | Palazzetti |
| Range | Ecofire |
| Model | Vivi TC 6 US |
| Type | Sealed ventilated and optionally ductable pellet stove |
| Version | US – Upper Smoke |
| Fuel | Pellet |
| Heat output range | 2.5 - 6 kW |
| Nominal heat output | 6 kW |
| Efficiency at nominal output | 90.5% |
| Efficiency at partial load | 91% |
| Pellet consumption | 0.57 - 1.38 kg/h |
| Pellet hopper capacity | 16 kg |
| Maximum indicative burn time | 28 h |
| Flue gas temperature | 99.7 - 197 °C |
| Flue gas mass flow | 3.1 - 4.1 g/s |
| CO at nominal output, 13% O₂ | 50 mg/Nm³ |
| Dust at nominal output, 13% O₂ | 7 mg/Nm³ |
| OGC at nominal output, 13% O₂ | 2 mg/Nm³ |
| Flue outlet | Ø80 mm |
| Top coaxial connection | Ø80/130 mm – flue + combustion air |
| Required chimney draught | 12 Pa ±2 |
| Width | 52 cm |
| Depth | 52 cm |
| Height | 110 cm |
| Weight | 106 kg |
| Burn pot | Cast iron |
| Firebox lining | Magnofix® |
| Door | Double glazed, Total Black outer glass |
| Airtightness | CC50 – certified at 50 Pa according to EN 16510 |
| MyDisplay+ | Yes, colour graphic display with built-in Wi-Fi |
| Zero Speed Fan | Yes |
| T3 technology | Yes |
| Self Cleaning System | Yes |
| Complete Burning System | Yes |
| Speedy Clean | Yes |
| Quick Start | Yes |
| Balanced Door | Yes |
| Optional hot-air ducting | Pro2, Ø80 mm |
| Energy class | A+ |
| Italian environmental rating | 5 stars D.M. 186 |
Vivi TC 6 US is designed for an Ø80/130 mm top coaxial connection, combining flue-gas evacuation and combustion-air intake.
Palazzetti specifies a chimney draught of 12 Pa ±2 Pa.
The chimney system, coaxial adapters and any hot-air ducting must be correctly designed and installed by qualified personnel in accordance with current regulations and Palazzetti's technical instructions.
International Shipping & Warranty
Please check product compatibility with a local installer before purchasing. For any further information, please contact our customer service. |
