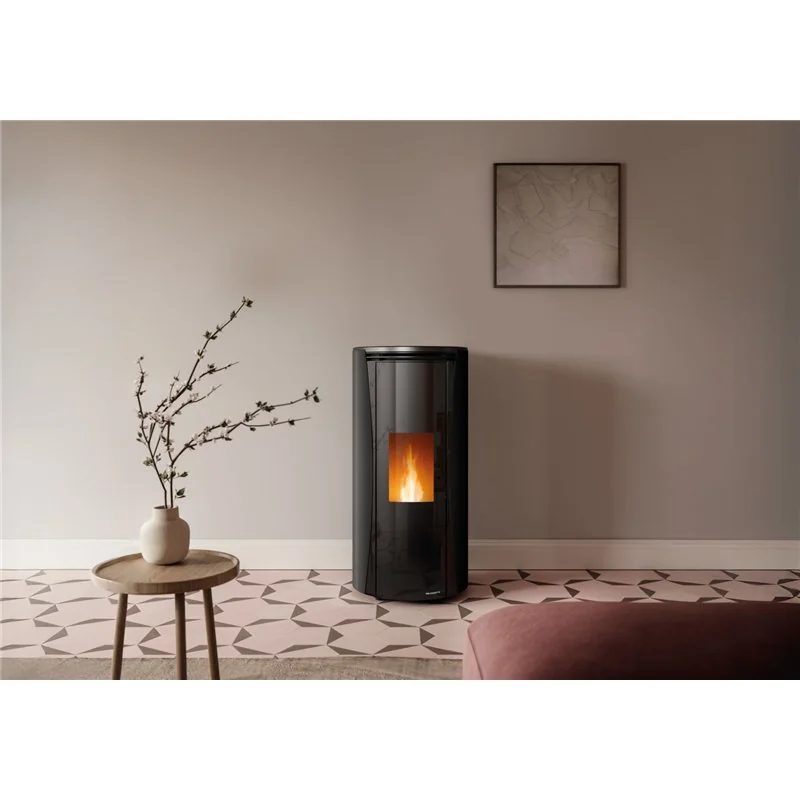

Palazzetti Ecofire Vivi TC 9 is a 9 kW sealed pellet stove with a circular painted-steel body, Total Black double-glazed door, cast-iron burn pot and Magnofix® firebox lining. It features MyDisplay+ with built-in Wi-Fi, Zero Speed Fan, T3 technology, Self Cleaning System, Complete Burning System, Speedy Clean and Quick Start. Optional Pro2 hot-air ducting. CC50, A+ energy class and Italian 5-star environmental rating.
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
Palazzetti Ecofire Vivi TC 9 is a 9 kW sealed pellet stove combining elegant circular styling with advanced combustion, automatic cleaning and smart-control technology.
The painted-steel body features a double-glazed door with an outer Total Black tempered-glass panel that becomes transparent when the fire is lit.
Vivi TC 9 is supplied with MyDisplay+ and built-in Wi-Fi and features Palazzetti's T3 platform, Zero Speed Fan, Self Cleaning System, Complete Burning System, Speedy Clean and Quick Start.
Vivi TC 9 features an elegant circular body and a double-glazed door. The external aesthetic panel is made from black tempered glass that becomes transparent when the fire is burning.
Vivi TC 9 is a CC50 certified sealed pellet stove.
CC50 means that combustion-chamber airtightness is verified at a pressure difference of up to 50 Pa according to EN 16510.
Combustion air can therefore be supplied directly from outdoors rather than being taken from the installation room.
This is particularly relevant in modern well-insulated buildings, low-energy homes and properties with controlled mechanical ventilation. Installation compatibility must always be assessed by a qualified installer.
Vivi TC 9 is supplied with MyDisplay+, Palazzetti's graphic display with Wi-Fi connectivity as standard.
The variable-speed room fan features Zero Speed Fan. At low and medium output levels, when operating conditions permit, forced ventilation can be completely switched off for quieter operation.
Vivi TC 9 uses Palazzetti's T3 technology, with four enlarged flue-gas tubes designed for efficient heat exchange and simplified cleaning.
The firebox features a cast-iron burn pot and Magnofix® internal lining.
The Self Cleaning System automatically cleans the pellet burn pot by periodically discharging combustion residues.
The Complete Burning System promotes more complete pellet combustion and helps minimise residual ash production.
The latest-generation Speedy Clean system provides front access to the flue-gas circuit, simplifying routine maintenance.
Quick Start is designed to reduce pellet ignition time and allow the stove to reach operating conditions more quickly.
Vivi TC 9 can be equipped with the optional Pro2 ducting kit, allowing warm air to be distributed to another room through an Ø80 mm duct.
Vivi TC 9 delivers 9 kW nominal heat output and can modulate down to approximately 2.5 kW.
Current Palazzetti product data states approximately 88.1% efficiency at nominal output.
Pellet consumption ranges from approximately 0.57 to 2.11 kg/h. The hopper has a capacity of 22 kg, providing a maximum indicative burn time of up to approximately 39 hours.
| Brand | Palazzetti |
| Range | Ecofire |
| Model | Vivi TC 9 |
| Type | Sealed ventilated and optionally ductable pellet stove |
| Fuel | Pellet |
| Nominal heat output | 9 kW |
| Partial-load heat output | 2.5 kW |
| Efficiency at nominal output | 88.1% |
| Efficiency at partial load | approx. 91% |
| Pellet consumption | 0.57 - 2.11 kg/h |
| Pellet hopper capacity | 22 kg |
| Maximum indicative burn time | 39 h |
| Flue gas temperature | 99.7 - 219 °C |
| Flue gas mass flow | 3.05 - 4.81 g/s |
| CO at 13% O₂ | 275 - 130 mg/Nm³ |
| Dust at nominal output, 13% O₂ | 10 mg/Nm³ |
| OGC at nominal output, 13% O₂ | 2 mg/Nm³ |
| Flue outlet | Ø80 mm |
| Combustion-air inlet | Ø60 mm |
| Width | 52 cm |
| Depth | 52 cm |
| Height | 110 cm |
| Weight | 100 kg |
| Burn pot | Cast iron |
| Firebox lining | Magnofix® |
| Door | Double glazed, Total Black outer glass |
| Airtightness | CC50 – certified at 50 Pa according to EN 16510 |
| MyDisplay+ | Yes, built-in Wi-Fi |
| Zero Speed Fan | Yes |
| T3 technology | Yes |
| Self Cleaning System | Yes |
| Complete Burning System | Yes |
| Speedy Clean | Yes |
| Quick Start | Yes |
| Balanced Door | Yes |
| Optional hot-air ducting | Pro2, Ø80 mm |
| Energy class | A+ |
| Italian environmental rating | 5 stars D.M. 186 |
Palazzetti Vivi TC 9 uses an Ø80 mm flue outlet and can draw combustion air directly from outdoors.
The chimney and any hot-air ducting system must be correctly designed and installed by qualified personnel in accordance with current regulations and Palazzetti's technical instructions.
International Shipping & Warranty
Please check product compatibility with a local installer before purchasing. For any further information, please contact our customer service. |
