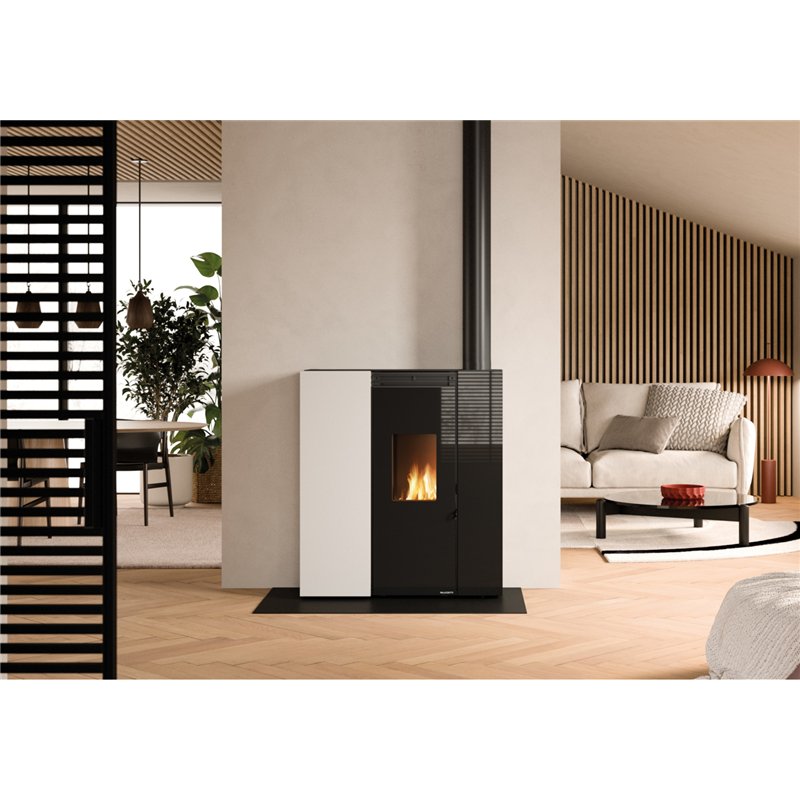

Palazzetti Ecofire Tiffany Air 10 US is a 10.2 kW slim sealed pellet stove, only 34 cm deep, designed for flush-to-wall installation and featuring an Ø80/130 mm top coaxial flue and combustion-air connection. It includes MyDisplay+ with built-in Wi-Fi, Zero Speed Fan, Self Cleaning System, Complete Burning System, Speedy Clean and Quick Start. Optional Air Pro System 2 or Air Pro System 3 allows hot air to be ducted to one or two additional rooms. CC50, A+ energy class and Italian 5-star environmental rating.
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
Palazzetti Ecofire Tiffany Air 10 US is a 10.2 kW slim sealed pellet stove designed to provide substantial heating output while requiring limited installation depth.
At only 34 cm deep, it can be installed flush against a wall and is particularly suitable for living rooms, corridors and passage areas.
The US – Upper Smoke configuration is specifically designed for an Ø80/130 mm top coaxial flue and combustion-air connection.
The US – Upper Smoke configuration distinguishes this model from the standard Tiffany Air 10.
The coaxial system combines flue-gas evacuation and combustion-air intake in a single top connection.
The system uses an Ø80/130 mm configuration, with the internal Ø80 mm duct used for flue gases and the outer section used for combustion-air intake.
Tiffany Air 10 US is designed as a genuine space-saving pellet stove.
Its depth of only 34 cm, combined with flush-to-wall installation and the top flue connection, helps minimise the overall installation footprint.
Tiffany Air 10 US is a CC50 certified sealed pellet stove.
CC50 indicates that combustion chamber airtightness has been tested at a pressure difference of up to 50 Pa according to EN 16510.
Combustion air can therefore be supplied directly from outdoors rather than being taken from the installation room.
This is particularly useful in modern well-insulated buildings, low-energy homes and properties with controlled mechanical ventilation.
Tiffany Air 10 US features MyDisplay+, Palazzetti's graphic display with built-in Wi-Fi as standard.
The system provides intuitive stove control and access to compatible connected functions within the Palazzetti ecosystem.
The variable-speed room-air fan features Zero Speed Fan, allowing forced ventilation to be completely disabled under the operating conditions specified by Palazzetti.
With the dedicated Pro2 kit for Tiffany, the stove can be configured with Air Pro System 2.
The system uses two independent fans: one for the installation room and one for a separate hot-air duct.
With the dedicated Pro3 kit, Tiffany Air 10 US can be configured with Air Pro System 3.
The system uses three independent fans: one for the main room and two for separate ducted branches.
The Self Cleaning System automatically cleans the pellet burn pot by periodically discharging combustion residues.
The Complete Burning System promotes more complete pellet combustion and helps minimise residual ash production.
The latest-generation Speedy Clean system provides front access to the flue-gas circuit, simplifying routine maintenance.
Quick Start is designed to reduce pellet ignition time and allow the stove to reach operating conditions more quickly.
Tiffany Air 10 US delivers up to 10.2 kW nominal heat output and can modulate down to approximately 3.4 kW.
Efficiency reaches approximately 89.3% at nominal output and 91% at partial load.
Pellet consumption ranges from approximately 0.77 to 2.34 kg/h, while the hopper has a capacity of 19 kg. Maximum indicative autonomy is approximately 25 hours.
| Brand | Palazzetti |
| Range | Ecofire |
| Model | Tiffany Air 10 US |
| Type | Slim sealed ventilated and ductable pellet stove |
| Version | US – Upper Smoke |
| Fuel | Pellet |
| Nominal heat output | 3.4 - 10.2 kW |
| Nominal efficiency | 89.3% |
| Partial-load efficiency | 91% |
| Pellet consumption | 0.77 - 2.34 kg/h |
| Pellet hopper capacity | 19 kg |
| Maximum indicative autonomy | 25 h |
| Flue gas temperature | 136 - 246 °C |
| Flue gas flow | 3.4 - 6.2 g/s |
| CO at nominal output, 13% O₂ | 50 mg/Nm³ |
| Dust at nominal output, 13% O₂ | 5 mg/Nm³ |
| OGC at nominal output, 13% O₂ | 2 mg/Nm³ |
| Flue outlet | Ø80 mm |
| Top coaxial connection | Ø80/130 mm – flue + combustion air |
| Nominal chimney draught | 12 Pa |
| Permitted chimney draught | 6 - 20 Pa |
| Width | 102 cm |
| Depth | 34 cm |
| Height | 117 cm |
| Weight | 140 kg |
| MyDisplay+ | Standard |
| Wi-Fi | Standard |
| Zero Speed Fan | Yes |
| Self Cleaning System | Yes |
| Complete Burning System | Yes |
| Speedy Clean | Yes |
| Quick Start | Yes |
| Balanced Door | Yes |
| Air Pro System 2 | Optional – one Ø80 mm ducted branch |
| Air Pro System 3 | Optional – two independent Ø80 mm ducted branches |
| Duct position | Top or rear |
| Airtightness | CC50 – certified at 50 Pa according to EN 16510 |
| Energy class | A+ |
| Italian environmental rating | 5 stars D.M. 186 |
Tiffany Air 10 US is designed for an Ø80/130 mm top coaxial connection, combining flue-gas evacuation and combustion-air intake.
Dedicated Palazzetti coaxial adapters are available according to the required installation configuration.
The chimney and any hot-air ducting system must be correctly designed and installed by qualified personnel in accordance with current regulations and Palazzetti's technical instructions.
