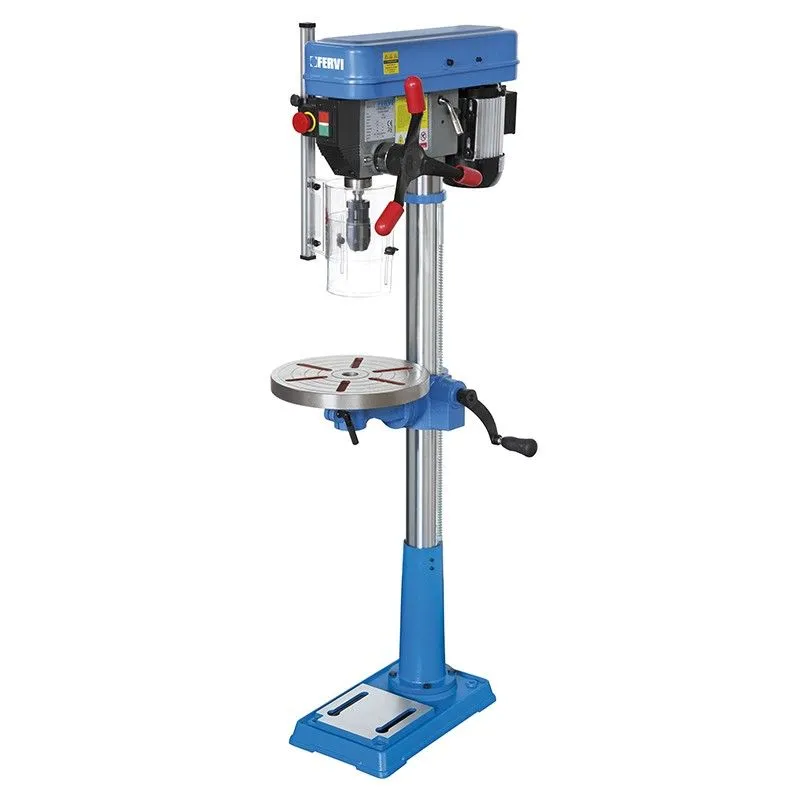

Fervi 0186 / 230V single-phase column drill
    • Fervi 0186 / 230V single-phase column drill
    • Fervi 0186 / 230V single-phase column drill
    • Fervi 0186 / 230V single-phase column drill

    Fervi 0186 / 230V single-phase column drill

    187.0186
    FERVI

    Fervi 0186 / 230V single-phase column drill

    Quantity

    help_outlineAsk about product
    Fervi 0186 / 230V single-phase column drill

    Fervi 0186 / 230V single-phase column drill

    Fervi 0186 / 230V single-phase column drill

    I accept privacy policy rules

      TRUSTED EXPERIENCE SINCE 1913

    Over 100 years of experience in hardware, tools and technical products.

      PHYSICAL STORE & CUSTOMER SUPPORT

    We also have a physical store in La Loggia (Turin): real people ready to help before and after your

      ORDERS PREPARED WITH CARE

    We prepare every order with care

    Description
    DRILL PRESS
    FERVI 0186 / 230V 20mm
    with belt drive and rotary tables


    Column drill for mechanical processing with belt drive
    Ideal for the small mechanical workshop, for modeling or prototypes
    Single-phase 0.65 Kw motor


    Technical features:

    Drilling capacity on cast iron with Ø 20 mm hole
    Max drilling capacity on steel with pre-hole (s235jr) Ø 16 mm
    Ø 12 mm continuous drilling capacity
    Keyless chuck CM2 - ø 16 mm
    Spindle travel 80 mm
    Height 1580 mm
    Table dimensions ø 290 mm
    Distance of spindle axis - 162 mm column
    Distance between machine nose and base 1110 mm
    Dinghy ø 40 mm
    Column ø 72 mm
    Approximate spindle speed (12) 280 ÷ 2380 rpm
    Single-phase motor 230 V 50 Hz 0.65 kW
    Weight 50 kg

    Endowment:
    - CM2 self-locking chuck 16mm
