Description

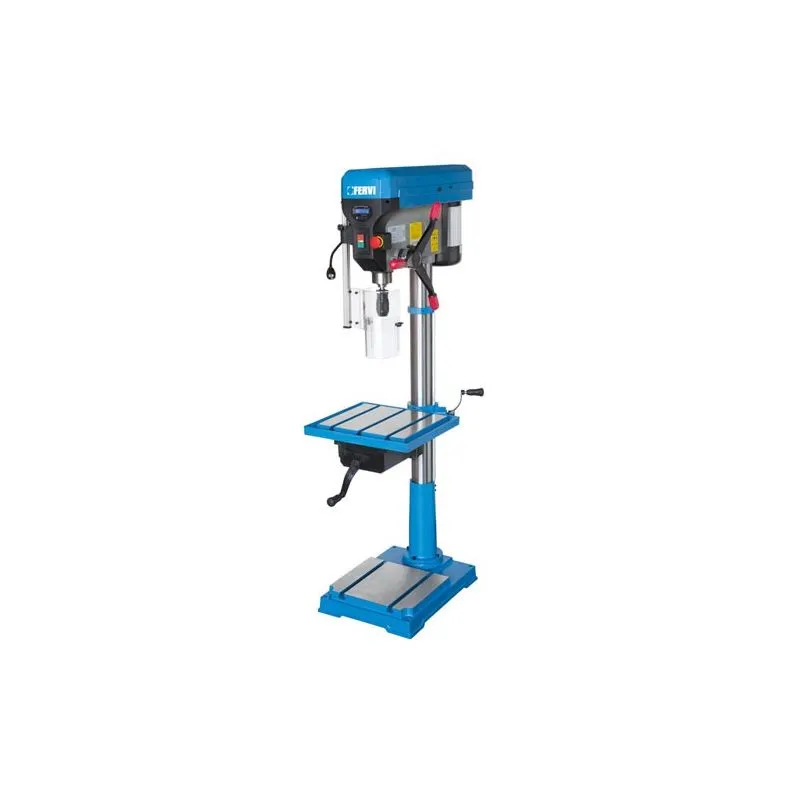

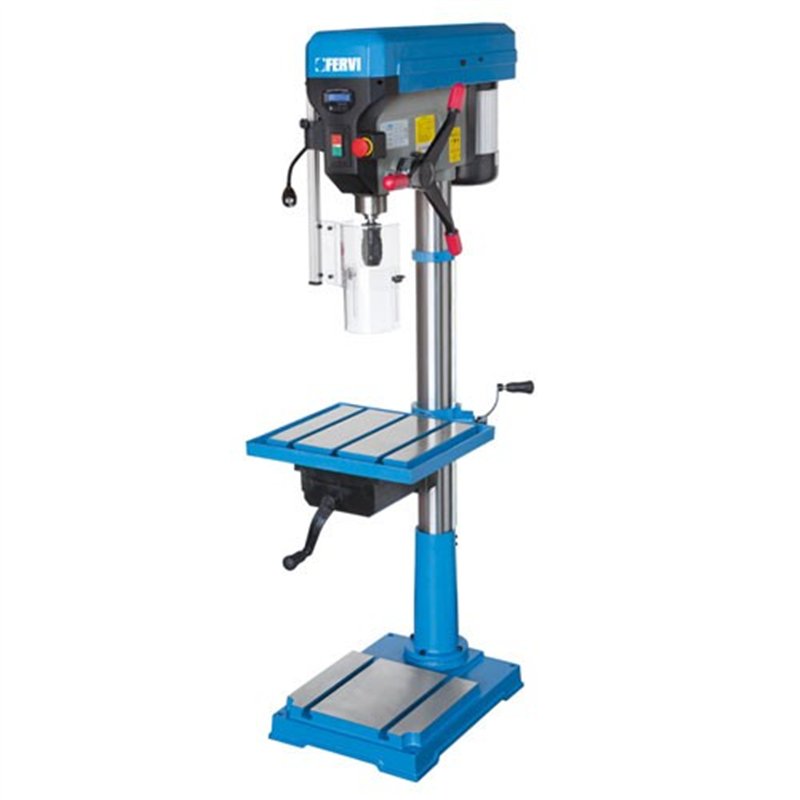

DRILL PRESS
FERVI 0252 / 230V
with integrated sliding vice


Column drill for mechanical machining with integrated vice; belt drive and digital depth gauge for maximum precision and ease of use
Ideal for the small mechanical workshop, for modeling or prototypes
Single phase 1.5 Kw motor
Available on option also with 400V three-phase motorization


Technical features:

- Vice 120 x 155 mm
- Quarry 14 mm
- Keyless chuck CM4 - ø 16 mm
- Table dimensions 470 x 420 mm
- Spindle travel 120 mm
- Height 1720 mm
- Distance from spindle to column 255 mm
- Distance between the machine and table nose 700 mm
- Dinghy ø 62 mm
- Colonnaø 92 mm
- Distance between machine nose and base 1220 mm
- Spindle speed (12) 150 ÷ 2450 rpm
- Single-phase 230 V 50 Hz 1.5 kW motor
- Weight 160 kg

EAN code 8012667254223


Endowment:
- Self-locking chuck 4 ÷ 16
- Integrated LED light
Product Details
187.0252
8012667254223
