Fervi radial column drill 0857 / 230V single-phase

187.0857
Rating

Fervi radial column drill 0857 / 230V single-phase

€838.00
Quantity

  Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

  WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

  Return policy

(edit with the Customer Reassurance module)

Description

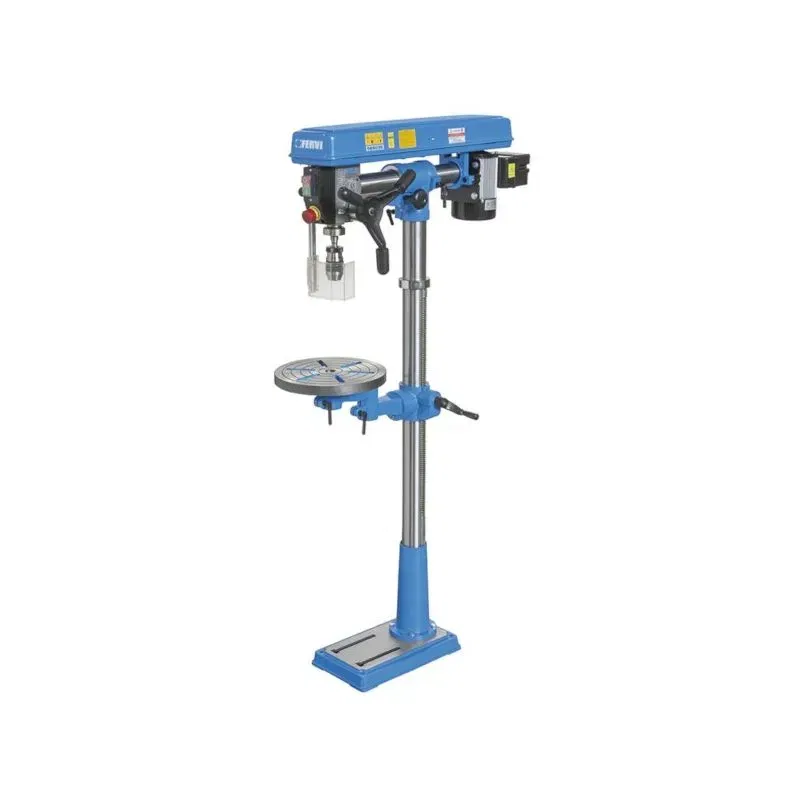

DRILL WITH RADIAL COLUMN
FERVI 0857
with swivel and tilting table


Radial column drill for machining with tilting table
The distance between spindle and column can be extended up to 430mm
Ideal for the small mechanical workshop, for modeling or prototypes
Single-phase 0.55 Kw motor


Technical features:

  • Drilling capacity on cast iron with Ø 20 mm hole
  • Max drilling capacity on steel with pre-hole (s235jr) Ø 16 mm
  • Ø 12 mm continuous drilling capacity
  • Keyless chuck CM2 - ø 16 mm
  • Spindle travel 80 mm
  • Height 1630 mm
  • Distance spindle-column 430 mm
  • 280 mm radial displacement
  • Table dimensions 305 mm
  • Head inclination 90º Left; 45º Dx
  • Dinghy ø 40 mm
  • Column ø 70 mm
  • Distance between machine nose and base 1285 mm
  • Approximate spindle speed (5) 500 ÷ 2450 rpm
  • Single-phase motor 230 V 50 Hz 0.55 kW
  • Weight 61 kg


Endowment:
- CM2 self-locking chuck 16mm
Product Details
187.0857
8012667309657
