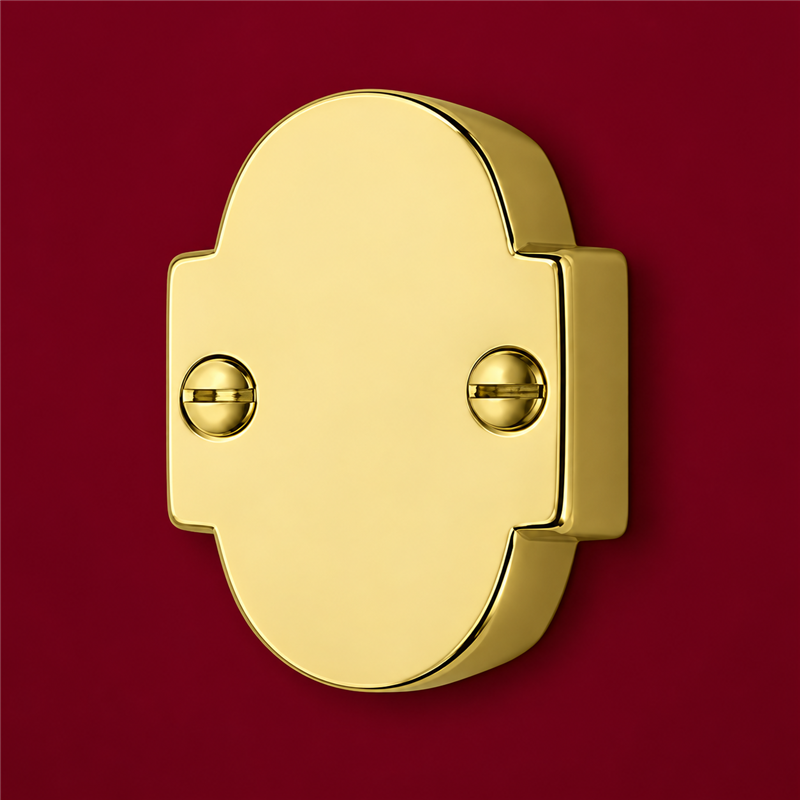

Colombo Design Ottocento KOT22PS – Oval Brass Guide for External Window Cremone Rods
The Ottocento KOT22PS is an oval brass rod guide from the Antologhia collection by Colombo Design, designed for traditional window locking systems with external rods operated by the KOT22AV cremone handle.
This oval fitting features visible mounting screws and is designed to coordinate with the external brass rods in the Ottocento range. Its overall dimensions are 32 × 32 × 11 mm.
Function and matching Ottocento components
The KOT22PS serves as a guide and support for external window locking rods, helping maintain their alignment and allowing them to slide during operation of the cremone handle.
It belongs to the Ottocento external rod system, comprising the KOT22AV cremone handle with MP mechanism and the brass rods KOT22A0160 and KOT22A0250, both with a 6.7 × 16.5 mm cross-section.
The KOT22PS rod guide is a separate component from the KOT22TO oval end fitting, which is designed for the end of the rod.
Dimensions and technical specifications
| Manufacturer | Colombo Design |
|---|
| Collection / model | Antologhia – Ottocento |
|---|
| Official product code | KOT22PS |
|---|
| Matteoda reference | 085.KOT22PS |
|---|
| Product type | Oval guide fitting for external window locking rods |
|---|
| Material | Brass |
|---|
| Height | 32 mm |
|---|
| Width | 32 mm |
|---|
| Depth | 11 mm |
|---|
| Associated rod cross-section | 6.7 × 16.5 mm |
|---|
| Associated cremone system | KOT22AV with MP mechanism |
|---|
| Standard finishes | Natural brass (ON), bronze (BR) |
|---|
| Origin | Made in Italy |
|---|
Dimensions are taken from the manufacturer's KOT22PS technical drawing. The 6.7 × 16.5 mm measurement refers to the matching external rods rather than the overall dimensions of the guide fitting.
Finishes and manufacturing
The Ottocento KOT22PS can be ordered in natural unlacquered brass (ON) and bronze (BR), matching the other components in the Ottocento external rod locking system.
Made in Italy, the Antologhia collection employs traditional brass-working methods with a significant element of manual craftsmanship and hand finishing. Natural finishes may gradually change in appearance and develop a characteristic patina, particularly unlacquered brass.
Important – Separate external rod accessoryThe KOT22PS is a rod guide fitting, ordered separately from the KOT22AV cremone handle, external rods and KOT22TO end fittings. Before ordering, check the number of guides required, rod arrangement and window dimensions. Matteoda customer service can assist with product configuration and estimated ordering lead times.
