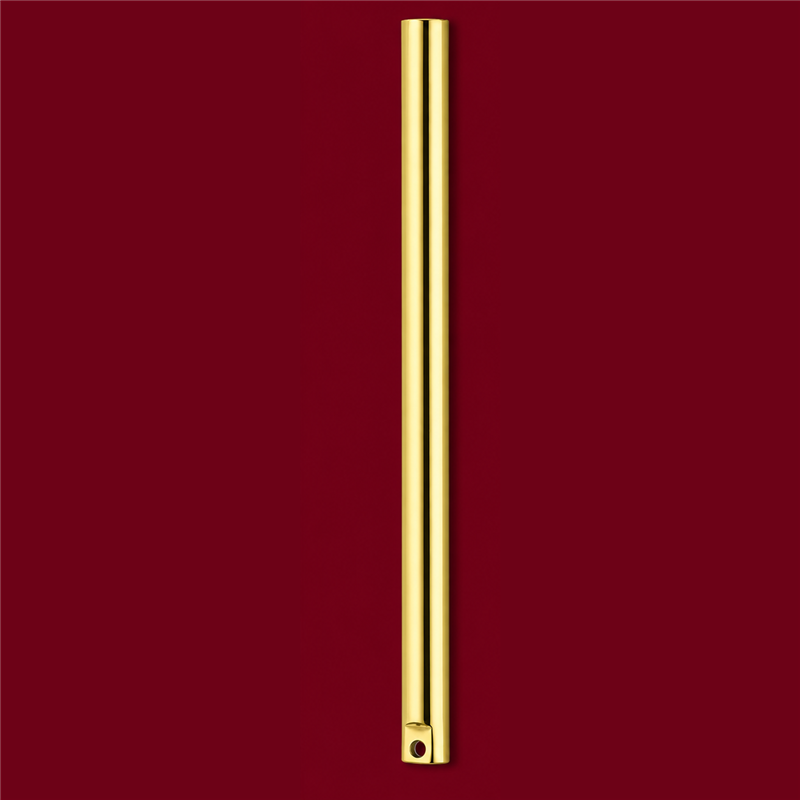

Colombo Design Ottocento – External Brass Rod for KOT22AV Window Cremone
The Ottocento external brass rod from the Antologhia collection by Colombo Design is designed for traditional window locking systems using the KOT22AV external rod cremone handle with an integrated MP operating mechanism.
The rod has a rectangular 6.7 × 16.5 mm cross-section and is offered in two lengths, identified by separate manufacturer product codes: KOT22A0160 and KOT22A0250.
Versions and technical specifications
Specification
KOT22A0160
KOT22A0250
Manufacturer
Colombo Design
Collection
Antologhia – Ottocento
Product type
External brass rod for window cremone
Material
Brass
Length
1600 mm
2500 mm
Cross-section
6.7 × 16.5 mm
Associated cremone
KOT22AV with MP mechanism
Standard finishes
Natural brass (ON), bronze (BR)
Origin
Made in Italy
Measurements are taken from the manufacturer's technical drawings. Rod length must be selected according to the window dimensions and the required external locking arrangement.
Window locking system and matching accessories
These rods are intended for use with the Ottocento KOT22AV window cremone, which incorporates the MP operating mechanism. The catalogue also identifies the following separately ordered fittings:
KOT22PS: oval guide fitting for the external rod.
KOT22TO: oval end fitting for the rod, with an offset end fitting configuration available on request.
The quantity and placement of rod guides must be determined according to rod length and the window installation. The cremone handle, guide fittings and end fittings are not included with the rod.
Finishes and manufacturing
The rods can be ordered in natural unlacquered brass (ON) and unlacquered bronze (BR), matching the coordinated Ottocento external rod hardware.
Made in Italy, the Antologhia collection employs traditional brass-working and finishing methods. Natural unlacquered finishes may gradually change in appearance and develop a characteristic surface patina, particularly natural brass.
Important – External rod sold separately
This product includes the external brass rod in the selected length and finish. The KOT22AV cremone handle, KOT22PS rod guides and KOT22TO end fittings must be ordered separately. Before ordering, check the required rod length, window configuration and associated fittings. Matteoda customer service can assist with product selection and estimated ordering lead times.
