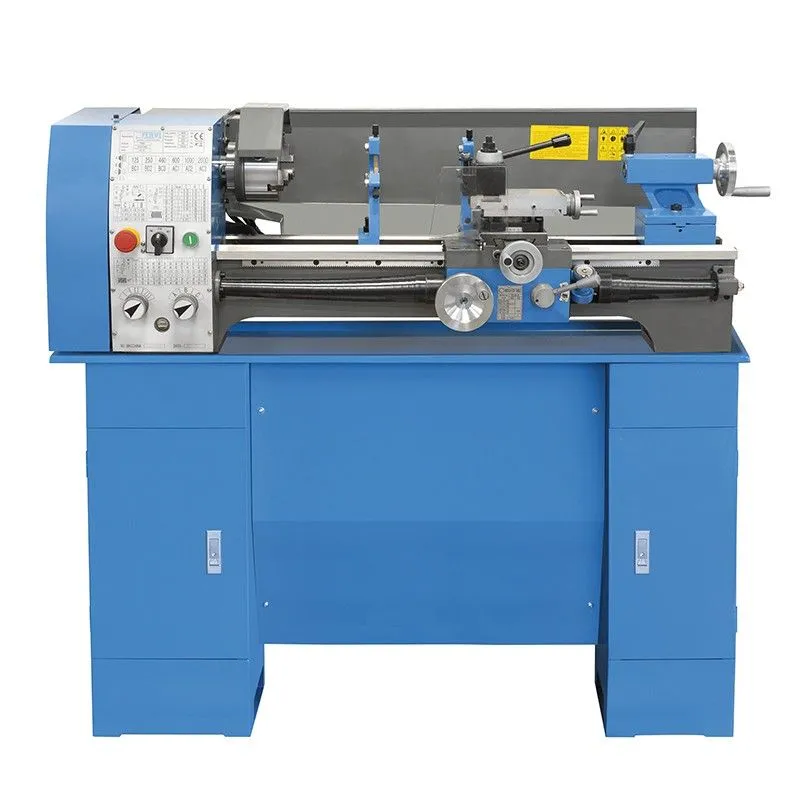

Fervi T660 D.280x660 parallel metal lathe
Fervi T660 D.280x660 parallel metal lathe
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care
Description
FERVI parallel lathe
T660
with semi-norton box
Versatile machine tool with professional lathe performance thanks to the semi-norton gearbox
Belt speed change.
Technical features:
- Center height 140 mm
- Max diameter on the bench 280 mm
- Max diameter on the carriage 165 mm
- Distance between centers 660 mm
- CM4 shaft cone
- Bar passage 26 mm
- Approximate spindle speed (6) 125 ÷ 2000 rpm
- Longitudinal feeds mm / rev 0.063 ÷ 0.35
- Metric threads 0.25 ÷ 3.5 mm
- Threads in inches 8 to 72 TPI
- CM2 tailstock taper
- Single-phase motor 230 V 50 Hz 0.75 kW
- Lathe dimensions 1325 x 550 x 1230 mm
- Weight 260 kg
Accessories supplied:
- Self-centering 3 + 3 ø 125 mm
- Chuck with 4 independent reversible jaws Ø 160 mm
- Fixed tailstock CM / MT 2
- Rotating tailstock CM / MT 2
- Flange ø 200 mm
- Mobile bezel
- Fixed bezel
- Thread comparator
- Mother screw protection
- Spindle protection
- Rear splash guard
- T0AA quick-change turret
- Partially assembled bench
Product Details
187.T660
8012667200169
