Description

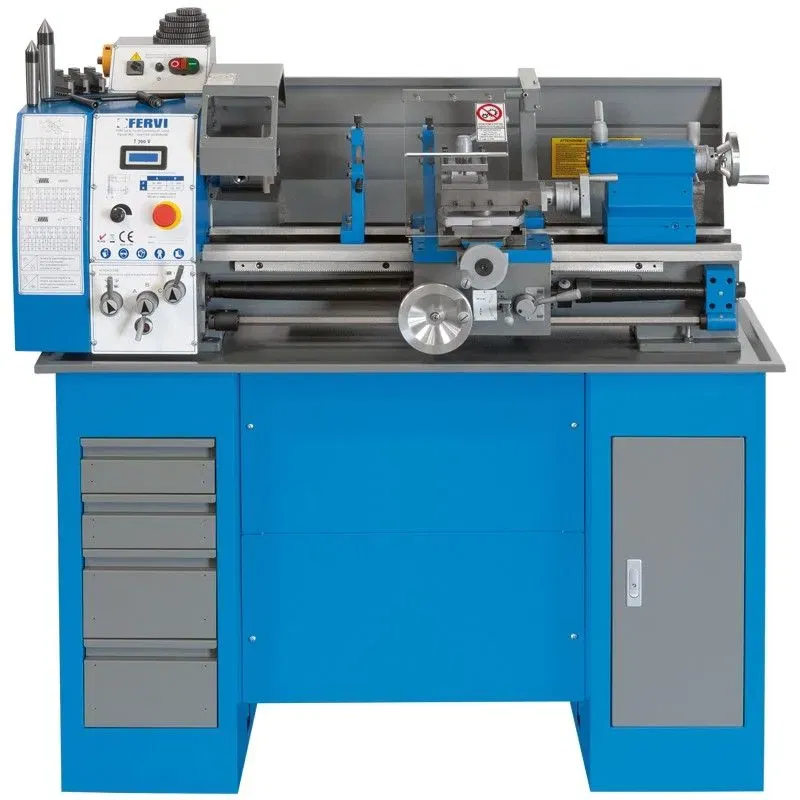

FERVI parallel lathe
T700V
with semi-norton box and variable speed
Versatile machine tool with professional lathe performance thanks to the semi-norton gearbox
Variable speed change, longitudinal and transverse feed and turning bar
Technical features:
- Center height 140 mm
- Max diameter on the bench 280 mm
- Max diameter on the carriage 170 mm
- Distance between centers 700 mm
- CM4 morse cone
- Bar passage 26 mm
- Approximate spindle speed 50 ÷ 850 rpm 110 ÷ 1800 rpm
- Longitudinal feeds mm / rev 0.07 ÷ 0.65
- Transverse advances mm / rev 0.03 ÷ 0.12
- Metric threads 0.2 to 3.5 mm
- Threads in inches 8 to 56 TPI
- CM2 tailstock taper
- Single-phase motor 230 V 50 Hz 1.1 kW
- Lathe dimensions 1129 x 690 x 1127 mm
- Weight 300 kg
Accessories supplied:
- Self-centering chuck 3 + 3 Ø 125 mm
- Mandrel with 4 independent reversible jaws Ø 125 mm
- Type C quick change chuck attachment
- Fixed tailstock CM 4
- Fixed tailstock CM 2
- Flange Ø 240 mm
- Mobile bezel
- Fixed bezel
- Mother screw protection
- Turret protection
- Spindle protection
- Rear splash guard
- Oil bath gears
- Thread comparator
- Fixed turret for 12 mm tools
- Rapid-locking tailstock trolley with 85 mm stroke
- Partially assembled bench
Product Details
187.T700V
8012667284060
