Description

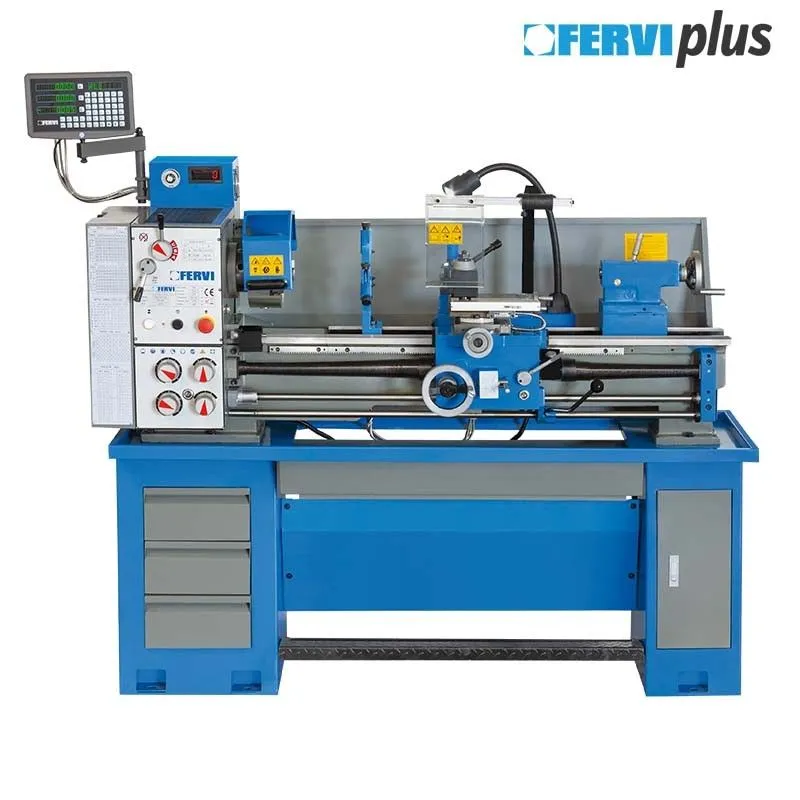

FERVI parallel lathe
T940 / 230VI3A
with semi-norton box, inverter variator and digital 3-axis dimension display
Versatile machine tool with professional lathe performance thanks to the semi-norton gearbox
Belt speed change, longitudinal and transverse feed and turning bar
Continuous speed inverter with inverter
It is equipped with a 3-axis dimension viewer
Technical features:
- Inverter with spindle speed adjustment 70 ÷ 1700 rpm
- Center height 160 mm
- Max diameter on the bench 320 mm
- Max diameter on the recess 460 mm
- Max diameter on the wagon 180 mm
- Distance between centers 940 mm
- CM5 shaft cone
- Bar passage 38 mm
- Spindle attack Camlock D1-4
- Longitudinal feeds mm / rev 0.053 ÷ 1.291
- Transverse advances mm / rev 0,011 ÷ 0,276
- Metric threads 0,4 ÷ 7 mm
- Threads in inches 4 ÷ 60 TPI
- CM3 tailstock taper
- Three-phase motor 230V 1.5 kW
- Single-phase power supply 200-240 V 50/60 Hz
- Lathe dimensions 650 x 1570 x 1300 mm
- Weight 465 kg
Accessories supplied:
- Self-centering chuck 3 + 3 Ø 160 mm
- Platform with 4 independent jaws Ø 200 mm with pins
- Fixed tailstock CM 5
- Fixed tailstock CM 3
- Rotating tailstock CM 3
- Reduction compass CM 5/3
- Flange Ø 240 mm
- Mobile bezel
- Fixed bezel
- Pedal brake
- Thread comparator
- Mother screw protection
- Turret protection
- Spindle protection
- Rear splash guard
- T0AE quick-change turret
- Lamp
Product Details
187.T940/230VI3A
8012667254346
