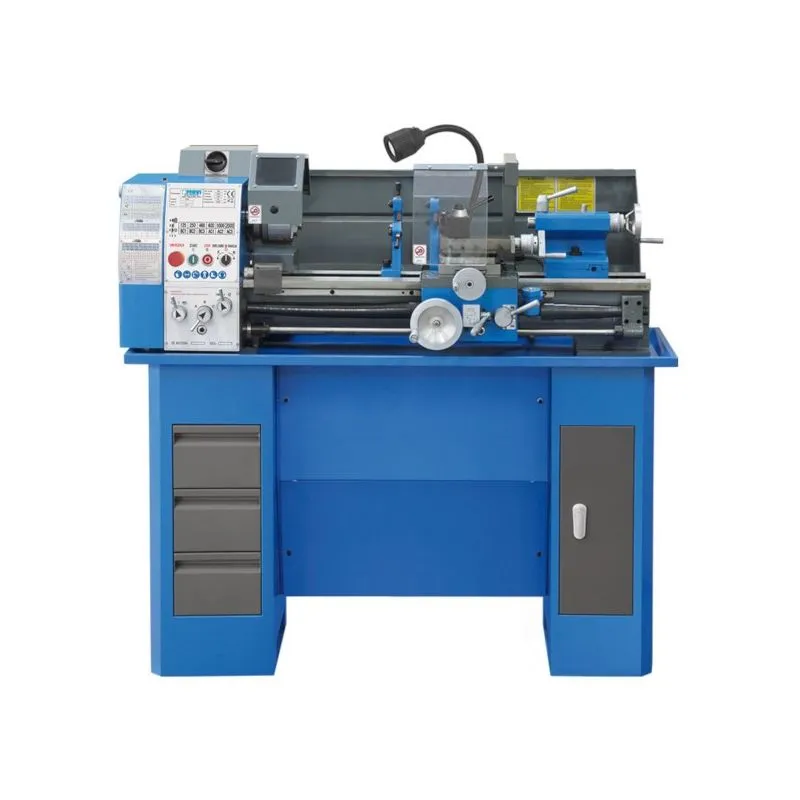

Fervi T750 D.290x750 metal parallel lathe
Fervi T750 D.290x750 metal parallel lathe
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care
Description
FERVI parallel lathe
T750
with semi-norton box
Versatile machine tool with professional lathe performance thanks to the semi-norton gearbox
Belt speed change, longitudinal and transverse feed and turning bar
Technical features:
- Height of centers 145 mm
- Max diameter on the bench 290 mm
- Max diameter on the carriage 175 mm
- Distance between centers 750 mm
- CM4 morse cone
- Bar passage 26 mm
- Approximate spindle speed (6) 125 ÷ 2000 rpm
- Longitudinal feeds mm / rev 0.07 ÷ 1.0
- Transverse advances mm / rev 0.0017 ÷ 0.25
- Metric threads (18) 0.2 ÷ 3.5 mm
- Inch threads (21) 8 ÷ 56 TPI
- CM3 tailstock taper
- Single-phase motor 230 V 50 Hz 1.1 kW
- Lathe dimensions 1450 x 720 x 1280 mm
- Weight 350 kg
Accessories supplied:
- Self-centering chuck 3 + 3 Ø 125 mm
- Mandrel with 4 independent reversible jaws Ø 125 mm
- Type C quick change chuck attachment
- Fixed tailstock CM 4
- Fixed tailstock CM 3
- Flange Ø 240 mm
- Mobile bezel
- Fixed bezel
- Clutch on turning bar
- Mother screw protection
- Turret protection with safety micro
- Spindle protection with safety micro
- Rear splash guard
- Oil bath gears
- Thread comparator
- T0AA quick-change turret
- Quick-lock tailstock trolley with 75 mm travel
- Led lamp
- Partially assembled bench
Product Details
187.T750
8012667312220
