Description

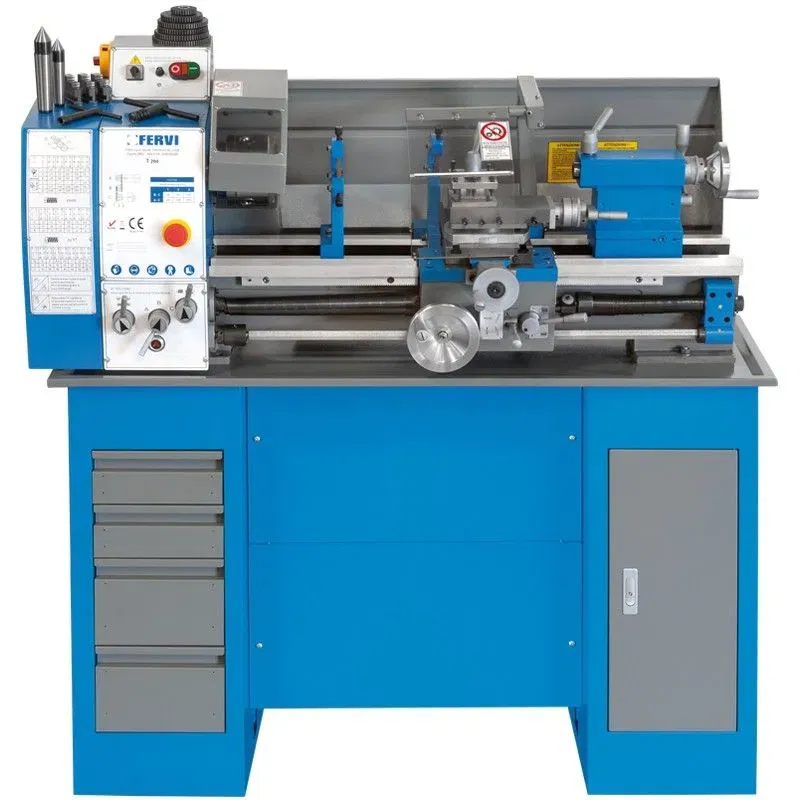

FERVI parallel lathe
T700
with semi-norton box


Versatile machine tool with professional lathe performance thanks to the semi-norton gearbox
Belt speed change, longitudinal and transverse feed and turning bar

Technical features:

  • Center height 140 mm
  • Max diameter on the bench 280 mm
  • Max diameter on the carriage 170 mm
  • Distance between centers 700 mm
  • CM4 morse cone
  • Bar passage 26 mm
  • Approximate spindle speed (6) 150 ÷ ​​2000 rpm
  • Longitudinal feeds mm / rev 0.07 ÷ 0.65
  • Transverse advances mm / rev 0.03 ÷ 0.12
  • Metric threads 0.2 to 3.5 mm
  • Threads in inches 8 to 56 TPI
  • CM2 tailstock taper
  • Single-phase motor 230 V 50 Hz 0.85 kW
  • Lathe dimensions 1129 x 690 x 1127 mm
  • Weight 300 kg
Accessories supplied:

  • Self-centering chuck 3 + 3 Ø 125 mm
  • Mandrel with 4 independent reversible jaws Ø 125 mm
  • Type C quick change chuck attachment
  • Fixed tailstock CM 4
  • Fixed tailstock CM 2
  • Flange Ø 240 mm
  • Mobile bezel
  • Fixed bezel
  • Mother screw protection
  • Turret protection
  • Spindle protection
  • Rear splash guard
  • Oil bath gears
  • Thread comparator
  • Fixed turret for 12 mm tools
  • Rapid-locking tailstock trolley with 85 mm stroke
  • Partially assembled bench
