Parallel lathe for metal Fervi T900I inverter D.320x900
Parallel lathe for metal Fervi T900I inverter D.320x900
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
Description

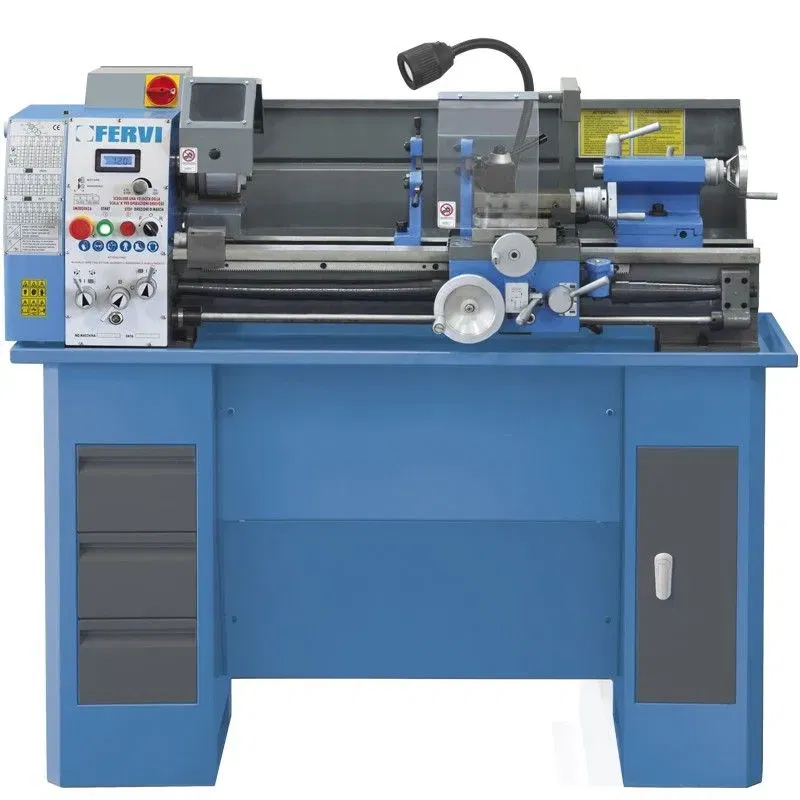

FERVI parallel lathe
T900I
with semi-norton box and inverter variator
Versatile machine tool with professional lathe performance thanks to the semi-norton gearbox
Belt speed change, longitudinal and transverse feed and turning bar
Continuous speed inverter with inverter
Technical features:
- Inverter with spindle speed adjustment 75 ÷ 500/300 ÷ 2000 rpm
- Center height 160 mm
- Max diameter on the bench 320 mm
- Max diameter on the wagon 210 mm
- Distance between centers 900 mm
- CM5 morse cone
- Bar passage 38 mm
- Longitudinal feeds mm / rev 0.07 ÷ 1.0
- Transverse advances mm / rev 0.0017 ÷ 0.25
- Metric threads (18) 0.2 ÷ 3.5 mm
- Inch threads (21) 8 ÷ 56 TPI
- CM3 tailstock taper
- Single-phase power supply 200-240 V 50/60 Hz
- Three-phase 230V 1.1 kW motor
- Lathe dimensions 1600 x 750 x 1300 mm
- Weight 390 kg
Accessories supplied:
- Self-centering chuck 3 + 3 Ø 160 mm
- Chuck with 4 independent reversible jaws Ø 160 mm
- Camlock D1-4
- Fixed tailstock CM 5
- Fixed tailstock CM 3
- Flange Ø 240 mm
- Mobile bezel
- Fixed bezel
- Clutch on turning bar
- Mother screw protection
- Turret protection with safety micro
- Spindle protection with safety micro
- Rear splash guard
- Oil bath gears
- Thread comparator
- T0AA quick-change turret
- Quick-lock tailstock trolley with 75 mm travel
- LED lamp
- Partially assembled bench
Product Details
187.T900I
8012667312251
