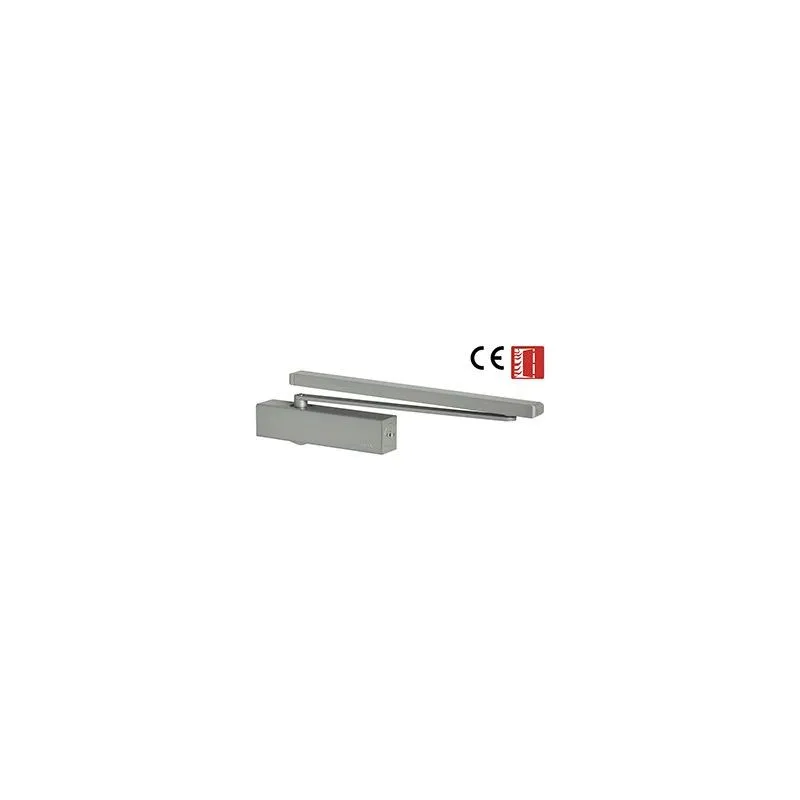

    Cisa door closer D6200 multi-arm cam sled arm

    D7200.04.0.97

    Cisa door closer D6200 multi-arm cam sled arm

    Colour
    €268.85
    Quantity

      Buy with confidence

    WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

      WE SHIP WORLDWIDE

    WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

      Return policy

    (edit with the Customer Reassurance module)

    Description
    CISA door closer slide arm
    with cams
    D6200 series

    The HE D6200 door closer applies the cam technology to a compact body, combining great performance with a pleasant aesthetic impact.

    Easy to open.
    The cam technology and the slide arm make the door closer extremely efficient especially in the initial phase of the push, when the required driving force is greater, allowing extreme ease of opening compared to traditional door closers with rack and pinion technology. All this enclosed in a very compact body, for an optimal aesthetic result.

    Installation versatility.
    The cam technology offers the possibility of applying the door closer to the door also for doors that open to the outside, avoiding the assembly of the upturned door closer and allowing a better aesthetics of the entire product.
    Quick and easy installation with adhesive template and mounting bracket

    Versatility of the range
    Multi-strength version (EN 2-4) allows installation on doors from 850 to 1100 mm up to 80 kg in weight.
    The CE version is suitable to be applied on fire doors up to 950 mm for 60 kg of weight.

    Easy adjustment.
    The sliding casing allows easy access to the closing and final stroke speed adjustment valves located on the front of the door closer.

    Door control and safeguard.
    The closing speed and final stroke adjustment valves allow accurate control of door performance.
    The version with arm with stop is suitable for those installations that need to keep the door in a certain position in total safety.
    The versions equipped with an opening brake (backcheck) allow the structure of the door to be safeguarded in the event of improper use of the same.

    TECHNICAL FEATURES
    Monoblock body with slide cover
    Steel slide arm with or without stop
    Cam operating mechanism, allows to reduce the force required when opening the door.
    The CE version (EN3) is suitable to be applied on fire doors up to 950 mm for 60 kg of weight.
    Control valves with thermostatic device

    ADJUSTMENTS
    Adjustment of closing force EN 2-4.
    Closing speed adjustment from 120˚ to 7 °.
    Final stroke adjustment in the last section (7 °) to compensate for the presence of gaskets and latches.
    Brake adjustment in opening to prevent damage to the door, hardware and adjacent walls, due to excessive thrust force when opening. The opening angle can be adjusted from 70 ° to 180 °.
    Adjustment of mechanical stop from 80˚ - 120˚

    SUPPLIED
    Screws
    Adhesive templates

    FINISHES
    Fin. 97 Aluminum

    REGULATIONS
    CE marking in compliance with the EN 1154 standard
    Product Details
    D7200.04.0.97

    Specific References

    ean13
    8015345892274
