90° Tee fitting IAT9 ISOAIR INOX Double wall flue
  • 90° Tee fitting IAT9 ISOAIR INOX Double wall flue

90° Tee fitting IAT9 ISOAIR INOX Double wall flue

IAT980
Rating

ISOAIR INOX double wall flue - IAT9 De Marinis - 90° T fitting

Diametro
€87.75
€70.20 Save 20%
Quantity

  Buy with confidence

WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE

  WE SHIP WORLDWIDE

WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS

  Return policy

(edit with the Customer Reassurance module)

Description
90 ° T-FITTING
STAINLESS STEEL CHIMNEY - DOUBLE WALL
ISO AIR INOX SYSTEM

IsoAIR INOX is the air insulated double wall flue system with internal wall in AISI 316 stainless steel and external wall in AISI304BA stainless steel; the ideal choice for outdoor installations that combines product quality, efficiency and durability
The absence of insulation reduces the overall dimensions to just 2 cm more than the nominal diameter of the internal smoke duct
Mechanical joint with locking collar sealing gasket supplied as standard, practical and compatible with all De Marinis products.
It can be combined with any type of generator with maximum operating pressure of 200Pa and operating temperatures up to 200 ° C (traditional or condensing gas boilers, pellet stoves and boilers, kitchen and extractor hoods, and so on).
The whole ISOAIR INOX line is certified according to European standard EN-1856-1: 2009 and is guaranteed for 10 years

The T-fitting allows the connection between the vertical flue and the horizontal smoke channel


Designation: Chimney system EN 1856-1: 2009

Temperature class: T200 (with gasket)
Pressure class: P1 (with gasket)
Condensation resistance: W.
Corrosion resistance class: V2 (solid and liquid fuels)
Material type: L50040 / 50 Internal wall in Aisi 316 stainless steel - External wall in Aisi 304BA stainless steel

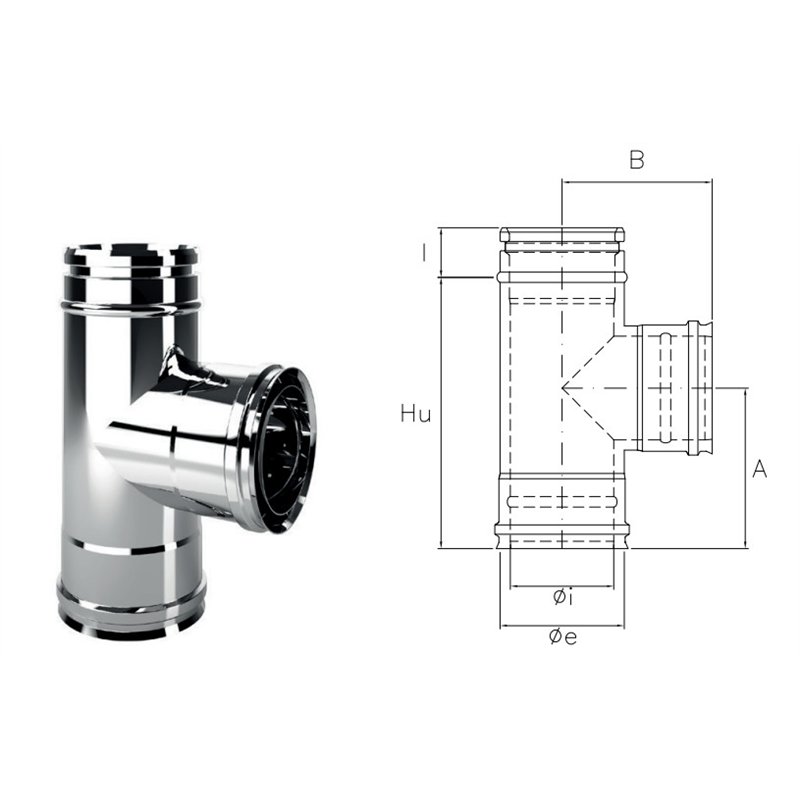

  Cod. Øi Øe Hu A B I
Acciaio Inox IAT980 80 100 195 120 115 45
Acciaio Inox IAT9100 100 120 245 145 125 45
Acciaio Inox IAT9130 130 150 275 160 140 45
Acciaio Inox IAT9160 160 180 305 175 155 45
Acciaio Inox IAT9180 180 200 325 185 165 45
Acciaio Inox IAT9200 200 220 345 195 175 45
Acciaio Inox IAT9250 250 270 445 245 200 45

Termini consegna materiale : 1 settimana

Certificazione : KIWA

Garanzia: 10 Anni
