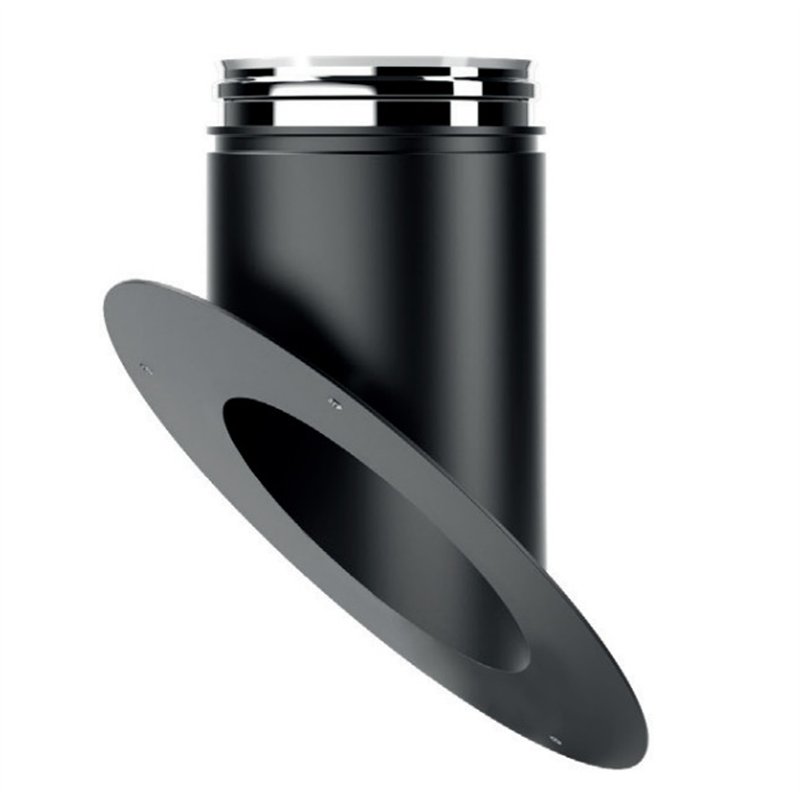

De Marinis DESIGN SDRT45E 45° telescopic cover plate for inclined flue pipe penetrations through walls and ceilings. Its telescopic construction with 45° connection adapts to the penetration geometry and provides a neat finish around the pipe. Made from 2 mm carbon steel with a matt black high-temperature finish, secured with fixing plugs and supplied with felt. Available in Ø 120, 130, 140, 150, 160, 180 and 200 mm diameters.
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
The De Marinis DESIGN SDRT45E 45° telescopic cover plate is an accessory designed to finish inclined flue pipe penetrations through walls and ceilings in installations for wood-burning stoves, fireplaces and biomass appliances.
Its telescopic construction with 45° connection allows the component to adapt to the geometry of an inclined pipe penetration.
The SDRT45E is particularly suitable for installations where the vertical chimney section is positioned coaxially with the appliance and the connecting flue passes through a wall or ceiling at an angle.
It is manufactured from 2 mm carbon steel with a matt black high-temperature finish matching the pipes and accessories of the De Marinis DESIGN range.
The cover plate is secured using fixing plugs and is supplied with felt. It is available in nominal diameters Ø 120, 130, 140, 150, 160, 180 and 200 mm.
The SDRT45E is used where a connecting flue passes through a wall or ceiling at approximately 45° and a neat finishing element is required around the pipe penetration.
An inclined penetration creates a more complex opening than a perpendicular flue pipe passage.
The SDRT45E configuration is specifically designed to provide more effective coverage around this type of penetration.
The component fits around the outside of the pipe and does not form part of the direct flue gas path.
The distinctive feature of the SDRT45E is the combination of a telescopic construction with a geometry designed for a 45° penetration.
This allows the component to accommodate the depth of the penetration area while providing a more complete finish than a conventional surface cover plate.
Dimension H varies according to nominal diameter, from 265 mm for Ø120 up to 305 mm for Ø200.
Important: the SDRT45E is a finishing accessory. It does not replace any certified penetration, insulation or protection system required where combustible materials are present and must not be used to reduce prescribed safety clearances.
The SDRT45E is secured to the supporting surface using fixing plugs suitable for the wall or ceiling material.
The component is also supplied with felt, according to the manufacturer's configuration.
The fixing system must keep the cover plate stable without placing improper mechanical loads on the flue pipe or interfering with adjacent joints.
The SDRT is a telescopic cover plate intended for conventional wall and ceiling penetrations.
The SDRT45E instead features a specific 45° connection for inclined pipe penetrations.
The correct version should therefore be selected according to both the flue pipe diameter and the actual penetration angle.
The SDRT45E is designed for use with De Marinis DESIGN flue pipes.
The DESIGN range is manufactured from 2 mm carbon steel with a matt black high-temperature finish and is intended mainly for indoor installations with fireplaces and wood-burning stoves.
For correct dimensional compatibility, select the cover plate with the same nominal Øn diameter as the flue pipe.
The table below lists the available SDRT45E 45° telescopic cover plate variants. All dimensions are expressed in millimetres.
Øn indicates the nominal pipe diameter, H the overall height of the telescopic cover plate and Ød the external flange diameter specified by De Marinis.
| Finish | De Marinis code | Øn (mm) | H (mm) | Ød (mm) |
|---|---|---|---|---|
| Matt black | SDRT45E120 | 120 | 265 | 228 |
| Matt black | SDRT45E130 | 130 | 270 | 238 |
| Matt black | SDRT45E140 | 140 | 275 | 248 |
| Matt black | SDRT45E150 | 150 | 280 | 258 |
| Matt black | SDRT45E160 | 160 | 285 | 268 |
| Matt black | SDRT45E180 | 180 | 295 | 288 |
| Matt black | SDRT45E200 | 200 | 305 | 308 |
Technical note: SDRT45E dimension H increases progressively with nominal diameter: 265 mm for Ø120, 270 mm for Ø130, 275 mm for Ø140, 280 mm for Ø150, 285 mm for Ø160, 295 mm for Ø180 and 305 mm for Ø200. External diameter Ød ranges from 228 to 308 mm. Always refer to the technical drawing included on the product page.
Comparing the pipe diameter, H dimension, Ød, 45° penetration angle and technical drawing helps verify the required installation dimensions.
The SDRT45E is positioned around the flue pipe where it passes through the wall or ceiling at an inclined angle.
It is secured using fixing plugs suitable for the supporting material. The supplied felt should be retained according to the manufacturer's intended configuration.
The cover plate must not interfere with flue pipe joints and must not be used as a structural support for the connecting flue.
Installation must be carried out by qualified personnel in accordance with De Marinis instructions, appliance requirements and applicable technical regulations.
