Security lock for armored door
Mottura 89.Y515MAS MASTER
Triple with 1/2 turn
double bit key

Triple with half turn operated by the handle square and the key

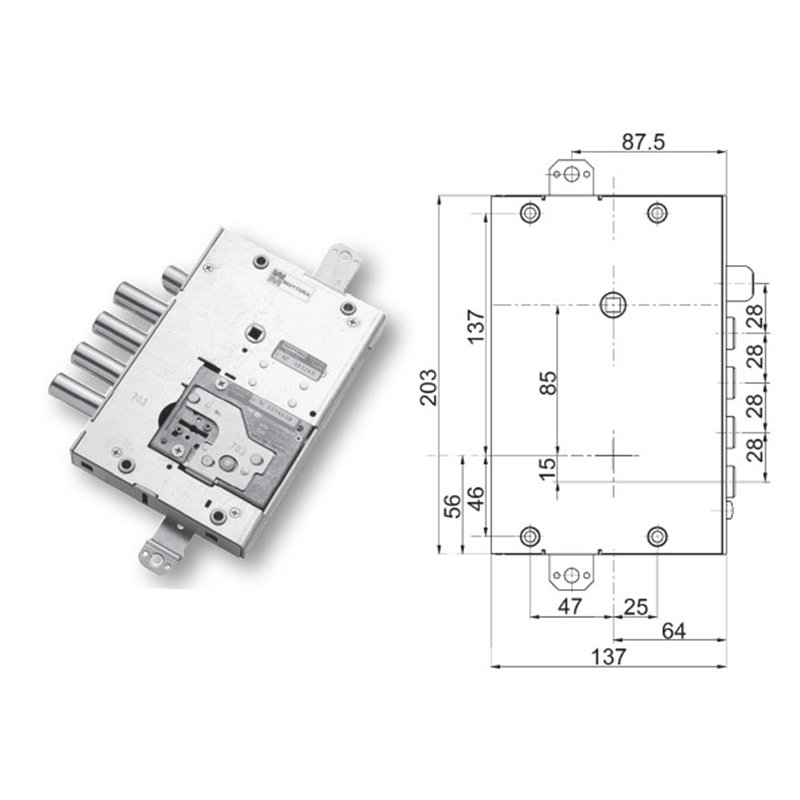

Box size 137x203
Key entry mm.64
Bolt centre distance mm.28
Rod stroke mm.20
Bolt stroke mm.36
3 double bit keys 50mm supplied
Reversible 1/2 turn
Re-codeable REPLAY core
ANTIDECO DUE system effective against lock picks and 'Bulgarian keys'
RIGHT OR LEFT hand version

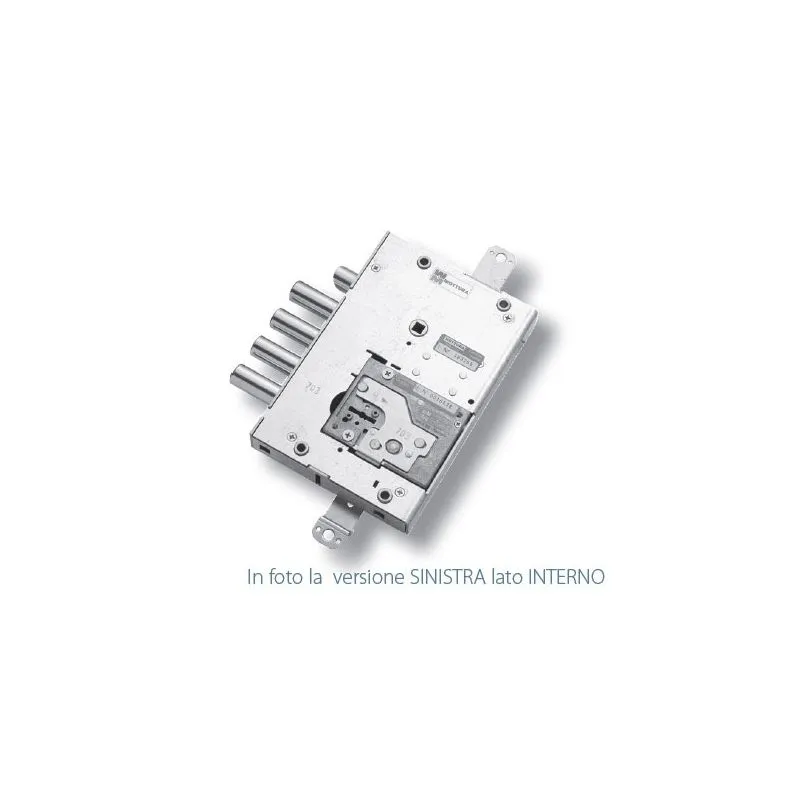

(the photo refers to the LEFT version)

Important note:

The 'SPARE PART' armored door locks are SPECIAL items that are produced TO ORDER
Therefore delivery may take longer than the standard terms
We ask customers to CHECK carefully the dimensions and version of the lock before proceeding with the order as the products WILL NOT BE REPLACED or WITHDRAWN
Our technical service is available to help you choose the product
Withdrawal CANNOT be requested on this product
