ASSA ABLOY DC300 adjustable force EN 3–6 / EN 1–3, for doors up to 1400 mm. EN 1154 certified, suitable for fire and smoke doors.
Buy with confidence
WE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDE
WE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy
(edit with the Customer Reassurance module)

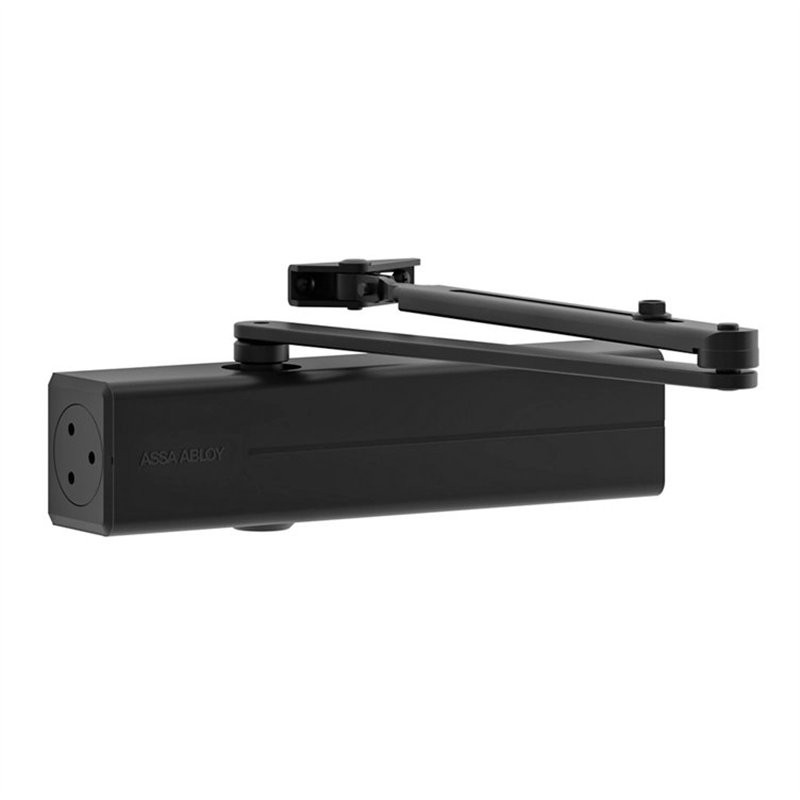

The DC300 is a rack-and-pinion door closer with L190 link arm or G195/G193 guide rail, designed for single-leaf doors up to 1400 mm (link arm) or 950 mm (guide rail).
Closing force is adjustable EN 3–6 with link arm and EN 1–3 with guide rail.
Certified EN 1154, suitable for fire and smoke doors.
Independent front-facing metal valves allow adjustment of closing speed, latching speed, and backcheck. Backcheck is standard (not available in parallel arm installation).
With L191 hold-open arm, hold-open can be enabled/disabled, adjustable between 75° and 120° (not for fire doors).
Compact dimensions 60 × 47 × 260 mm.
| Tipo | Rack-and-pinion door closer |
| Forza di chiusura | EN 3–6 (link arm), EN 1–3 (guide rail) |
| Larghezza porta max | 1400 mm (link arm), 950 mm (guide rail) |
| Angolo di apertura | Up to 180° |
| Backcheck | Adjustable >75° |
| Velocità di chiusura | 180°–15° adjustable |
| Colpo finale | 15°–0° adjustable |
| Fermo (L191) | 75°–120° adjustable |
| Idoneità tagliafuoco | Yes (no hold-open) |
| Dimensioni (H × P × L) | 60 × 47 × 260 mm |
| Certificazione | EN 1154, CE |
