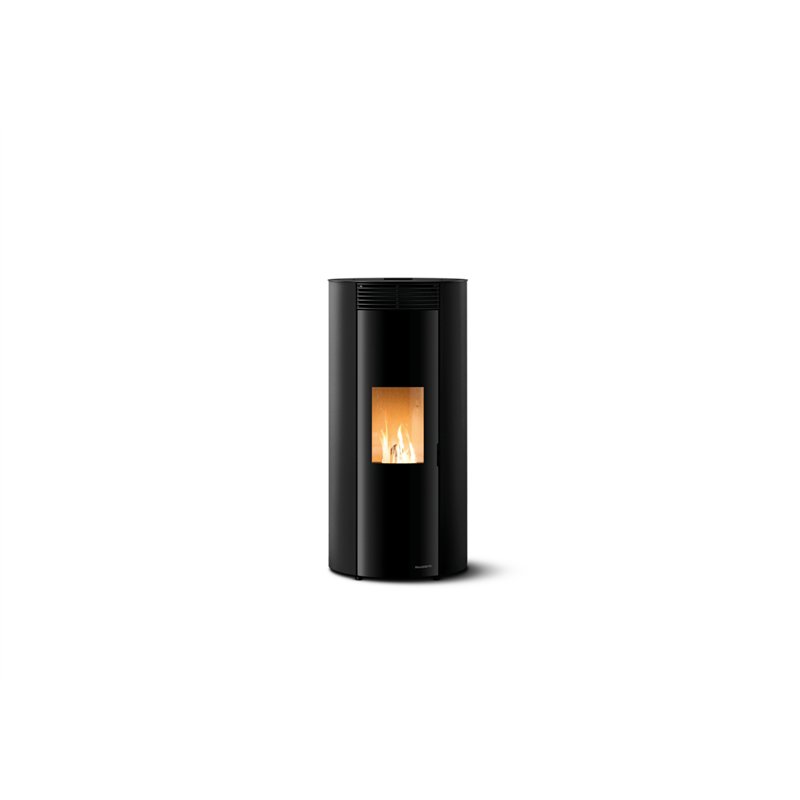

Palazzetti Ecofire Emily TC 9: compact 9 kW sealed pellet stove

Palazzetti Ecofire Emily TC 9 is a compact 9 kW sealed pellet stove featuring a rounded design, painted-steel cladding and a double-glazed door.

Its compact dimensions make it suitable for homes where installation space is limited, while Palazzetti's T3 platform combines advanced combustion, automatic cleaning and comfort technologies.

Why choose Palazzetti Emily TC 9

• 9 kW nominal heat output.
• Modulation down to approximately 2.5 kW.
• Sealed combustion design.
• CC50 – certified airtightness at 50 Pa according to EN 16510.
• Direct outdoor combustion-air intake capability.
• Compact dimensions: 53 × 53 × 110 cm.
• Double-glazed door.
• Balanced Door.
• Zero Speed Fan / Silent.
• T3 technology.
• Self Cleaning System.
• Complete Burning System.
• Speedy Clean.
• Quick Start.
• Star pellet-feed system.
• Optional Pro2 Ø80 mm hot-air ducting.
• Optional Universal Gateway.
• 22 kg pellet hopper.
• A+ energy class.
• Italian 5-star environmental rating.

CC50 sealed combustion: what does it mean?

Emily TC 9 is a CC50 certified sealed pellet stove.

CC50 indicates that combustion chamber airtightness has been tested at a pressure difference of up to 50 Pa according to EN 16510.

Combustion air can therefore be supplied directly from outdoors rather than being taken from the installation room.

This is particularly useful in modern well-insulated buildings, low-energy homes and properties with controlled mechanical ventilation. Actual installation compatibility must always be assessed by a qualified installer.

Zero Speed Fan and Silent operation

The variable-speed room-air fan features Zero Speed Fan.

At low and medium output levels, when operating conditions allow, forced ventilation can be switched off completely. Heat is then distributed mainly through natural convection and radiation for quieter operation.

T3 technology

Emily uses Palazzetti's T3 platform, with four enlarged flue-gas tubes designed to provide efficient heat exchange and simplified cleaning.

Self Cleaning System

The Self Cleaning System automatically cleans the pellet burn pot by periodically discharging combustion residues.

Complete Burning System

The Complete Burning System promotes more complete pellet combustion and helps minimise residual ash production.

Speedy Clean

The latest-generation Speedy Clean system provides front access to the flue-gas circuit, simplifying routine maintenance.

Quick Start

Quick Start is designed to reduce pellet ignition time and allow the stove to reach operating conditions more quickly.

Optional Pro2 hot-air ducting

Emily TC 9 can be equipped with the optional Pro2 ducting kit, allowing warm air to be distributed to another room through an Ø80 mm duct.

Performance

Emily TC 9 delivers 9 kW nominal heat output and can operate down to approximately 2.5 kW.

Efficiency is approximately 88% at nominal output and 91% at partial load.

The pellet hopper has a capacity of 22 kg, providing useful autonomy despite the stove's compact dimensions.

Palazzetti Ecofire Emily TC 9 technical specifications

Installation and chimney system

Palazzetti Emily TC 9 uses a rear Ø80 mm flue outlet and can draw combustion air directly from outdoors.

The chimney and any hot-air ducting system must be correctly designed and installed by qualified personnel in accordance with current regulations and Palazzetti's technical instructions.
