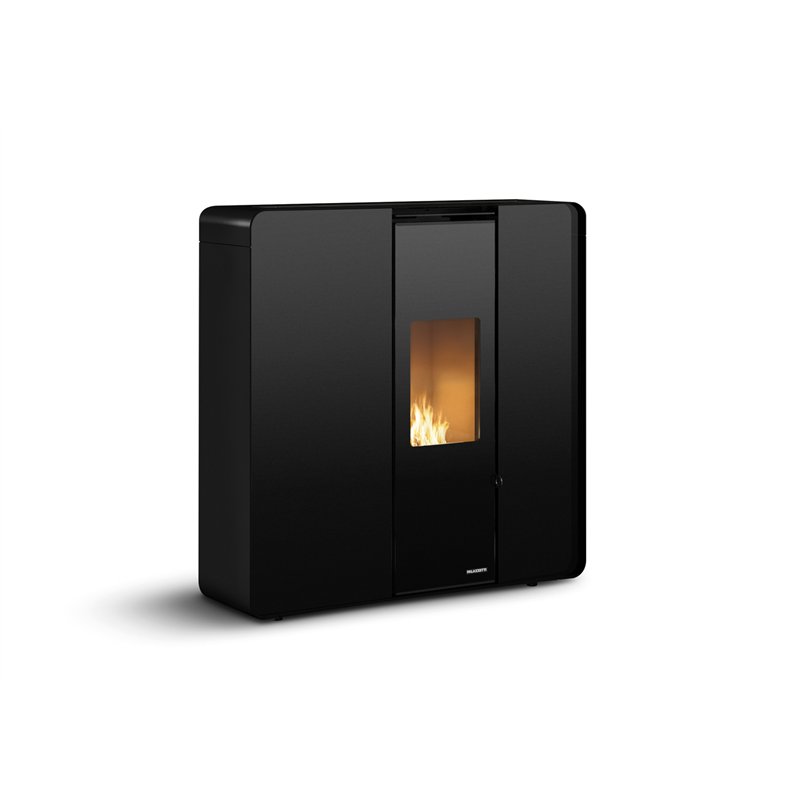

Palazzetti Ecofire Margot TC 9 is a 9 kW slim sealed pellet stove, only 30 cm deep and designed for flush-to-wall installation. It features a glass door, glossy black front and thick steel surround available in different finishes. MyDisplay+ with built-in Wi-Fi comes as standard, together with Zero Speed Fan, Self Cleaning System, Complete Burning System, Speedy Clean and Quick Start. Optional Pro2 hot-air ducting, CC50 sealed combustion, A+ energy class and Italian 5-star environmental rating.
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
Palazzetti Ecofire Margot TC 9 is a 9 kW slim sealed pellet stove designed to provide substantial heating output while requiring very little installation depth.
At only 30 cm deep, Margot can be installed flush against a wall and is particularly suitable for corridors, passage areas and narrow living rooms.
Standard equipment includes MyDisplay+ with built-in Wi-Fi, Zero Speed Fan, Self Cleaning System, Complete Burning System, Speedy Clean and Quick Start.
Margot TC 9 is designed as a genuine space-saving pellet stove.
Its depth of only 30 cm and flush-to-wall installation make it suitable for rooms where preserving usable floor space is important.
Margot TC 9 is a CC50 certified sealed pellet stove.
CC50 indicates that combustion chamber airtightness has been tested at a pressure difference of up to 50 Pa according to EN 16510.
Combustion air can therefore be supplied directly from outdoors rather than being taken from the installation room.
Margot TC 9 features MyDisplay+, Palazzetti's colour graphic display with built-in Wi-Fi as standard.
The system provides intuitive control of the stove and access to compatible connected functions within the Palazzetti ecosystem.
The variable-speed room-air fan features Zero Speed Fan, allowing forced ventilation to be completely disabled under the operating conditions specified by Palazzetti.
Margot TC 9 can be equipped with the optional Pro2 ducting kit.
Warm air can be distributed to another room through an Ø80 mm duct, with either a top or rear connection.
The Self Cleaning System automatically cleans the pellet burn pot by periodically discharging combustion residues.
The Complete Burning System promotes more complete pellet combustion and helps minimise residual ash production.
The latest-generation Speedy Clean system provides front access to the flue-gas circuit, simplifying routine maintenance.
Quick Start is designed to reduce pellet ignition time and help the stove reach operating conditions more quickly.
Margot TC 9 delivers up to 9 kW nominal heat output and can modulate down to approximately 2.8 kW.
Nominal efficiency is approximately 89%.
Pellet consumption ranges from approximately 0.63 to 2.06 kg/h, while the hopper has a capacity of 20 kg.
| Brand | Palazzetti |
| Range | Ecofire |
| Model | Margot TC 9 |
| Type | Slim sealed ventilated pellet stove |
| Fuel | Pellet |
| Nominal heat output | 9 kW |
| Minimum heat output | 2.8 kW |
| Nominal efficiency | 89% |
| Pellet consumption | 0.63 - 2.06 kg/h |
| Pellet hopper capacity | 20 kg |
| Flue gas temperature at nominal output | 252 °C |
| Flue gas flow at nominal output | 5.2 g/s |
| CO at nominal output, 13% O₂ | 100 mg/Nm³ |
| Dust at nominal output, 13% O₂ | 5 mg/Nm³ |
| OGC at nominal output, 13% O₂ | 2 mg/Nm³ |
| Flue outlet | Ø80 mm |
| Combustion air inlet | Ø60 mm |
| Required chimney draught | 12 Pa (±2) |
| Width | 101 cm |
| Depth | 30 cm |
| Height | 104 cm |
| Weight | 125 kg |
| Cladding | Glass door, glossy black front and steel surround |
| MyDisplay+ | Standard |
| Wi-Fi | Standard |
| Zero Speed Fan | Yes |
| Self Cleaning System | Yes |
| Complete Burning System | Yes |
| Speedy Clean | Yes |
| Quick Start | Yes |
| Balanced Door | Yes |
| Optional hot-air ducting | Pro2, Ø80 mm |
| Duct position | Top or rear |
| Airtightness | CC50 – certified at 50 Pa according to EN 16510 |
| Energy class | A+ |
| Italian environmental rating | 5 stars D.M. 186 |
Palazzetti Margot TC 9 uses an Ø80 mm flue outlet and an Ø60 mm combustion-air connection.
Palazzetti specifies a chimney draught of 12 Pa (±2 Pa).
The chimney system must be correctly designed and installation must be carried out by qualified personnel in accordance with current regulations and Palazzetti's technical instructions.
