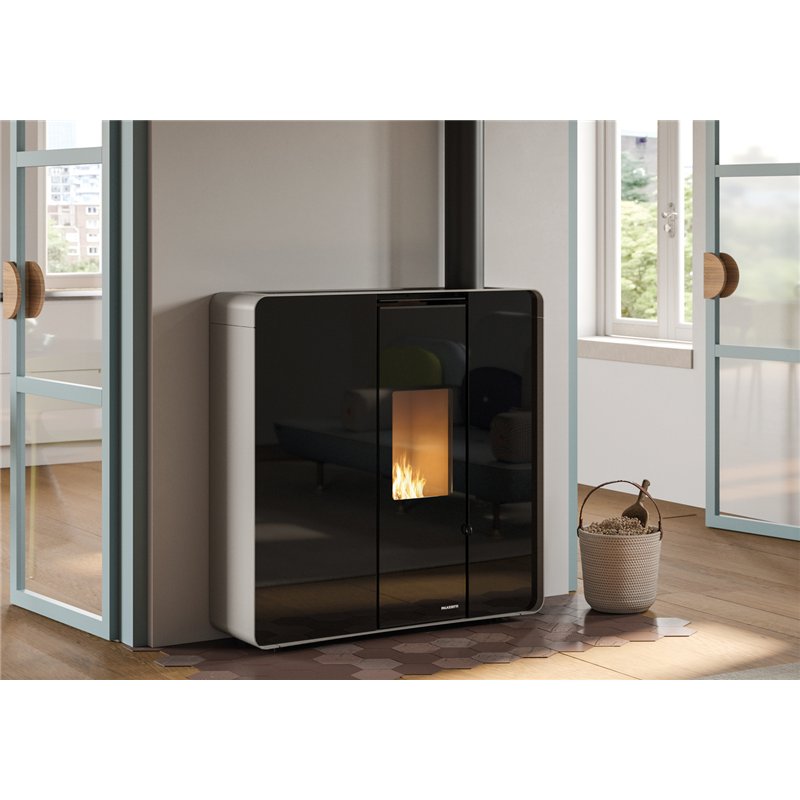

Palazzetti Ecofire Margot TC 6 US: slim sealed pellet stove with Wi-Fi and top coaxial outlet

Palazzetti Ecofire Margot TC 6 US is a 6.1 kW slim sealed pellet stove designed to combine a very shallow installation depth with refined styling and a compact top flue configuration.

At only 30 cm deep, Margot can be installed flush against a wall and is particularly suitable for corridors, passage areas and narrow living spaces.

The US – Upper Smoke version is specifically designed for an Ø80/130 mm top coaxial flue and combustion-air connection.

Why choose Palazzetti Margot TC 6 US

• 6.1 kW nominal heat output.
• Only 30 cm deep.
• Flush-to-wall installation.
• US – Upper Smoke configuration.
• Ø80/130 mm top coaxial flue and combustion-air connection.
• Sealed combustion technology.
• CC50 – certified airtightness at 50 Pa according to EN 16510.
• MyDisplay+ with built-in Wi-Fi.
• Glass fire door.
• Glossy black painted-metal front.
• Thick steel surround available in different finishes.
• Balanced Door.
• Zero Speed Fan.
• Self Cleaning System.
• Complete Burning System.
• Speedy Clean.
• Quick Start.
• Daily and weekly programming.
• Optional Pro2 Ø80 mm hot-air ducting.
• Top or rear ducting connection.
• 20 kg pellet hopper.
• A+ energy class.
• Italian 5-star environmental rating.

US – Upper Smoke: top coaxial connection

The US – Upper Smoke configuration distinguishes this model from the standard Margot TC 6.

The coaxial arrangement combines flue-gas evacuation and combustion-air intake in the same top connection.

The system uses an Ø80/130 mm configuration, with an Ø80 mm internal flue-gas outlet and an outer section used for combustion-air intake.

This arrangement can reduce the space required for rear flue components and makes particularly good use of Margot's slim design.

Only 30 cm deep

Margot TC 6 US is designed as a genuine space-saving pellet stove.

Its depth of only 30 cm, combined with flush-to-wall installation and a top flue connection, helps minimise the overall installation footprint.

CC50 sealed combustion: what does it mean?

Margot TC 6 US is a CC50 certified sealed pellet stove.

CC50 indicates that combustion chamber airtightness has been tested at a pressure difference of up to 50 Pa according to EN 16510.

Combustion air can therefore be supplied directly from outdoors rather than being taken from the installation room.

This is particularly useful in modern well-insulated buildings, low-energy homes and properties with controlled mechanical ventilation.

MyDisplay+ with built-in Wi-Fi

Margot TC 6 US features MyDisplay+, Palazzetti's colour graphic display with built-in Wi-Fi as standard.

The system provides intuitive control of the stove and access to compatible connected functions within the Palazzetti ecosystem.

Zero Speed Fan

The variable-speed room-air fan features Zero Speed Fan, allowing forced ventilation to be completely disabled under the operating conditions specified by Palazzetti.

This provides quieter operation and allows heat to spread more naturally through convection and radiation.

Optional Pro2 hot-air ducting

Margot TC 6 US can be equipped with the optional Pro2 ducting kit.

Warm air can be distributed to another room through an Ø80 mm duct, with either a top or rear ducting connection.

Self Cleaning System

The Self Cleaning System automatically cleans the pellet burn pot by periodically discharging combustion residues.

This reduces the frequency of routine manual cleaning.

Complete Burning System

The Complete Burning System promotes more complete pellet combustion and helps minimise residual ash production.

Speedy Clean

The latest-generation Speedy Clean system provides front access to the flue-gas circuit, simplifying routine maintenance.

Quick Start

Quick Start is designed to reduce pellet ignition time and help the stove reach operating conditions more quickly.

Pellet performance

Margot TC 6 US delivers up to 6.1 kW nominal heat output and can modulate down to approximately 2.8 kW.

Nominal efficiency is approximately 90%.

Pellet consumption ranges from approximately 0.63 to 1.38 kg/h, while the hopper has a capacity of 20 kg.

Palazzetti Ecofire Margot TC 6 US technical specifications

Installation and chimney system

Margot TC 6 US is designed for an Ø80/130 mm top coaxial connection, combining flue-gas evacuation and combustion-air intake.

Dedicated Palazzetti coaxial adapters are available according to the required installation configuration.

The chimney system must be correctly designed and installed by qualified personnel in accordance with current regulations and Palazzetti's technical instructions.
