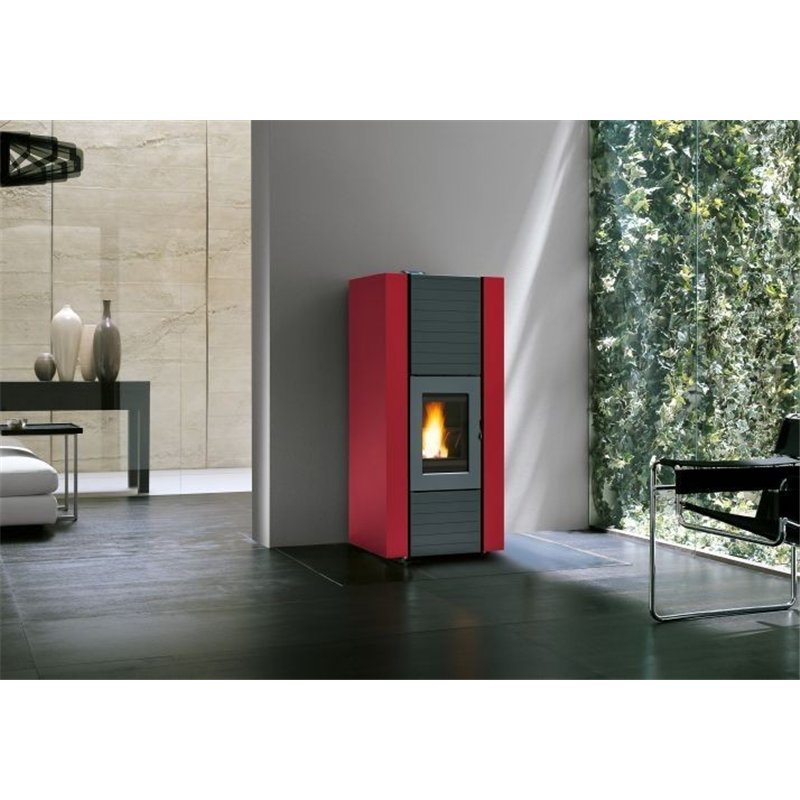

Palazzetti Ecofire Martina Idro Lux 13: 10.9 kW sealed hydro pellet stove

Palazzetti Ecofire Martina Idro Lux 13 is a sealed hydro pellet stove designed primarily to transfer useful heat to a central-heating water circuit.

Despite its commercial name “Martina Idro Lux 13”, the current Palazzetti configuration provides a 10.9 kW nominal heat output, of which 10.3 kW is transferred to water.

This makes it particularly suitable for systems where pellet heat is mainly required for radiators, fan coils, compatible radiant heating or a thermal storage system.

Key features

• 10.9 kW nominal heat output.
• 10.3 kW nominal output to water.
• CC50 sealed combustion.
• Direct outdoor combustion-air supply capability.
• Steel structure with metal cladding.
• Heavy cast-iron door and burn pot.
• Ceramic glass with air-wash system.
• Integrated hydronic unit.
• Integrated anti-condensation valve.
• Digital touch control panel.
• Daily and weekly scheduling.
• Integrated external thermostat / buffer-tank interface.
• Universal Gateway ready.
• Firebox with 8 flue-gas tubes and turbulators.
• Combustion Dynamic Control.
• Large ash pan.
• 25 kg pellet hopper.
• Pellet consumption approximately 0.82 - 2.40 kg/h.
• A++ energy class.
• Italian 5-star environmental rating.

10.9 kW total output and 10.3 kW to water

Martina Idro Lux 13 provides a 10.9 kW nominal total heat output, with approximately 10.3 kW transferred to the heating-water circuit.

Most of the useful heat is therefore directed to the hydronic system.

Hydro heating

Martina Idro Lux 13 is designed to heat the technical water of a compatible central-heating system.

Depending on the hydraulic design, it can be connected to radiators, fan coils, compatible radiant-heating systems, thermal storage or integrated multi-source systems.

It is not a fan-assisted hydro stove: its primary function is to transfer useful heat to water.

CC50 sealed combustion

Martina Idro Lux 13 is a CC50 certified sealed pellet stove.

CC50 means that combustion-chamber airtightness is verified at a pressure difference of up to 50 Pa according to EN 16510.

Combustion air can therefore be supplied directly from outdoors rather than being taken from the installation room.

Steel structure and cast-iron components

The stove features a steel structure with metal cladding, while the door and burn pot are manufactured from heavy cast iron.

The ceramic glass incorporates an air-wash system designed to help reduce deposits on the inner surface.

Integrated hydronic unit

Martina Idro Lux 13 includes an integrated hydronic unit comprising:

• circulation pump;
• safety valve;
• closed expansion vessel;
• pressure gauge.

The integrated equipment simplifies connection to the heating system but does not replace correct hydraulic system design and sizing.

Integrated anti-condensation valve

An integrated anti-condensation valve helps manage return-water temperature and reduce operating conditions that could promote condensation inside the heat exchanger.

8 flue-gas tubes with turbulators

The firebox uses 8 flue-gas tubes fitted with turbulators, designed to enhance heat transfer from the combustion gases to the hydronic circuit.

Combustion Dynamic Control

Combustion Dynamic Control helps maintain the correct balance between pellet fuel and combustion air under different operating conditions.

Controls and heating-system integration

Martina Idro Lux 13 features a digital touch control panel with daily and weekly scheduling.

An integrated interface is also provided for an external thermostat or buffer tank.

Smart-control compatibility

Martina Idro Lux 13 is designed for the optional Universal Gateway, providing access to compatible Palazzetti smart functions.

My Cli-Mate+ and Shape+ require Universal Gateway or MyDisplay+.

25 kg hopper and pellet consumption

The current configuration features a 25 kg pellet hopper.

Pellet consumption ranges from approximately 0.82 to 2.40 kg/h.

Technical specifications

Installation and hydronic system sizing

Martina Idro Lux 13 must be connected to a correctly designed hydronic heating system and a suitable chimney.

With 10.3 kW delivered to the water circuit, appliance selection should be based primarily on the actual hydronic heat demand rather than floor area alone.

A++ energy class, 5-star rating and incentives

Palazzetti Ecofire Martina Idro Lux 13 is rated A++ and achieves the Italian 5-star environmental rating under D.M. 186.

Palazzetti documentation refers to Conto Termico 3.0 for Martina Idro Lux 13. Eligibility depends on the type of project, the appliance being replaced and compliance with all applicable technical and administrative requirements.

For further information, see our guide to Conto Termico 3.0 and incentives for biomass heating appliances.
