Palazzetti Ecomonoblocco WT 60 3D is a 16.7 kW three-sided wood-burning built-in fireplace with panoramic flame view, Thermofix® firebox, Double Combustion and O₂Ring emission-control technology. Available as N natural, V ventilated with ET4W, or V EPlus with combustion and ventilation control plus motorised door opening. Energy class A.
Buy with confidenceWE TAKE ALL MEASURES TO MAKE YOUR PURCHASE SAFE
WE SHIP WORLDWIDEWE LEAVE THE DELIVERY OF ORDERS TO THE BEST COURIERS
Return policy(edit with the Customer Reassurance module)
Palazzetti Ecomonoblocco WT 60 3D is a three-sided built-in wood-burning fireplace designed to provide a panoramic view of the fire from the front and both sides.
It delivers a 16.7 kW nominal heat output, with 21.2 kW heat input.
| Version | Palazzetti code | Configuration |
| WT 60 3D N16 | 802572960 | Natural version |
| WT 60 3D V16 | 802572970 | Ventilated version with ET4W technology |
| WT 60 3D V16 EPlus | 802572980 | Ventilated EPlus version with combustion control, ventilation control and motorised door opening |
The three-sided design provides a wide view of the flames from multiple directions, making the fireplace particularly suitable for central installations, room dividers and open-plan interiors.
The combustion chamber uses Thermofix® refractory material, designed for the high temperatures generated by wood combustion.
The fireplace features Palazzetti's Double Combustion system for improved combustion management.
Integrated O₂Ring technology is designed to help reduce emissions generated during wood combustion.
The door features a robust sliding system designed to provide smooth opening and closing.
When the door is opened, the flue-gas bypass valve helps direct smoke towards the chimney during wood loading.
Combustion can be managed through separate primary and secondary air regulation.
Combustion air can be supplied directly from outside the building when correctly designed by the installer.
The WT 60 3D N16 is the natural configuration without an integrated forced-air ventilation system.

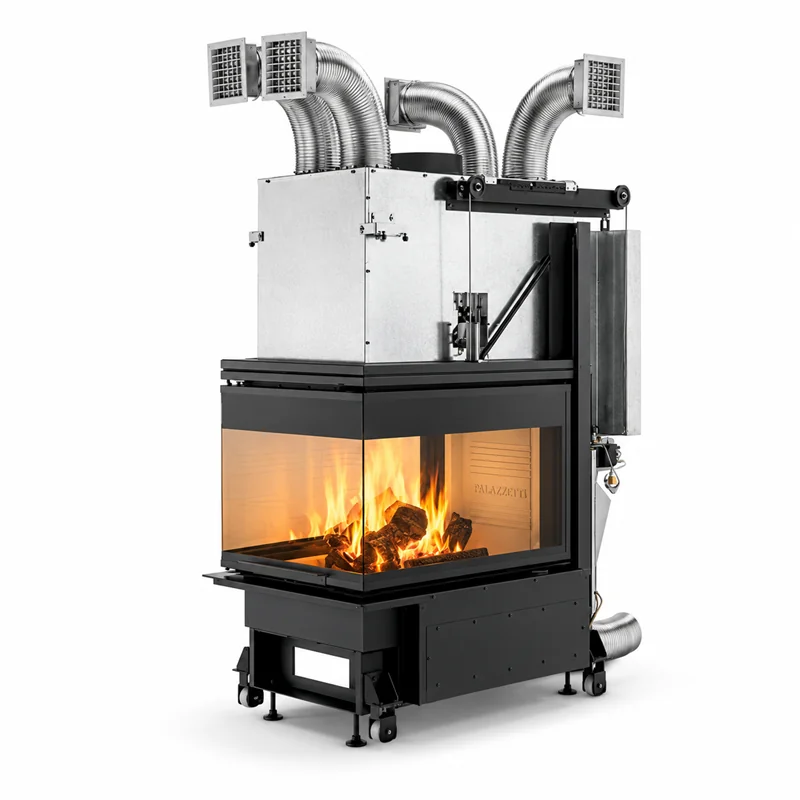

The WT 60 3D V16 includes a ventilation casing, radial fan, control unit, four adjustable outlets and flexible ducts with ET4W technology.
The WT 60 3D V16 EPlus adds ET4W combustion and ventilation management together with motorised door opening.
| Brand | Palazzetti |
| Model | Ecomonoblocco WT 60 3D |
| Fuel | Wood |
| Heat input | 21.2 kW |
| Nominal heat output | 16.7 kW |
| Efficiency | 78% |
| Dust, 13% O₂ | 29 mg/Nm³ |
| OGC, 13% O₂ | 49 mg/Nm³ |
| Recommended wood load | 5 kg |
| Dimensions W × D × H | 68 × 125 × 163 cm |
| Weight | Approx. 460 kg |
| Flue outlet | Ø250 mm |
| Firebox | Thermofix® |
| Fire view | Three-sided |
| Emission technology | O₂Ring |
| Combustion system | Double Combustion |
| Energy class | A |
| Ecodesign 2022 | Yes |
The three-sided design requires careful planning of the fireplace surround, supporting structure, chimney, combustion-air supply and maintenance access.
The appliance uses a Ø250 mm flue outlet.
International Shipping & Warranty
Please check product compatibility with a local installer before purchasing. For any further information, please contact our customer service. |
