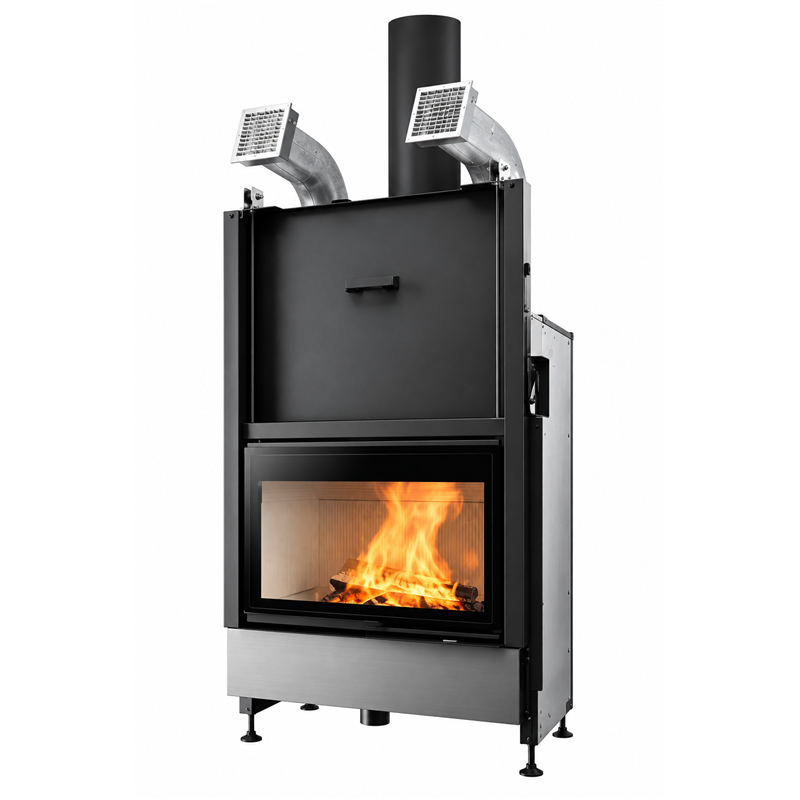

Palazzetti Ecomonoblocco WTX 80 Front: 17.9 kW wood-burning fireplace

Palazzetti Ecomonoblocco WTX 80 Front is a high-performance built-in wood-burning fireplace designed for custom fireplace installations.

According to the 2027 Palazzetti price list, the current WTX 80F N18 delivers a 17.9 kW nominal heat output, with 20.7 kW heat input and 86% efficiency.

Key features

• 17.9 kW nominal heat output.
• 20.7 kW heat input.
• 86% efficiency.
• Thermofix® firebox.
• Natural convection and radiant heating.
• Robust sliding-door system.
• Glass tilts approximately 40° for easier cleaning.
• Two adjustable hot-air outlets with fittings and flexible extensions.
• Removable ash pan.
• Flue-gas bypass valve.
• Primary and secondary air regulation.
• External combustion-air capability.
• Optional forced ventilation.
• Ø200 mm flue outlet.
• A+ energy class.
• Ecodesign 2022 compliant.
• Italian 5-star environmental rating.

Natural convection and radiant heating

In its standard N18 configuration, WTX 80 Front distributes heat by natural convection and radiation, without requiring forced ventilation.

Optional forced ventilation

A dedicated Palazzetti WTX radial fan kit can be added when faster hot-air distribution is required.

ET4W smart ventilation control

The optional ET4W control unit can manage the ventilation system and supports Wi-Fi control through the Palazzetti App.

Thermofix® firebox

The combustion chamber uses Thermofix® refractory material, developed for the high temperatures generated by wood combustion.

Sliding door and easier glass cleaning

The fireplace features a robust sliding-door mechanism designed for smooth operation.

The glass can tilt approximately 40 degrees to simplify access to its internal surface during cleaning.

Flue-gas bypass valve

When the door is opened, the flue-gas bypass valve helps direct smoke towards the chimney during wood loading.

Primary and secondary air control

Combustion can be managed through separate primary and secondary air regulation.

Technical specifications

Optional equipment

• WTX radial fan kit;
• Glass control unit;
• ET4W control unit;
• two-outlet duct kit;
• plasterboard finishing frame;
• wheel kit;
• decorative cast-iron log holder.

Energy performance and incentives

WTX 80 Front is rated A+, complies with Ecodesign 2022 requirements and achieves the Italian 5-star environmental rating.

Palazzetti documentation refers to Conto Termico 3.0 for WTX 80F N18. Actual eligibility depends on the type of installation, the appliance being replaced and compliance with all applicable requirements.

For further information, see our guide to Conto Termico 3.0 and incentives for biomass heating appliances.

Installation

The appliance uses a Ø200 mm flue outlet. The chimney, external combustion-air supply, optional ventilation and hot-air distribution system must be correctly designed before the fireplace surround is completed.
