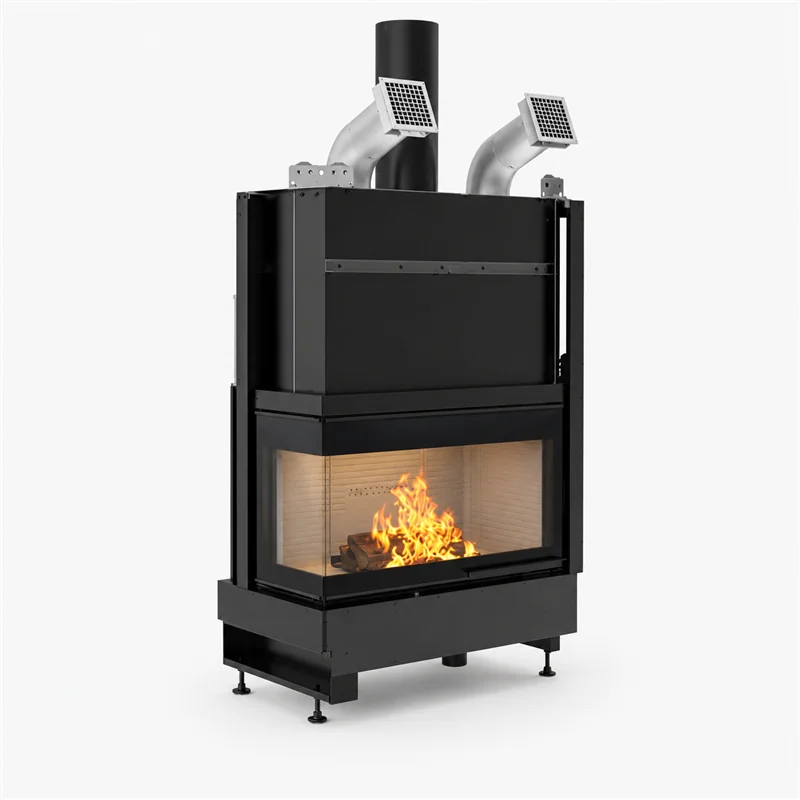

Palazzetti Ecomonoblocco WTX 90 Corner: left or right version

Palazzetti Ecomonoblocco WTX 90 Corner is a large two-sided wood-burning built-in fireplace designed for corner installations.

It is available in two configurations:

• WTX 90L N19 – glazed corner on the left;
• WTX 90R N19 – glazed corner on the right.

Both versions share the same technical specifications and differ only in the orientation of the side glass.

Key features

• 19.1 kW nominal heat output.
• 22.3 kW heat input.
• 85.2% efficiency.
• Thermofix® firebox.
• Corner door with two coupled glass panels.
• Natural convection and radiant heating.
• Sliding-door system.
• Door opening for easier glass cleaning.
• Two adjustable hot-air outlets with fittings and flexible extensions.
• Removable ash pan.
• Flue-gas bypass valve.
• Primary and secondary air control.
• External combustion-air capability.
• Optional forced ventilation.
• Ø200 mm flue outlet.
• A+ energy class.
• Ecodesign 2022 compliant.
• Italian 5-star environmental rating.

Corner glass configuration

The WTX 90 Corner features two coupled ceramic-glass panels that provide a wide view of the fire from two directions.

Natural convection and radiant heating

The N19 version operates by natural convection and radiation as standard, without requiring a fan.

Optional forced ventilation

A dedicated Palazzetti radial fan kit can be added when faster hot-air distribution is required.

ET4W smart ventilation control

The optional ET4W control unit allows the ventilation system to be managed via Wi-Fi through the Palazzetti App.

Thermofix® firebox

The combustion chamber uses Thermofix® refractory material, developed for the high temperatures generated by wood combustion.

Sliding corner door

The door uses a robust sliding system designed to provide smooth opening and closing.

Flue-gas bypass valve

When the door is opened, the flue-gas bypass valve helps direct smoke towards the chimney during wood loading.

Primary and secondary air control

Combustion can be managed through separate primary and secondary air regulation.

Technical specifications

Energy performance and incentives

Both versions are rated A+, comply with Ecodesign 2022 requirements and achieve the Italian 5-star environmental rating.

Palazzetti documentation refers to Conto Termico 3.0 for WTX 90L N19 and WTX 90R N19. Actual eligibility depends on the type of installation, the appliance being replaced and compliance with all applicable requirements.

For further information, see our guide to Conto Termico 3.0 and incentives for biomass heating appliances.

Installation

The correct orientation must be selected before ordering: L = left glazed corner, R = right glazed corner.

Both versions use a Ø200 mm flue outlet.
