L’Europea HE 200 Electric Hoist – 200 kg, 25 m Rope, 750 W
Professional L’Europea HE 200 electric hoist with 200 kg lifting capacity, 750 W single-phase motor and Ø4 mm wire rope with 25 m working length. 23 m/min lifting speed. Supplied with upper tie rod and 2 clamps.
TRUSTED EXPERIENCE SINCE 1913Over 100 years of experience in hardware, tools and technical products.
PHYSICAL STORE & CUSTOMER SUPPORTWe also have a physical store in La Loggia (Turin): real people ready to help before and after your
ORDERS PREPARED WITH CAREWe prepare every order with care
Description

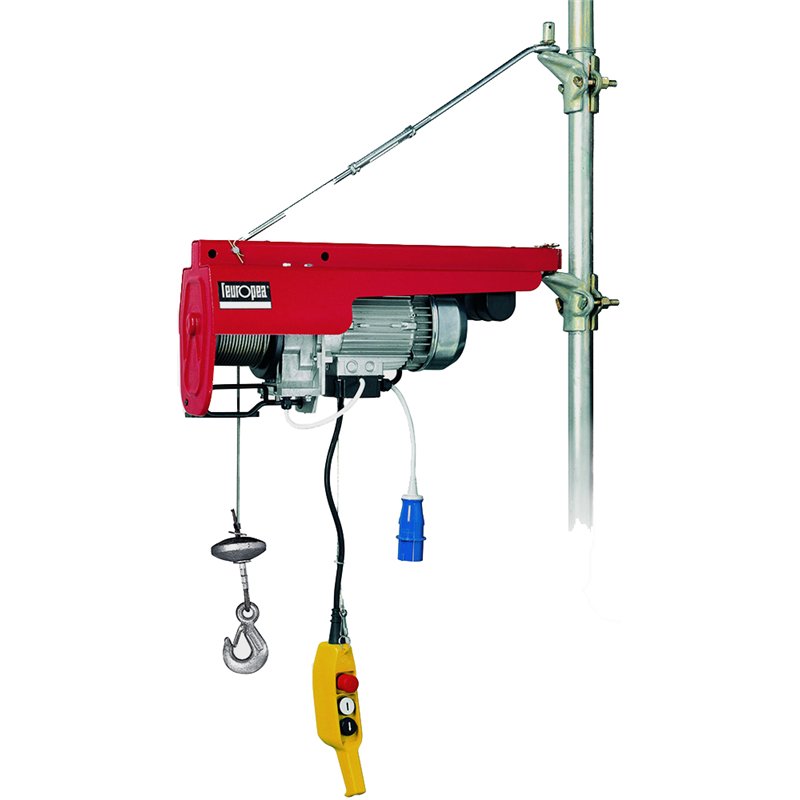

L’Europea HE 200 electric hoist
The L’Europea HE 200 is a professional electric hoist designed for the vertical lifting of materials on construction sites, during maintenance work and in professional applications requiring a 200 kg capacity and long lifting travel.
Version HE200S25P8 uses a 25 m wire rope and provides a lifting speed of 23 m/min. Standard equipment includes one upper tie rod and two mounting clamps.
25 m working length and 23 m/min lifting speed
The standard 25 m working length makes the HE 200 suitable for lifting materials over significant vertical distances. The HE 200 range supports a maximum working length of 35 m with the appropriate configuration.
Standard equipment and mounting options
The standard HE 200 includes two clamps and one upper tie rod.
L’Europea also offers dedicated mounting accessories including telescopic mast attachment, underneath-mast attachment, sliding trolley, trestle, scaffold attachment and bucket racks.
L’Europea HE 200 technical specifications
| Brand | L’Europea / Nidec TEA |
| Model | HE 200 |
| Version code | HE200S25P8 |
| Power supply | Single phase |
| Voltage | 220 V |
| Frequency | 50 Hz |
| Motor power | 750 W |
| Maximum capacity | 200 kg |
| Working length | 25 m |
| Maximum working length | 35 m |
| Lifting speed | 23 m/min |
| Wire rope diameter | Ø4 mm |
| Hoist weight | 37 kg |
| Dimensions | 690 × 210 × 350 mm |
| Standard equipment | 1 upper tie rod + 2 clamps |
Suitable applications
The HE 200 is suitable for the vertical lifting of materials in professional and construction applications where a 200 kg capacity, long lifting travel and high lifting speed are required.
Frequently asked questions about the L’Europea HE 200
What is the maximum lifting capacity?
The HE 200 can lift up to 200 kg.
What is the working rope length?
Version HE200S25P8 provides 25 m working length. The range supports configurations up to 35 m.
What is the lifting speed?
Lifting speed is 23 m/min.
What is included with the standard version?
The standard HE 200 includes one upper tie rod and two clamps.
Are the other mounting systems included?
No. Telescopic attachments, underneath-mast attachment, trolley, trestle, scaffold attachment and other accessories are available separately.
Can it be used to lift people?
No. The HE 200 is intended exclusively for the lifting of materials.
L’Europea code: HE200S25P8
Matteoda reference: 708.500420
Install the hoist on a suitably rated supporting structure and always check mounting, wire-rope condition and load weight before use.
